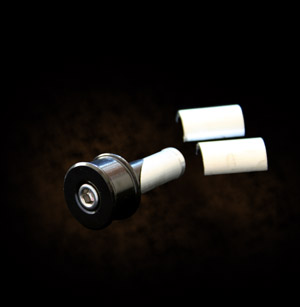

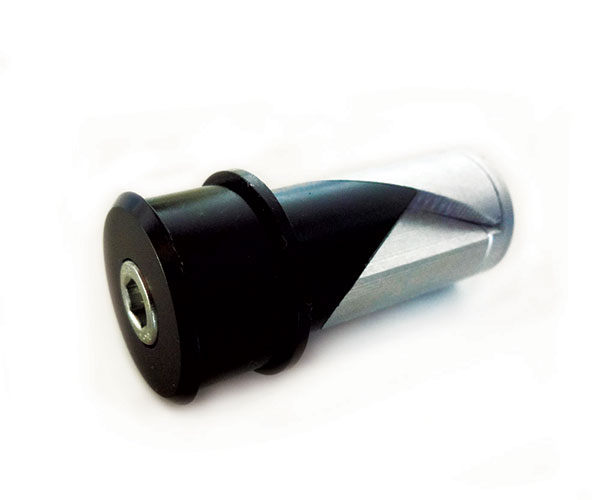

This is the Billet Internal Adapter for all Bar End Mirrors. We make
this assembly to offer an alternative to the basic Bar End Mirror mount.*
The 7/8" Adapter kit assembly will work on bars with internal diameters as
small as 12mm (.475") and as large as 19mm (.750"). This range covers
virtually all aluminum and steel bars/clip-ons (so everything except Harley's, and Indian's and other such bikes).
The 1" Adapter kit assembly will work on bars with internal diameters as
small as 18.3mm (.720") and as large as 22.25mm (.876").
*Whenever possible we recommend mounting the Hindsight Billet Bar End Mirror
with the basic mount which clamps to the outer diameter of a 7/8"
handlebar/clip-on. Using the basic mount is the bar end mirror solution using
the fewest parts, facilitates the easiest installation and removal, is the
lightest weight, and provides for the most secure bar end mirror mounting. Use
of the basic mount requires having 10mm (3/8") of bare bar outboard of the
grip/throttle assembly. Before purchasing the mirror adapter, try moving your
grips and controls inboard (away from the end of the bar). In many
applications, the mirror can be mounted with the basic mount.
Sold Individually
