RhinoMoto Bar Ends For Bar End Mirrors for Yamaha MT / FZ/ FZR / XSR Models

These bar ends are designed specifically for Yamaha's that have stock bar ends that screw into the bars with M16 threads, such as the FZ, FZR, XSR and MT.

GEN-1 is for CRG or similar bar end mirrors.

The all new GEN-2 version allows for use of all type of bar end mirrors by eliminating the inner collar, you can now slide mirrors that do not spit in two into place before install!

Some manufacturers make brackets that do not open all the way up, but instead have an almost completely circular opening with a slot. These brackets get pinched down when the bolts are tightened to clamp onto handlebars. Motogadget and Rizoma are two such manufacturers and we call this type of bracket a “closed style”. Unfortunately, these clamps will not work with our original designs because the outer diameter of the mounts is too large for the clamps to slide over to reach the slot. RhinoMoto has started releasing what we call our Gen 2 kits to work with these mirrors. The bodies are two pieces so that the mirror can slide onto the  smaller diameter section from the rear. A dress ring is included so that when assembled these kits look exactly like the original kits. The use of the dress ring is optional and the mounts are usable without them if desired.

All Gen 2 kits also work with open clamp mirrors. They are compatible with all of our spacers and adapters so that we can easily produce a Gen 2 version of any existing kit.

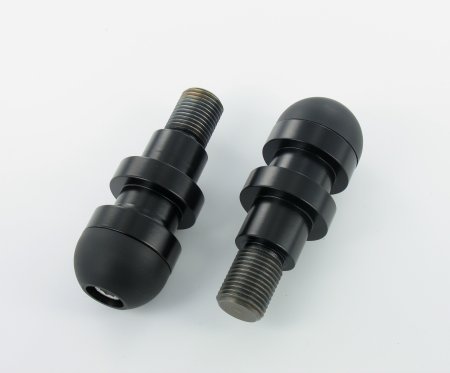

This 2-piece design consists of bodies CNC machined from billet steel, replaceable polymer buttons that act as the sliding surface and a slot to fit CRG or similar bar end mirrors. They utilize the same threads as the stock bar ends and an 8mm hex recess is located at the end of the body under the button so that that a hex key socket can be used to torque these to factory spec.

The button then screws onto the body. Once mounted these have the same appearance as our other bar ends. This kit is offered in black powder coated and stainless steel finishes with a choice of flat, round or tapered buttons.

Product weight: 6.8 ounces (193 grams) per side.

Kit contains 2 threaded mirror mounts with buttons, stainless fasteners for the buttons, installation instructions and 2 RhinoMoto logo stickers.
