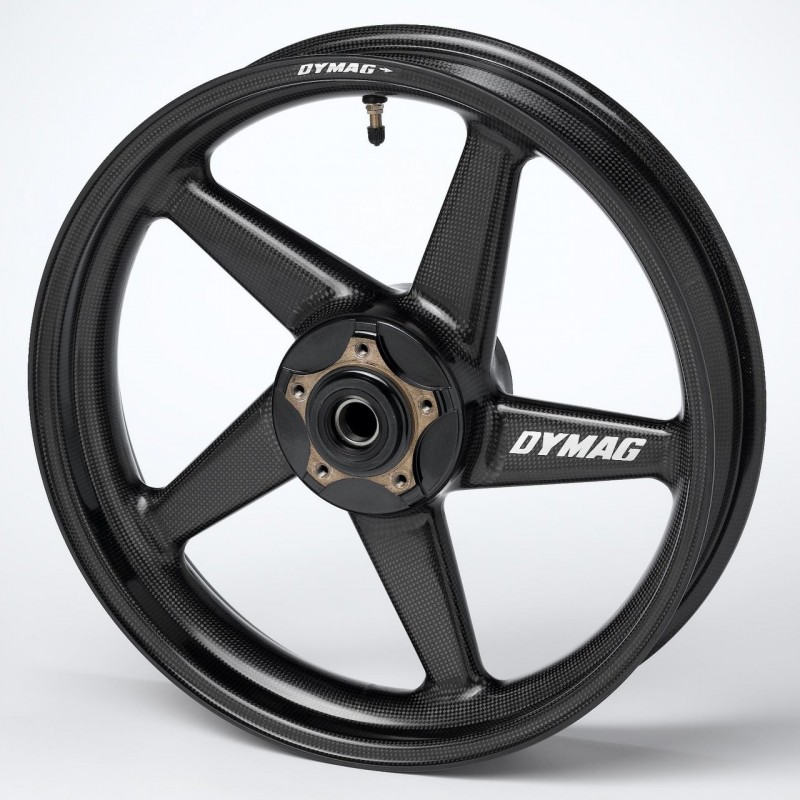

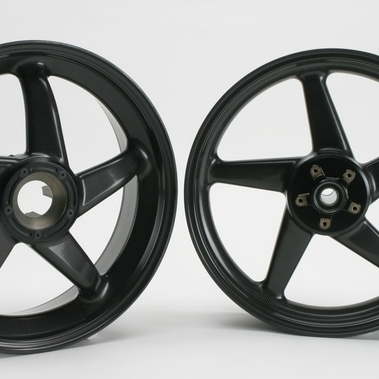

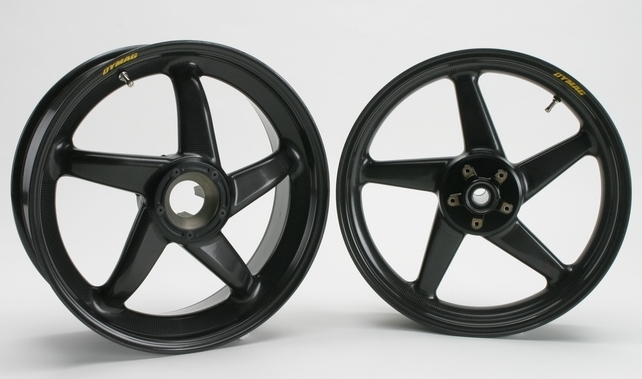

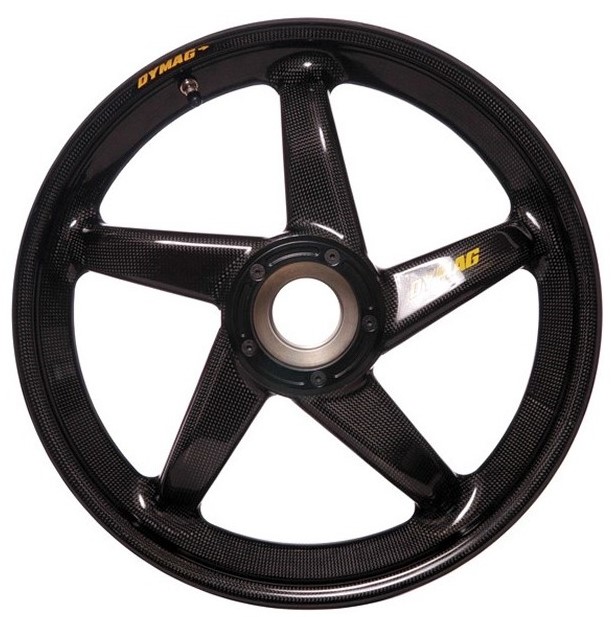

Dymag CA5 EVO Carbon Wheels for Single Sided Swingarm
- Brand: Dymag
- Product Code: CA5-SSSA
- Availability: 4-6 Weeks
- Stock Quantity: 0
All Carbon. All Performance.
The Legend Returns.
THE ORIGINAL CARBON RACE WHEEL, REIMAGINED.
DYMAG® has been pioneering carbon wheel technology since the 1990s, when it introduced the world’s first road-certified carbon composite motorcycle wheel.
The CA5 took that expertise and turned it into DYMAG’s definitive all-carbon five-spoke race wheel, chosen by leading teams in British Superbikes, Thundersport and specialist hill climbs such as Pikes Peak, and proven to cut seconds from lap times in independent magazine tests at the time.
Re-engineered for a new era.
The all-new CA5 Evo is not a simple reissue. It is a ground-up redevelopment using DYMAG’s latest carbon technology.
- New manufacturing process and tooling
- Revised construction for increased stiffness
- Updated materials and lay-up for higher impact resistance
- Available at launch for double-sided swingarm applications, with wheels designed for single-sided bikes available soon after.
CA5 Evo Technical Specifications
Materials and Manufacturing Process:
Carbon composite epoxy construction using a multi-axial structural lay-up. Manufactured using a Resin Transfer Moulding (RTM) process with either a 6K plain weave or 3K 4/4 weave surface finish.
Wheel Sizes (Diameter x Width):
Front: 17 x 3.5.
Rear: 17 x 5.5, 17 x 6.0
Wheel Weight:
Front: 2.5 – 2.7 kg finished weight (depending on application).
Rear: 4.6 – 4.8 kg finished weight (depending on application).
Weight Savings vs OEM Wheels:
Front: typically 23% lighter than forged aluminium, 30% lighter than cast aluminium.
Rear: typically 23% lighter than forged aluminium, 45% lighter than cast aluminium.
Moment of Inertia Reduction:
Front: typically 26% lower than forged aluminium, 34% lower than cast aluminium.
Rear: typically 26% lower than forged aluminium, 51% lower than cast aluminium.
Load Ratings:
Front: 17 x 3.5 – 236 kg
Rear: 17 x 5.5 – 365 kg
Rear: 17 x 6.0 – 387 kg
Compatibility:
Compatible with approximately 70% of the current DYMAG® catalogue.
Contact us to confirm compatibility with your make/model.
Certification:
JASO T203-85 certified.
(TÜV certification is in process)
Intended Use:
Road, track and race applications.
