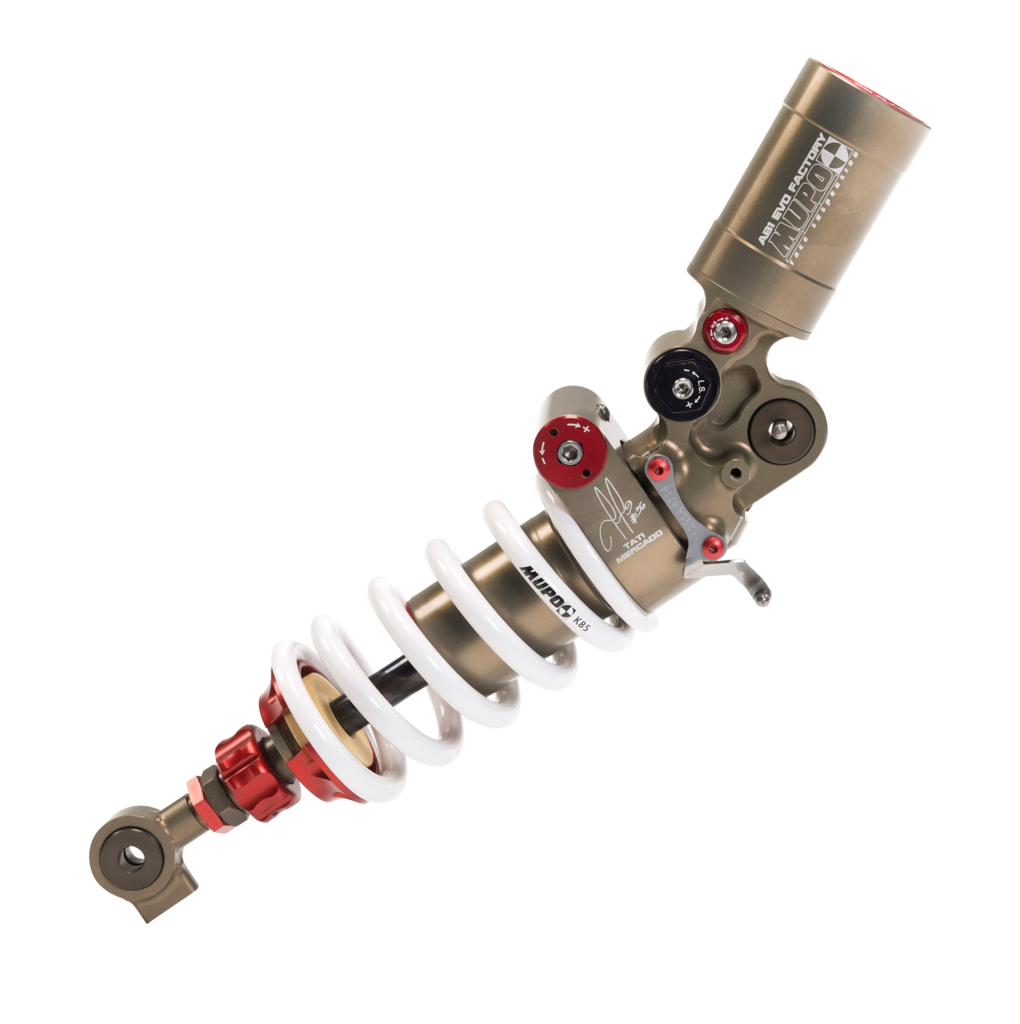

Mupo Suspension AB1 Evo Factory Rear Shock for Aprilla RSV4 RF / RR 15-20

Performance without Compromise.

After years at the forefront of the most prestigious competitions in the worlds, we dedicated to channel all our know-how in the most technological version of the AB1: the AB1 Evo Factory, in the same specs used by the WSBK Champion Leandro “Tati” Mercado in the 2014 SuperStock 1000 season.

The AB1 Factory is characterised by the Bladder technology inside the reservoir, which significantly increases feel and sensibility and allows continuity and reliability of damping from the first to the last lap.

Completely made of Ergal 7075, aluminium alloy taken for the aerospace industry, the Factory shock integrates lightness, resistance and a high heat coefficient – all contributing to an excellent damping in the most extreme conditions.

The sophisticated hydraulic, tested and approved by riders such as Alex Barros and Michele Pirro, is characterized by a ø 46mm piston CNC machined, which gives more grip and control to the rider in braking, apex and exit of the curve.

Completely adjustable in high and low speed compression, rebound, spring preload and length, the AB1 Factory is the reference point for the rider that wants to find the ideal setting and have a high-performance motorcycle.

To achieve the top performance from your shock, we recommend upgrading to the Hydraulic Preload optional.

Technical Specifications

• Bladder Technology
• Ergal 7075 cyclinder ø46 mm CNC machined
• Piston rod ø16 mm PVD coated
• Head and joints in Ergal 7075
• Aeronautic oil with temperature stability
• Mupo Race Suspension laser branding

Adjustment Features

• Rebound 40 click
• Low speed compression 24 click
• High speed compression 10 click
• Manual spring preload
• Hydraulic preload (optional)
• Length adjustment 9mm

Additional Information

Thanks to the wide range of available Mupo springs, it’s possible to customize the suspension based on the rider’s weight and riding style at the time of the order.

Displayed images are for illustrative purposes only. Being handcrafted one by one and given the many different configurations, there can be differences between products depending on the application.

All the products in our catalogue are completely rebuildable and have a warranty of 2 years. This can be stretched up to 6 years by servicing the suspension periodically, as per the operation and maintenance booklet.
