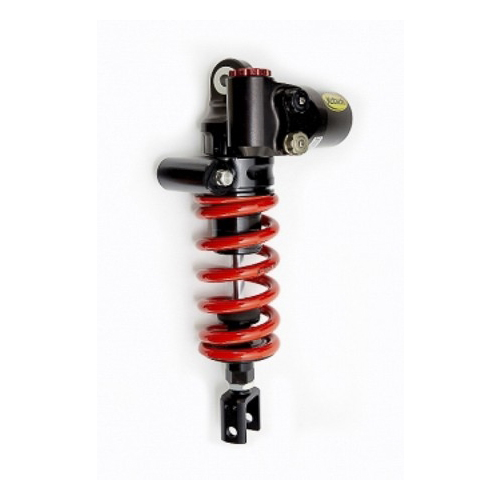

K-Tech 255-017-230-015 Suspension 35DDS Pro Rear Shock for the Suzuki SV650 '17-19


  • Brand: K-Tech
  • Product Code: 255-017-230-015
  • Availability: 2-3 Days
  • Stock Quantity: 0


DDS Pro RACE ONLY! Requires removal of ABS unit for fitment

The K-Tech DDS "Pro" rear shock has been designed for use at the highest level of racing and developed in major championships around the world. Like all other K-Tech products it has been designed and manufactured in the UK using the latest design software and highest grades of materials. As you would expect from a high-quality racing product, the DDS "Pro" features compression and rebound damping adjustment, length adjustment and hydraulic spring preload adjustment. It also features our unique ByPass Valve adjuster which controls both compression and rebound damping adjustment to assist with chassis control at low velocity shock movement to enhance tire feel and grip. The DDS system uses a smaller piston rod which keeps the system more stable over a wider temperature range due to its small displacement. Damping is controlled by a 32mm piston which allows the use of larger shims for improved feel.


  • 5 way adjustable
  • 32 clicks compression adjustment
  • 32 clicks rebound adjustment
  • 16 clicks BPV adjustment
  • Hydraulic spring preload adjustment
  • Length adjustment
  • CNC machined components
  • DDS technology
  • Potentiometer mounting points
  • Wide range of spring rates available

Used at the highest levels of racing including British Superbike and Isle of Man TT

Make Model Years
suzuki sv650 2016 - 2021
suzuki sv650x 2018 - 2020
