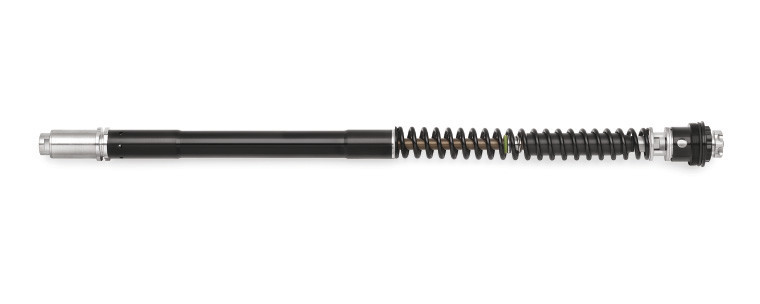

Aimed at sport bikes and maxi naked for track and fast-road use. Hydraulic cartridge kit that completely replace all the existing original fork internals allowing a full adjustment of Compression, Rebound, Preload.
Normally provided as symmetric system with compression valve units on the bottom. In case of asymmetric system the cartridge is provided using the innovative ?quad-valve system?.
In any case it allows a great range of adjustment as required under racing conditions. Performance, handling, stability and damping sensitivity are significantly increased.
Each adjustment click makes a difference to the damping and can be felt. All components are made from Alu alloy with oxidation surface treatment with the focus to ensure long wear life. The kit is supplied with specific high sliding fluid. It is fully and easily overhaul for proper and regular maintenance.
The cartridge kit is supplied ready to fit and no modification to the original fork is required for the assembly.
? Fork cartridge cylinder D.25 mm in Alu alloy Al 7075, with anti-friction lapping and oxidation surface treatment.
? Pumping rod D.12 mm in Alu alloy Al 7075, with anti-friction lapping and hard oxidation surface treatment.
? Set of Compression and Rebound valves, supported by oilless slide bearings, machined from Aluminum billet, with its own dedicated shims stack for a total hydraulic flows control. No modification to the original fork is required for assembly the fork kit. It is completely overhauled for a proper and regular maintenance.
? Adjustments:
? Spring preload, mounted on axial roller bearings, with specific clicks.
? Rebound unit with specific clicks.
? Compression unit with specific clicks. (valve set in place of the original).
? Bottom spacer available in different lengths, to fit correctly on the different front fork models. Easy to replace the hydraulic cartridge without de-mounting the fork.
All components of the cartridge are made of Aluminum alloy and subjected to anodizing surface treatment, with the objective to contain the weights and to ensure long-lasting wear.
Fork kit supplied with specific fluid (Motorex Fork Oil)..
? Set of linear spring in Si-Cr alloy Steel, available in different rates, specific for the different bike models and the driver weight, for a total custom.
