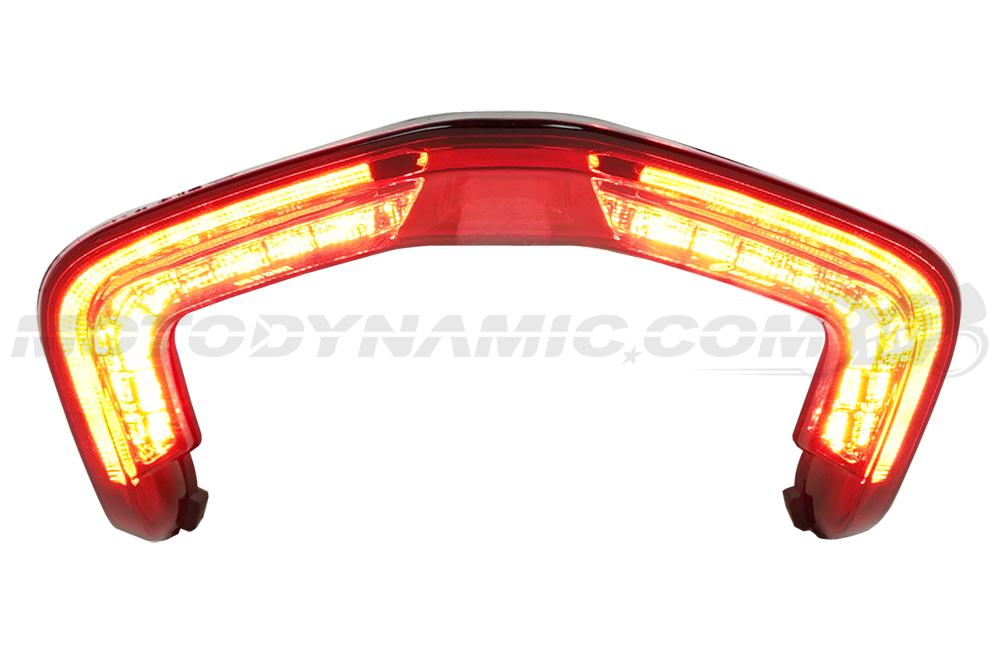

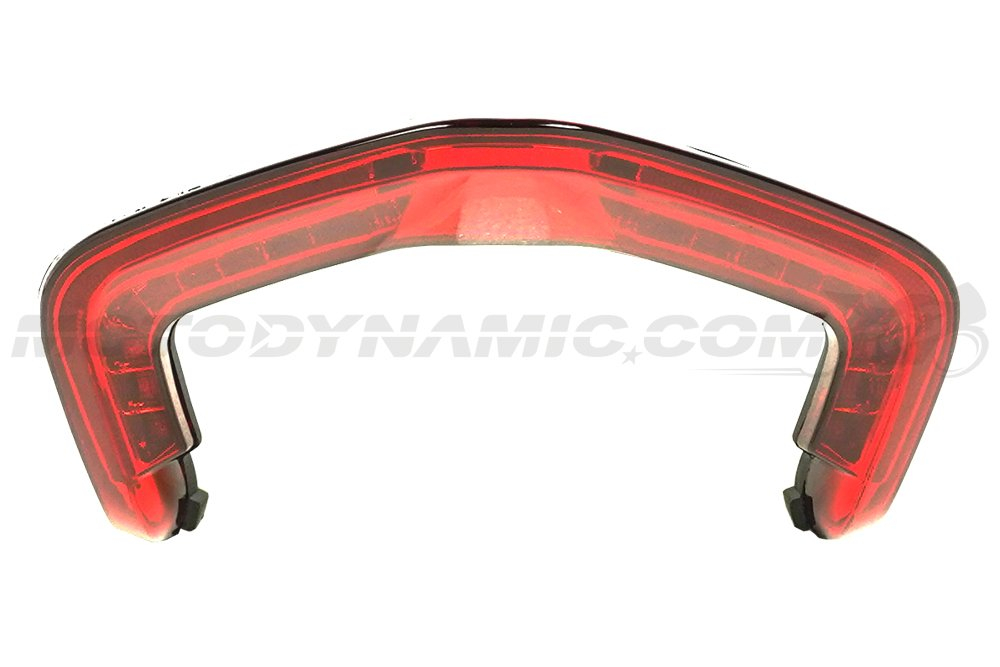

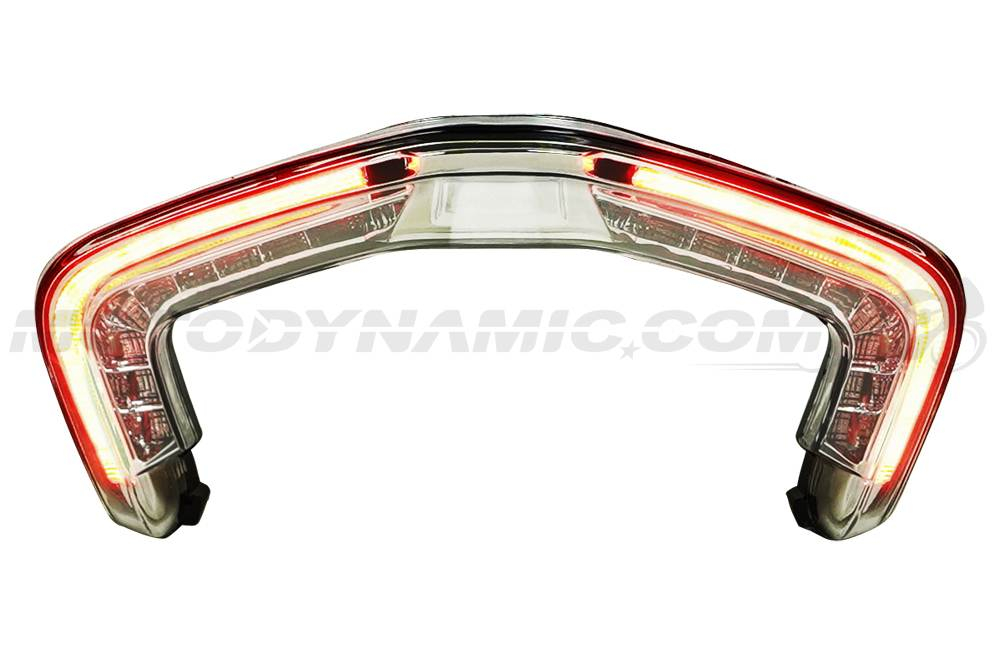

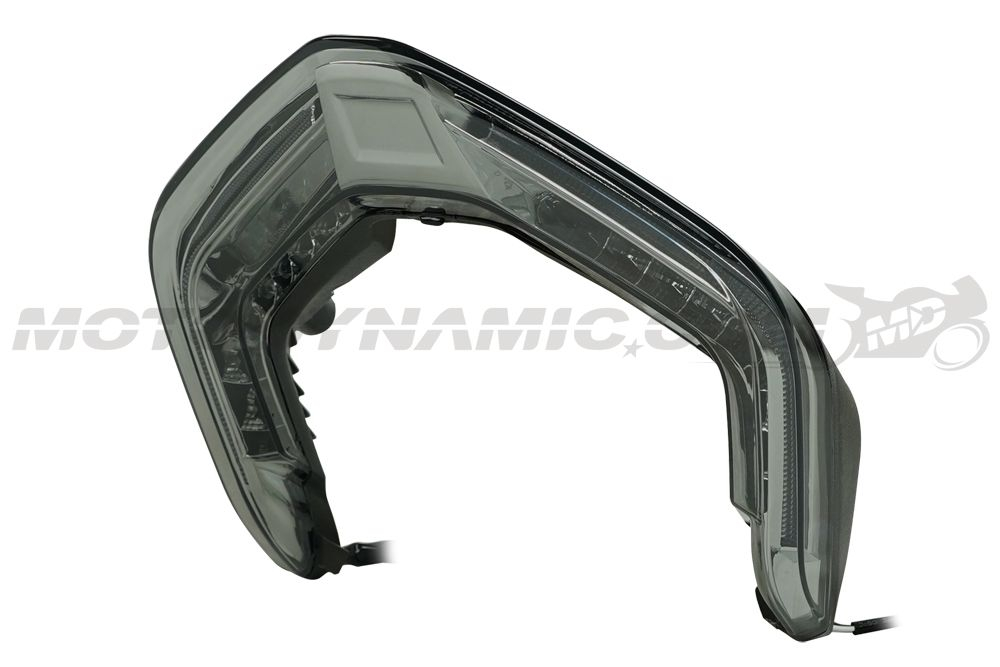

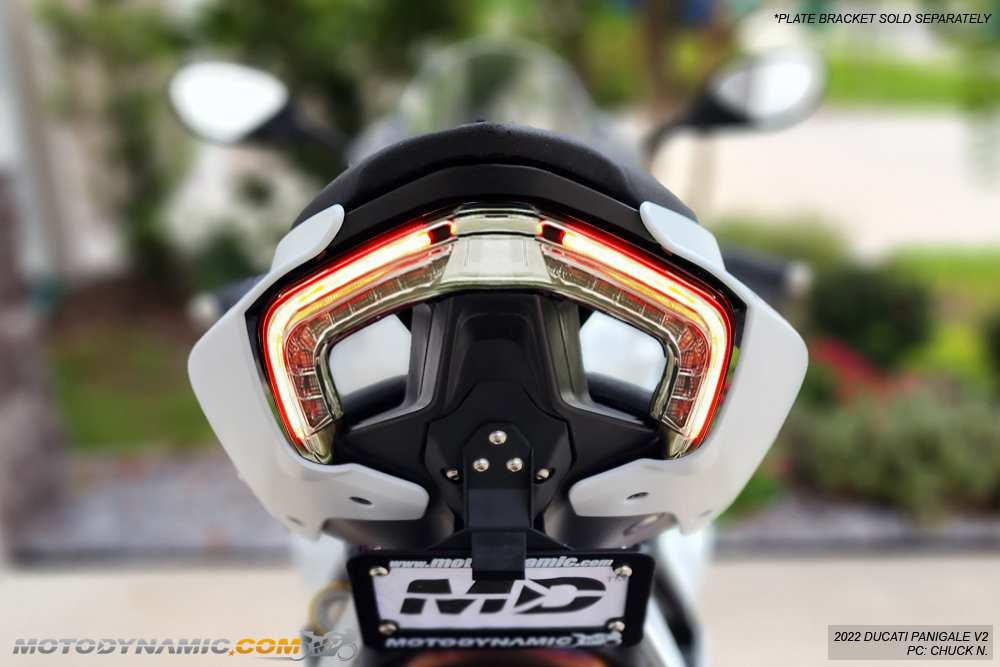

Motodynamic Sequential Integrated Taillight for Ducati Panigale V4 (18-24)

2018-2024 Panigale V4 LED Tail Lights with Integrated Sequential LED Signals

Dimensions:

• 240mm x 75mm x 250mm (Width x Height x Depth) measured at normal mounting position including housing.

Features:

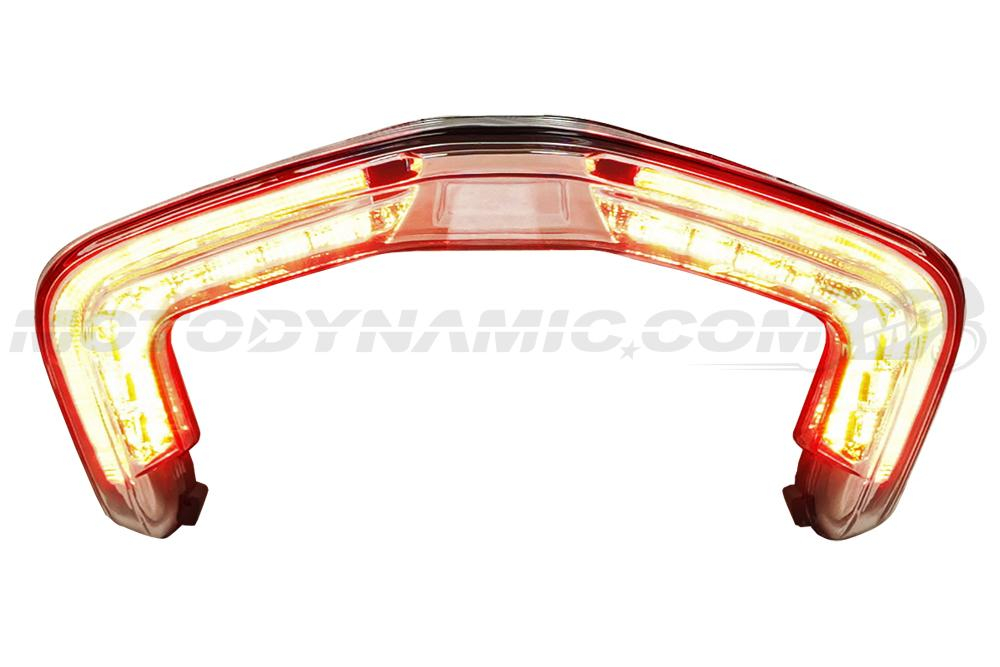

• 16 ultra bright red SMD LEDs for DRL (light bars)
• 18 ultra bright red/yellow dual mode SMD LEDs for brake and turn signals
• Programmable features:
  • ON/OFF Stop Alert
  • ON/OFF Sequential signals
  • ON/OFF Reverse sequential signals

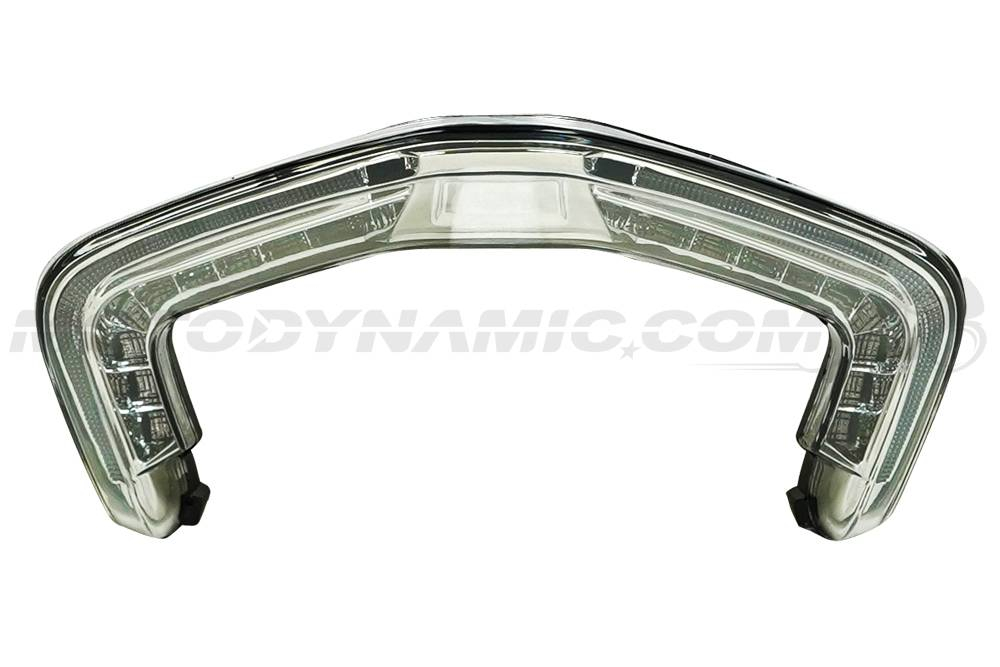

• Reflective inner housing

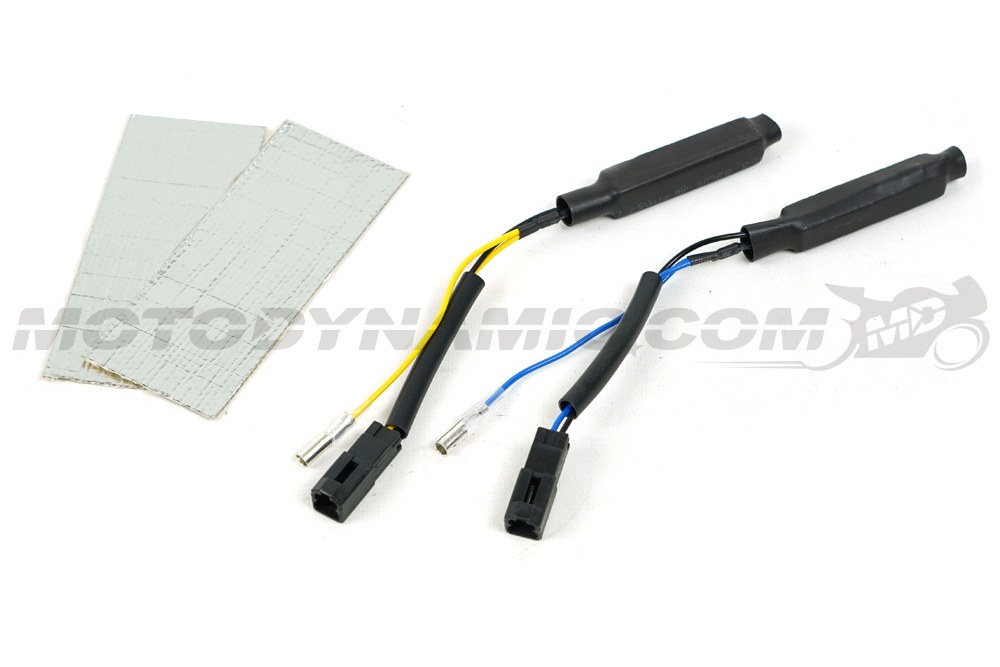

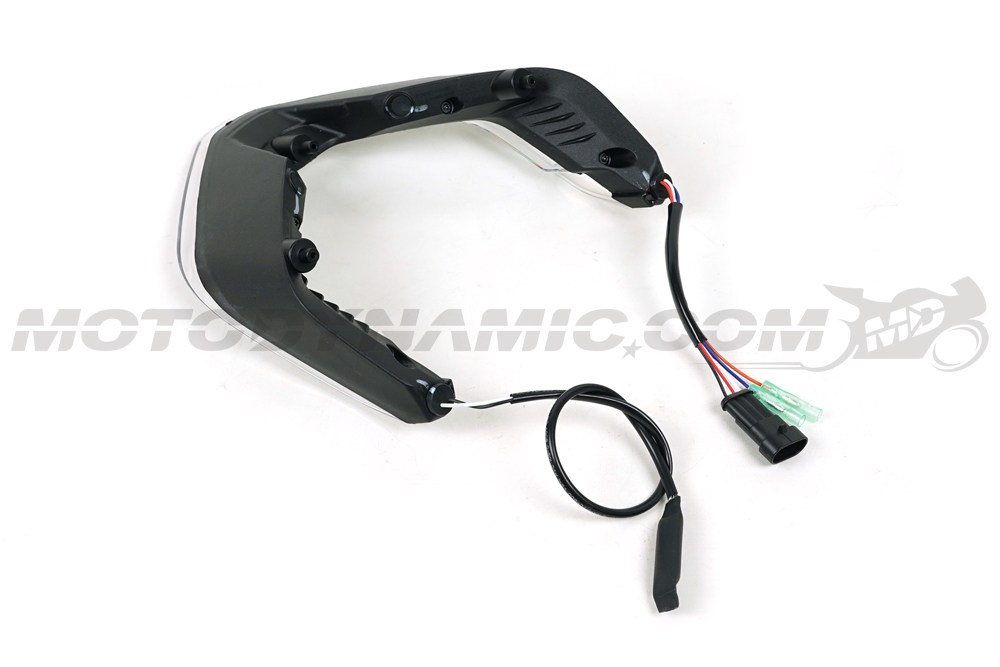

• Direct plug and play with included sub-harness
• Resistors built into sub-harness
• Includes a pair of adhesive backed heat reflector shields
• Hazard override - when hazards on activated and brakes are pressed, hazard will shut off until brakes are disengaged, then hazards will resume
• Stop Alert - utilizes 3 quick red flashes when brakes are applied initially
• Sequential and reverse sequential yellow LED turn signals
• Street Legal: N/A
• Warranty: 1 year

Designed with Stop Alert function added to increase motorist awareness when you are braking (now available with ON/OFF switch to enable/disable feature). Sequential LEDs flash in sequence in the direction you are turning or merging so there is no confusion which way you are going. New reverse sequential feature - when signaling all LEDs activate for that side, then slowly turn off one column at a time.

A microprocessor is use with an integrated circuit chip (IC) to control all the functions of park, brake, and sequential signals. All IC chips are micro soldered by machine to deliver consistent and reliable solder points.
