AELLA Aluminum Variable Handlebar (Diavel 1200 - 11-18)

If I could change positions according to a single rider. It is "AELLA variable handle" that realized such a dreamlike mechanism. It is cut out from the aluminum ingot, ensuring necessary rigidity, the powerful appearance is also the identity of AELLA parts. With our unique variable mechanism, we can fine-tune the optimal position for each person, making it easier to dramatically control handling in urban areas and U turns.

7-piece assembly type structure
Chromium molybdenum steel Positioning pin adopted
Lightening by lightening and mitigation of excessive hardness Can
be repaired from a single bolt
Genuine bar end compatible
switch box Positioning hole drilled
Cable and hose replacement unnecessary

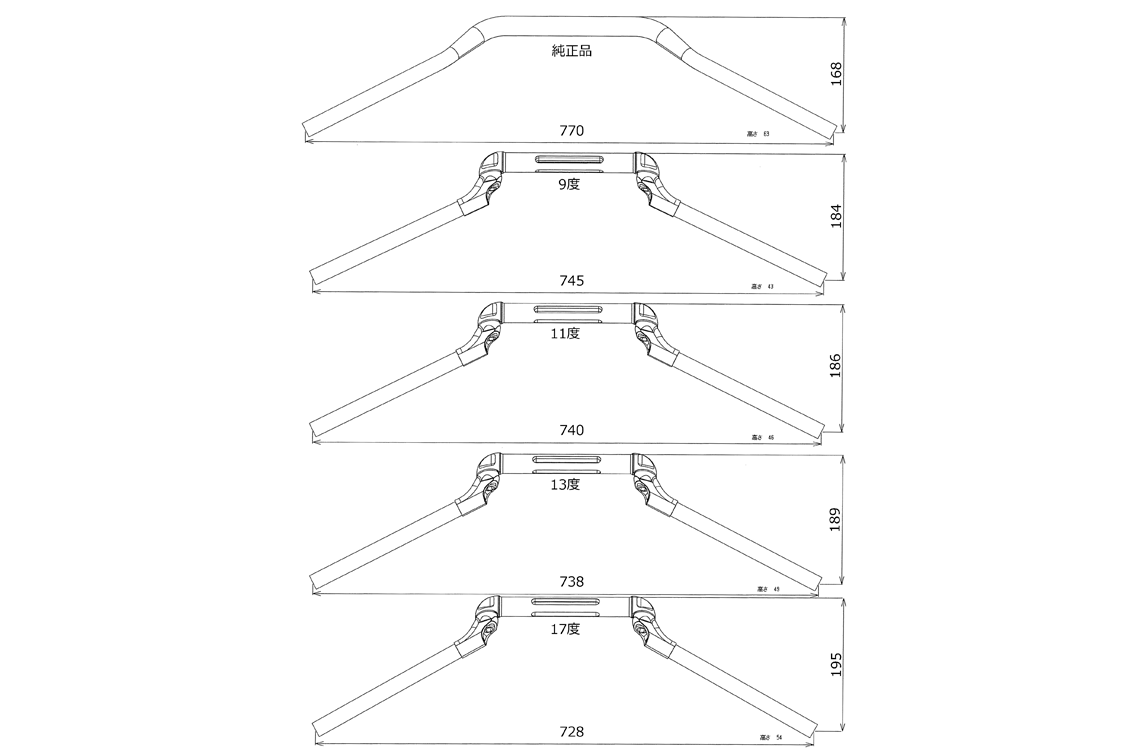

Position:

- 4 handle position (Aperture angle) Variable type The following genuine comparison
- Width 30 mm Short / Height 23 mm Low / Pull 9 mm Before / after shipment
- As a reference angle 2 ° Distance to the back, more open
- It is close to 2 ° closer, further narrowing down
- as the reference, the diaphragm angle is 6 ° closest to the nearest, most throttling (at the time of reversing the central clamping section)

Compatible model

• Diavel 1200

The Handlebar comes with the 2 mm Spacers (the round disks between the main part of the handle and the Parts your controls go on., upon request, you can get  4, 9, or 14 mm instead achieving a longer reach as shown in the pictures below:
