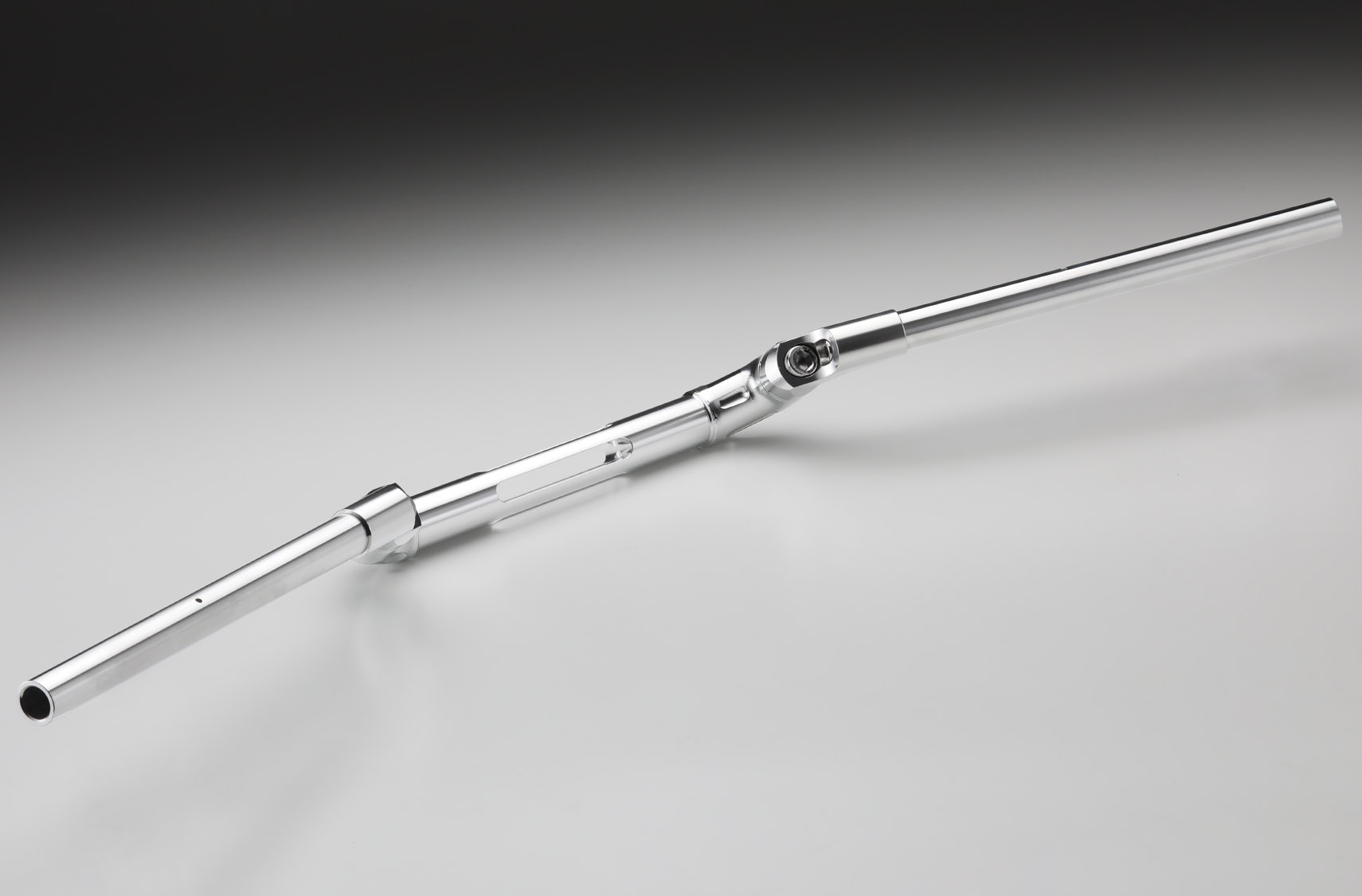

AELLA Aluminum Variable Handlebar (Multistrada V4)

If I could change positions according to a single rider. It is "AELLA variable handle" that realized such a dreamlike mechanism. It is cut out from the aluminum ingot, ensuring necessary rigidity, the powerful appearance is also the identity of AELLA parts. With our unique variable mechanism, we can fine-tune the optimal position for each person, making it easier to dramatically control handling in urban areas and U turns. 7 piece assembly type structure chromium molybdenum steel positioning pin adoption lightening by weight reduction and relaxation of excessive hard feeling repairable from bolt single item genuine bar end compatible switch box positioning hole drilled processed cables and hoses unnecessary AELLA machined aluminum variable handle with a unique mechanism that allows fine adjustment of the position according to the rider.

The handle width is set to -20mm compared to the genuine product, improving operability in the low to medium speed range.

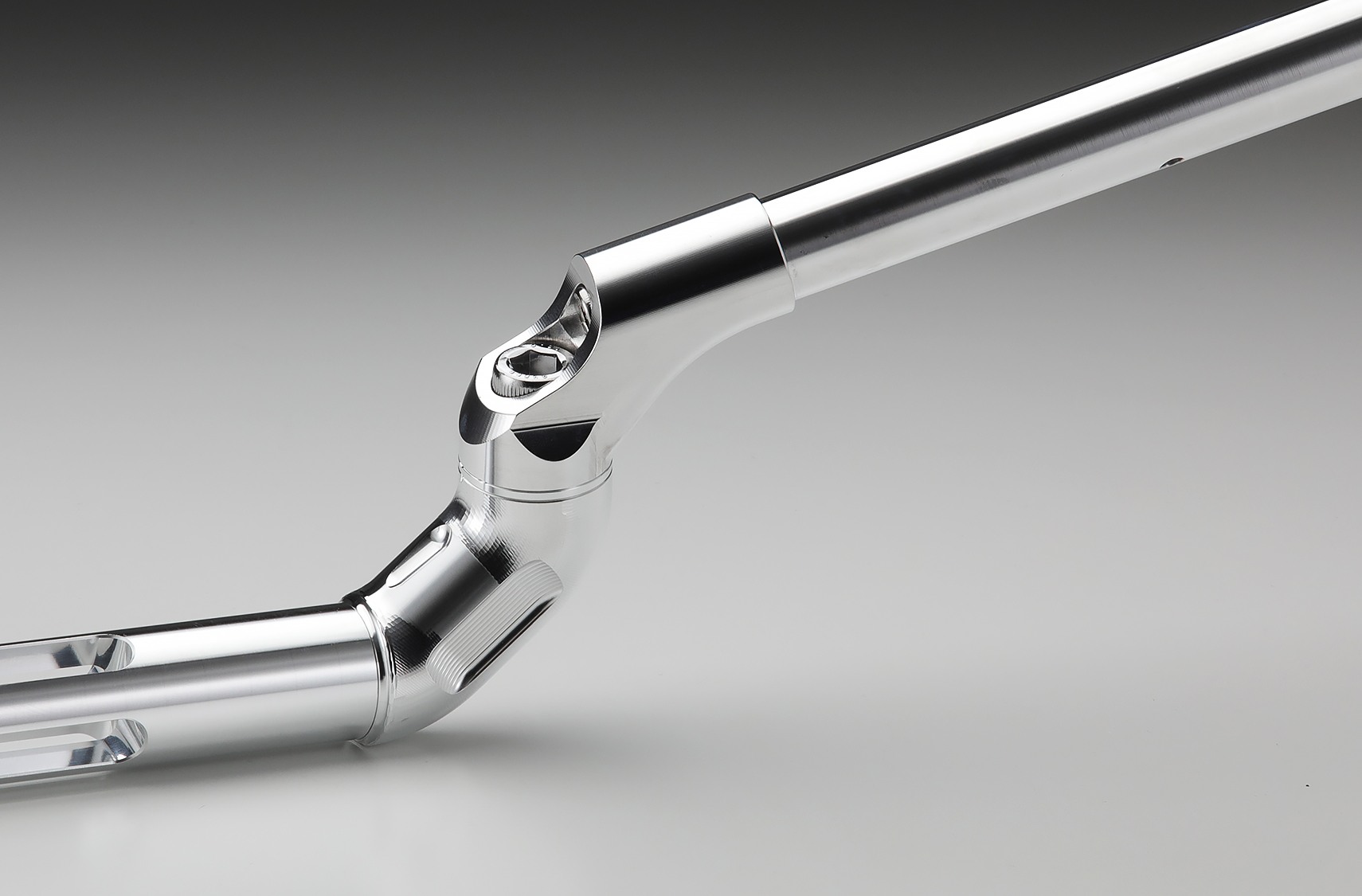

The biggest feature of the variable aluminum handle is that the aperture angle of the handle can be selected from 4 positions, 2 degrees on the opening side and 2 degrees on the aperture side from the same angle as the genuine one. Furthermore, by changing the height of the spacer, it is possible to increase the height by up to 10 mm.

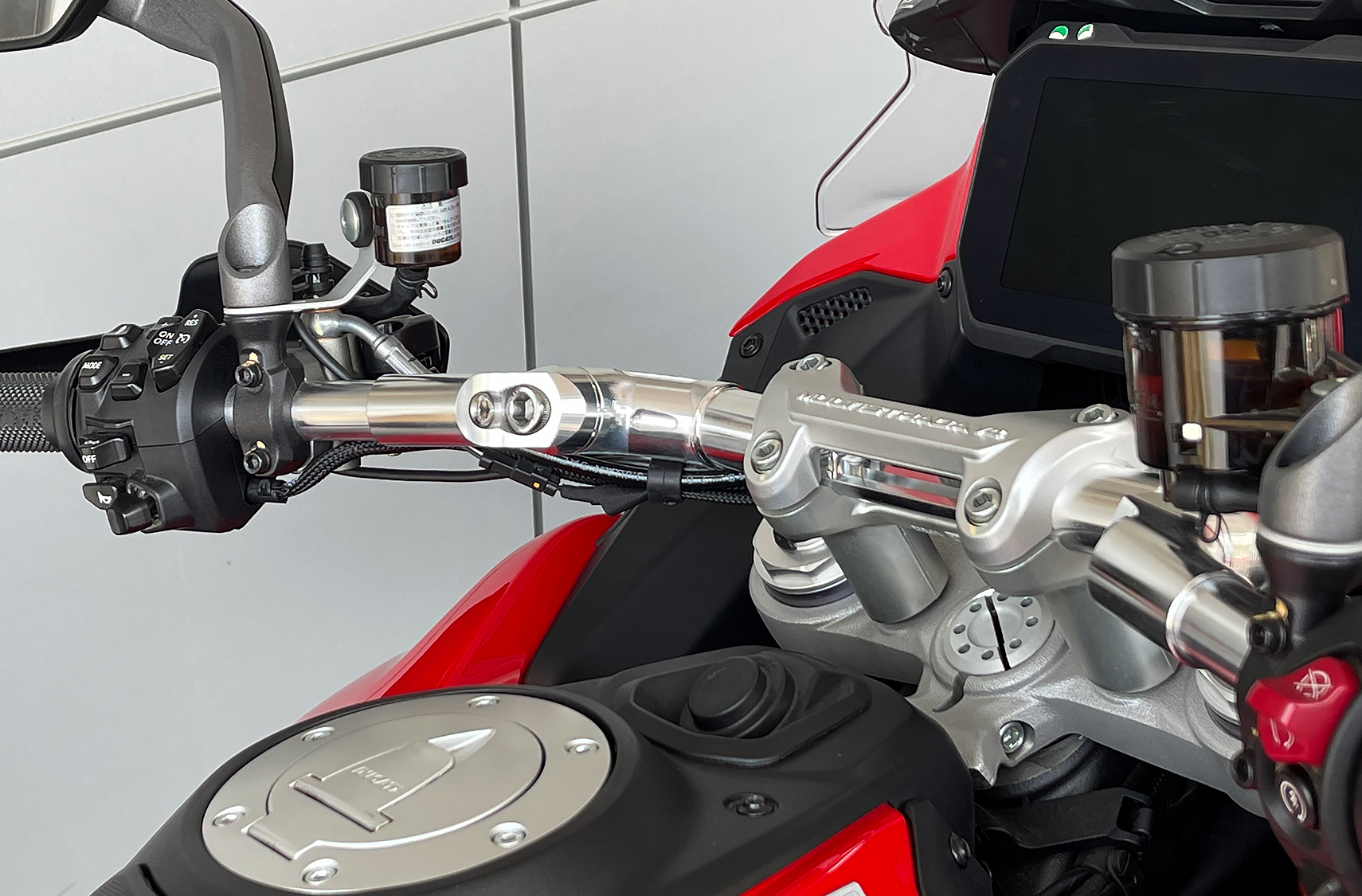

The variable steering wheel for Multistrada V4 is in a state where the steering wheel is further tilted compared to other models. Originally it is a spacer that changes the height, but by changing the height, the handlebar approaches the rider side. Also, when you change the aperture angle, the droop angle also changes for the same reason.

Position:

• Width reduced by 20 mm. (At the genuine ratio + AELLA recommended position)
• The aperture angle is -2 degrees, +2 degrees, +4 degrees from the genuine equivalent.
• The height can be adjusted by ± 5 mm by changing the spacer height from the genuine equivalent.
• AELLA handlebar end slider AE-68302 is compatible.



  The Handlebar comes with the 2 mm Spacers (the round disks between the main part of the handle and the Parts your controls go on., you can get  7, 9, or 12 mm instead achieving a longer reach (also available Separately in the link below):
