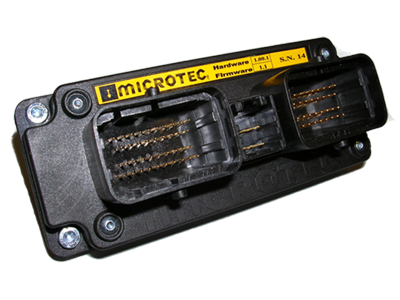

Microtec M197 ECU for Ducati

$894.95

  • Brand: Microtec
  • Product Code: M197
  • Availability: 4-6 Weeks
  • Stock Quantity: 0

Fully programable replacement ECU for any Ducati with a Magneti Marelli 5.9 Includes USB cable & Software Disc. Injection and ignition control unit, specially designed for use on various Ducati models, replacing the original factory ECU. The heart of the system consists of the Power PC MPC5534 by Freescale that with the high speed of calculation supported by a system clock of 80MHz, ensures great performance. The high level of parameters configuration makes this module easily adaptable to different conditions of use. The unit comes with two basic maps already preloaded and adapted to the model which will be used.

The following models are fully supported: Hypermotard 1100 - Monster 800 - Monster 1000 - Monster S2R 800 - Monster S2R 1000 - Monster S4 - Monster S4R/S - Multistrada 620 - Multistrada 1000 - Multistrada 1100 - Sportclassic GT1000 - Sportclassic Paul Smart 1000 - SuperSport 1000 - Sport Touring ST3 - Sport Touring ST4 - Street Fighter 1098 - Super Bike 749 - Superbike 848 - Superbike 998 - Superbike 999 - Superbike 1098 - Superbike 1098R - Superbike1198 - SuperSport 800 - SuperSport 900 - SuperSport 1000

Through an adapter supplied with the kit, the unit can be connected via USB to a common Windows based PC. A specially developed 3D software, allows you to vary and monitor in real time many configuration parameters and values.

Features:

1) Plug & Play

2) Comes with it's own heat sink

3) Works with any Version Windows software

4) Is USB (not serial port)

5) Can auto map 3 different A/F ratio's per cyl. (with optional Auto tune kit)

6) One ECU fits all Ducati's except late model 2v Siemens systems

7) Updates can be flashed to the ECU

8) Retains DTC on 1098/1198R, 1198S and SF1098 S

9) Retains 1098R dual injectors

10) Is 100% Italian



Activation Instructions 1. After software is loaded and open on screen 2. Maps are already pre-loaded so don’t [Load] anything as CD explains 3. Turn key on 4. Click [Open] on bottom left screen, [Tx] and [Rx] should now highlight 5. On bottom right of screen should display [M197 v1.3a] 6. Click [Rx] then [Configuration] then [OK] Your bike model will display above [Config] 7. Click [RX] then [Mapping 2] then [OK] 8. Click [RX] then [Mapping 1] then [OK] Your map name will now display above [Maps] 9. Set TPS: (Don’t use outdated Microtec instructions) 10. Click [Linear] then top right click [Auto Calibration] then [Set] then hold throttle wide open and click [Set] again 11. Click [Save] then [Configuration] then Save to a folder, then [Tx] then [Configuration] then [OK] 12. Bike should now start.

Make Model Years
ducati 1098 2007 - 2008
ducati 1098r 2008 - 2009
ducati 1098s 2007 - 2008
ducati 1198 2009 - 2011
ducati 1198r 2010 - 2010
ducati 1198s 2009 - 2010
ducati 1198sp 2011 - 2011
ducati 749 2004 - 2006
ducati 749 dark 2004 - 2006
ducati 749r 2004 - 2006
ducati 749s 2004 - 2006
ducati 848 2008 - 2010
ducati 848 evo 2011 - 2013
ducati 999 2003 - 2006
ducati 999r 2004 - 2006
ducati 999s 2003 - 2007
ducati gt1000 2007 - 2010
ducati gt1000 touring 2009 - 2009
ducati hypermotard 1100 2008 - 2009
ducati hypermotard 1100s 2008 - 2009
ducati monster 1000 2003 - 2005
ducati monster 600 2001 - 2001
ducati monster 620 2002 - 2005
ducati monster 695 2007 - 2008
ducati monster 750 2001 - 2001
ducati monster 800 2003 - 2005
ducati monster 900 2002 - 2002
ducati monster s2r 1000 2006 - 2008
ducati monster s2r 800 2005 - 2007
ducati monster s4 2001 - 2003
ducati monster s4r 2004 - 2006
ducati monster s4rs 2006 - 2008
ducati monster s4rt 2007 - 2008
ducati multistrada 1000 2003 - 2006
ducati multistrada 1100 2007 - 2009
ducati multistrada 1100s 2007 - 2009
ducati multistrada 620 2005 - 2006
ducati paul smart 1000le 2006 - 2006
ducati sport 1000 2006 - 2008
ducati sport 1000s 2007 - 2009
ducati st3 2004 - 2007
ducati st3s 2006 - 2007
ducati st4s 2002 - 2005
ducati streetfighter 1098 2010 - 2012
ducati streetfighter 1098s 2010 - 2012
ducati supersport 1000 2003 - 2005
ducati supersport 1000ds 2006 - 2006
ducati supersport 620 2003 - 2003
ducati supersport 750 2002 - 2002
ducati supersport 800 2003 - 2007
ducati supersport 900 2000 - 2003
