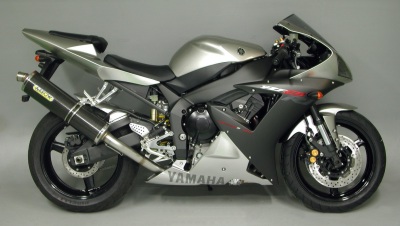

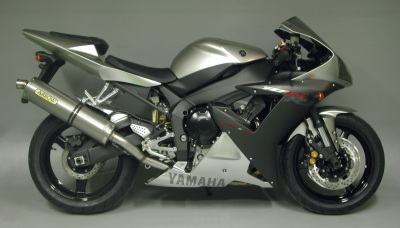

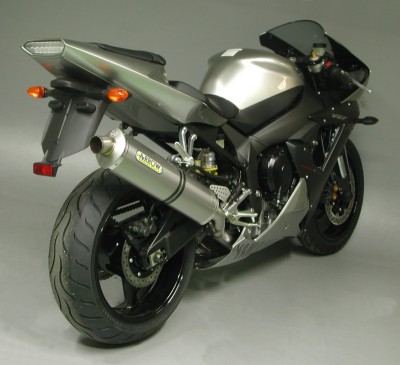

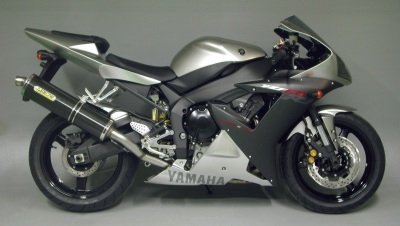

Arrow Exhausts For The Yamaha YZF1000 / YZF -R1 2002/2003
- Brand: Arrow
- Product Code: 71628AO
- Availability: 2-3 Weeks
- Stock Quantity: 0
Silencers
| Features: | Values: |
|---|
| Silencer Material | Aluminium |
| Rear Endcap Material | Stainless Steel |
| Silencer Inner Parts Material | Stainless Steel |
| Silencer Mounting | Stainless Steel Clamp
|
| Silencer Body Length (mm) | 480,00 |
| Junction (inlet) Diameter (mm) | 54,00 |
| Junction (outlet) Diameter (mm) | 50,00 |
| Oxygen Sensor Plug | No |
| CO Sensor Plug | No |
| dbKiller | SI |
| Weight (Kg) | 2,87 |
| Features: | Values: |
|---|
| Silencer Material | Carbon Fibre |
| Rear Endcap Material | Stainless Steel |
| Silencer Inner Parts Material | Stainless Steel |
| Silencer Mounting | Stainless Steel Clamp
|
| Silencer Body Length (mm) | 480,00 |
| Junction (inlet) Diameter (mm) | 54,00 |
| Junction (outlet) Diameter (mm) | 50,00 |
| Oxygen Sensor Plug | No |
| CO Sensor Plug | No |
| dbKiller | SI |
| Weight (Kg) | 2,67 |
| Features: | Values: |
|---|
| Silencer Material | Titanium |
| Rear Endcap Material | Stainless Steel |
| Silencer Inner Parts Material | Stainless Steel |
| Silencer Mounting | Carbon Fibre Clamp
|
| Silencer Body Length (mm) | 480,00 |
| Junction (inlet) Diameter (mm) | 54,00 |
| Junction (outlet) Diameter (mm) | 50,00 |
| Oxygen Sensor Plug | No |
| CO Sensor Plug | No |
| dbKiller | SI |
| Weight (Kg) | 2,27 |
Collectors
| Features: | Values: |
|---|
| Headers Material | Stainless Steel
|
| Junction (outlet) Diameter (mm) | 45,00 |
| Oxygen Sensor Plug | No |
| CO Sensor Plug | No |
| dbKiller | No |
| Weight (Kg) | 3,25 |
Mid-Pipes
| Features: | Values: |
|---|
| Mid-Pipe Material | Stainless Steel
|
| Junction (inlet) Diameter (mm) | 60,00 |
| Junction (outlet) Diameter (mm) | 54,00 |
| Oxygen Sensor Plug | No |
| CO Sensor Plug | No |
| dbKiller | No |
| Weight (Kg) | 0,80 |
| Features: | Values: |
|---|
| Mid-Pipe Material | Stainless Steel
|
| Junction (inlet) Diameter (mm) | 45,00 |
| Junction (outlet) Diameter (mm) | 54,00 |
| Oxygen Sensor Plug | No |
| CO Sensor Plug | No |
| dbKiller | No |
| Weight (Kg) | 1,50 |

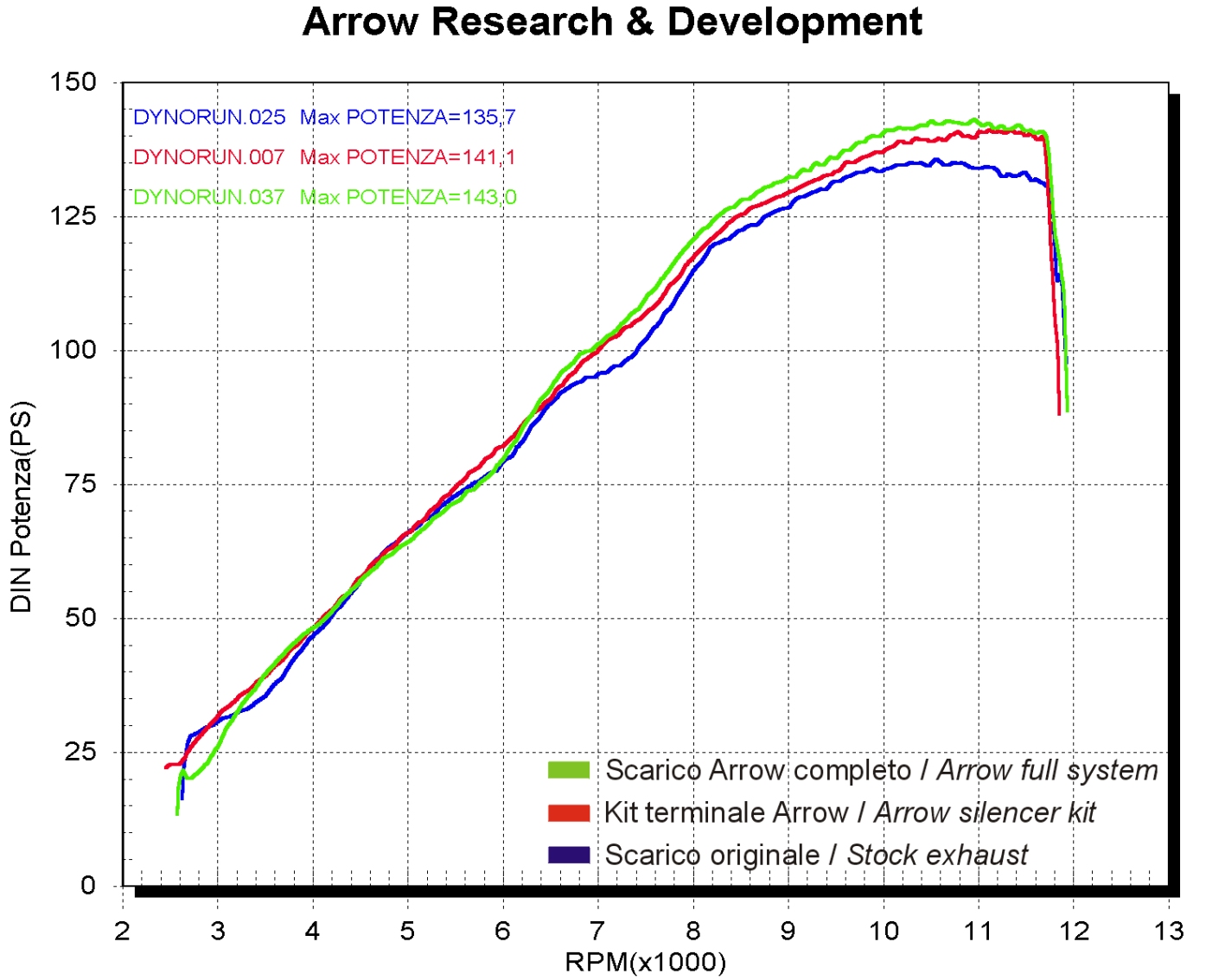

GRAPHS
Useful Link:
Technical File
Spare Parts
| Make |
Model |
Years |
| yamaha |
yzf-r1 |
2002 - 2003 |
