Arrow Exhausts For The Honda CBF125 2009/2014
- Brand: Arrow
- Product Code: 51504
- Availability: 2-3 Weeks
- Stock Quantity: 0
Silencers
| Features: | Values: |
|---|
| Silencer Material | Aluminium |
| Rear Endcap Material | Carbon Fibre |
| Silencer Inner Parts Material | Stainless Steel |
| Mid-Pipe Material | Stainless Steel |
| Silencer Mounting | Stainless Steel Clamp
|
| Silencer Body Length (mm) | 300,00 |
| Junction (inlet) Diameter (mm) | 40,00 |
| Junction (outlet) Diameter (mm) | 45,00 |
| dbKiller | SI |
| Weight (Kg) | 2,57 |
| Features: | Values: |
|---|
| Silencer Material | Aluminium Dark |
| Rear Endcap Material | Carbon Fibre |
| Silencer Inner Parts Material | Stainless Steel |
| Mid-Pipe Material | Stainless Steel |
| Silencer Mounting | Stainless Steel Clamp
|
| Silencer Body Length (mm) | 300,00 |
| Junction (inlet) Diameter (mm) | 40,00 |
| Junction (outlet) Diameter (mm) | 45,00 |
| dbKiller | SI |
| Weight (Kg) | 2,57 |
| Features: | Values: |
|---|
| Silencer Material | Aluminium |
| Rear Endcap Material | Stainless Steel |
| Silencer Inner Parts Material | Stainless Steel |
| Mid-Pipe Material | Stainless Steel |
| Silencer Mounting | Stainless Steel Clamp
|
| Silencer Body Length (mm) | 300,00 |
| Junction (inlet) Diameter (mm) | 40,00 |
| Junction (outlet) Diameter (mm) | 45,00 |
| Oxygen Sensor Plug | No |
| CO Sensor Plug | No |
| dbKiller | SI |
| Weight (Kg) | 2,37 |
| Features: | Values: |
|---|
| Silencer Material | Aluminium Dark |
| Rear Endcap Material | Stainless Steel |
| Silencer Inner Parts Material | Stainless Steel |
| Mid-Pipe Material | Stainless Steel |
| Silencer Mounting | Stainless Steel Clamp
|
| Silencer Body Length (mm) | 300,00 |
| Junction (inlet) Diameter (mm) | 40,00 |
| Junction (outlet) Diameter (mm) | 45,00 |
| Oxygen Sensor Plug | No |
| CO Sensor Plug | No |
| dbKiller | SI |
| Weight (Kg) | 2,37 |
| Features: | Values: |
|---|
| Silencer Material | Titanium |
| Rear Endcap Material | Carbon Fibre |
| Silencer Inner Parts Material | Stainless Steel |
| Mid-Pipe Material | Stainless Steel |
| Silencer Mounting | Carbon Fibre Clamp
|
| Silencer Body Length (mm) | 300,00 |
| Junction (inlet) Diameter (mm) | 40,00 |
| Junction (outlet) Diameter (mm) | 45,00 |
| Oxygen Sensor Plug | No |
| CO Sensor Plug | No |
| dbKiller | SI |
| Weight (Kg) | 2,07 |
| Features: | Values: |
|---|
| Silencer Material | Titanium |
| Rear Endcap Material | Stainless Steel |
| Silencer Inner Parts Material | Stainless Steel |
| Mid-Pipe Material | Stainless Steel |
| Silencer Mounting | Stainless Steel Clamp
|
| Silencer Body Length (mm) | 300,00 |
| Junction (inlet) Diameter (mm) | 40,00 |
| Junction (outlet) Diameter (mm) | 45,00 |
| Oxygen Sensor Plug | No |
| CO Sensor Plug | No |
| dbKiller | SI |
| Weight (Kg) | 2,07 |

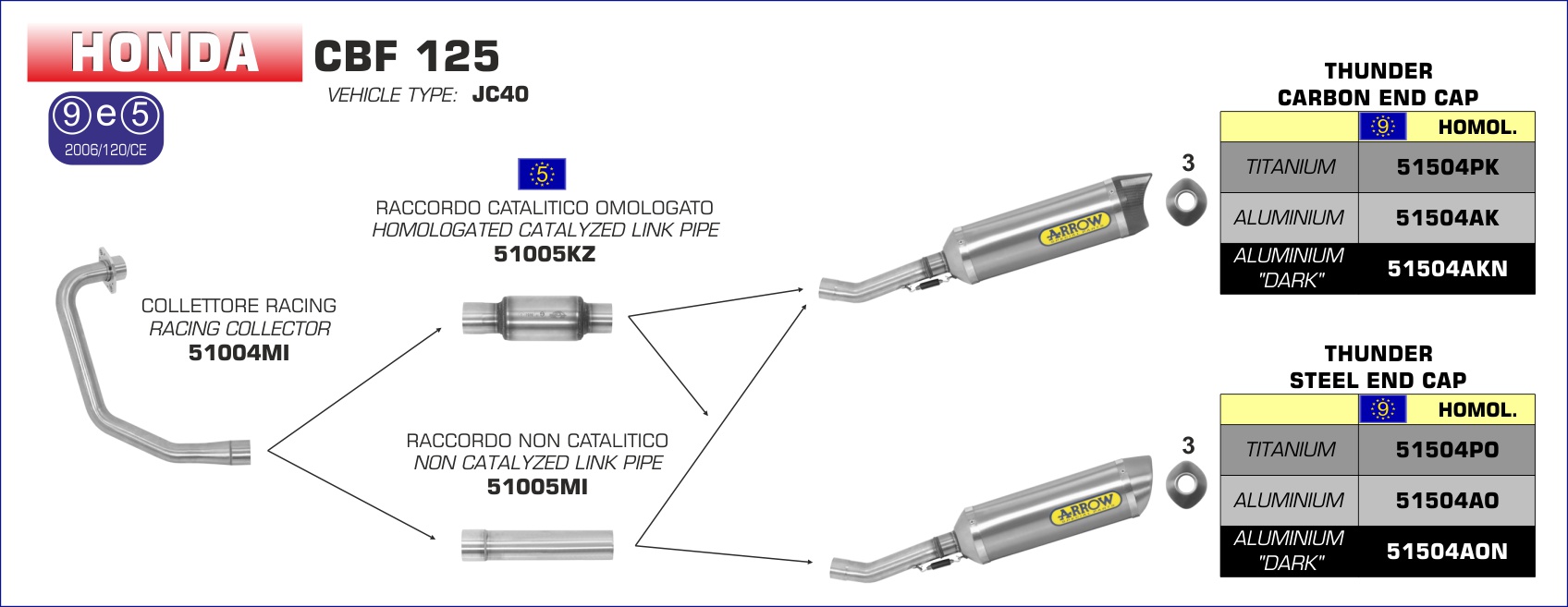

Collectors
| Features: | Values: |
|---|
| Headers Material | Stainless Steel |
| Junction (outlet) Diameter (mm) | 40,00 |
| Oxygen Sensor Plug | No |
| CO Sensor Plug | No |
| dbKiller | No |
| Weight (Kg) | 0,65 |
Mid-Pipes
| Features: | Values: |
|---|
| Mid-Pipe Material | Stainless Steel |
| Junction (inlet) Diameter (mm) | 40,00 |
| Junction (outlet) Diameter (mm) | 40,00 |
| Oxygen Sensor Plug | No |
| CO Sensor Plug | No |
| dbKiller | No |
| Weight (Kg) | 0,80 |
| Features: | Values: |
|---|
| Mid-Pipe Material | Stainless Steel |
| Junction (inlet) Diameter (mm) | 40,00 |
| Junction (outlet) Diameter (mm) | 40,00 |
| Oxygen Sensor Plug | No |
| CO Sensor Plug | No |
| dbKiller | No |
| Weight (Kg) | 0,30 |

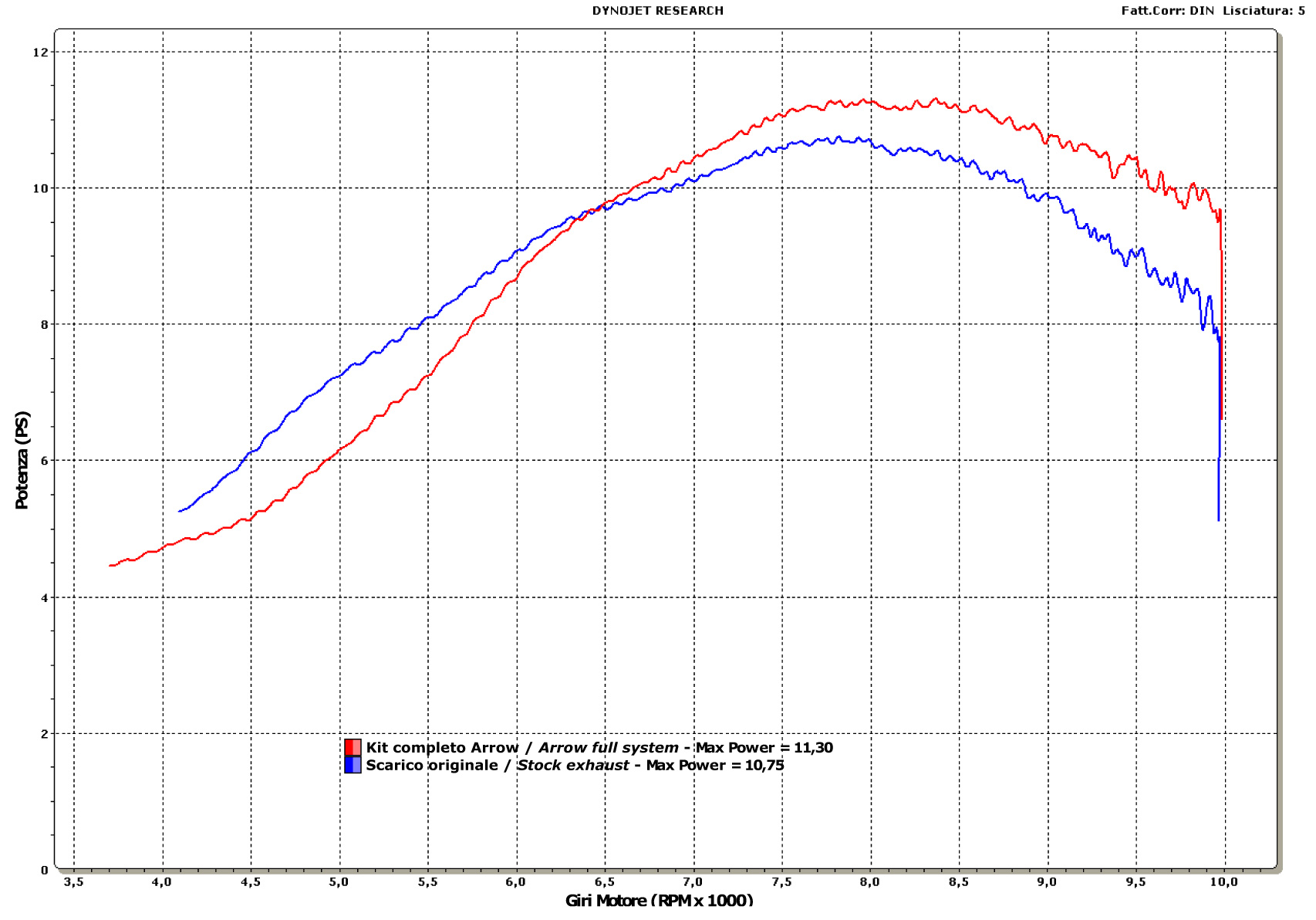

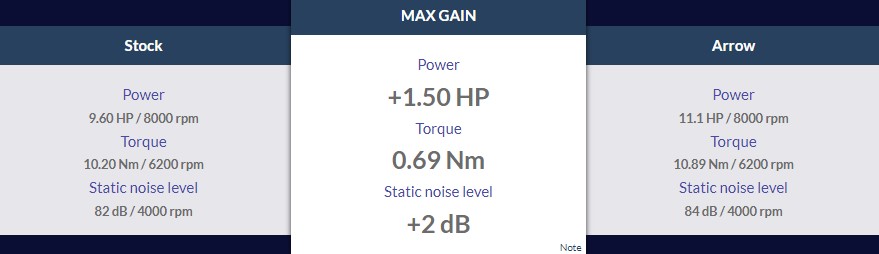

GRAPHS
Useful Link:
Spare Parts
| Make |
Model |
Years |
| honda |
cbf125 |
2009 - 2014 |
