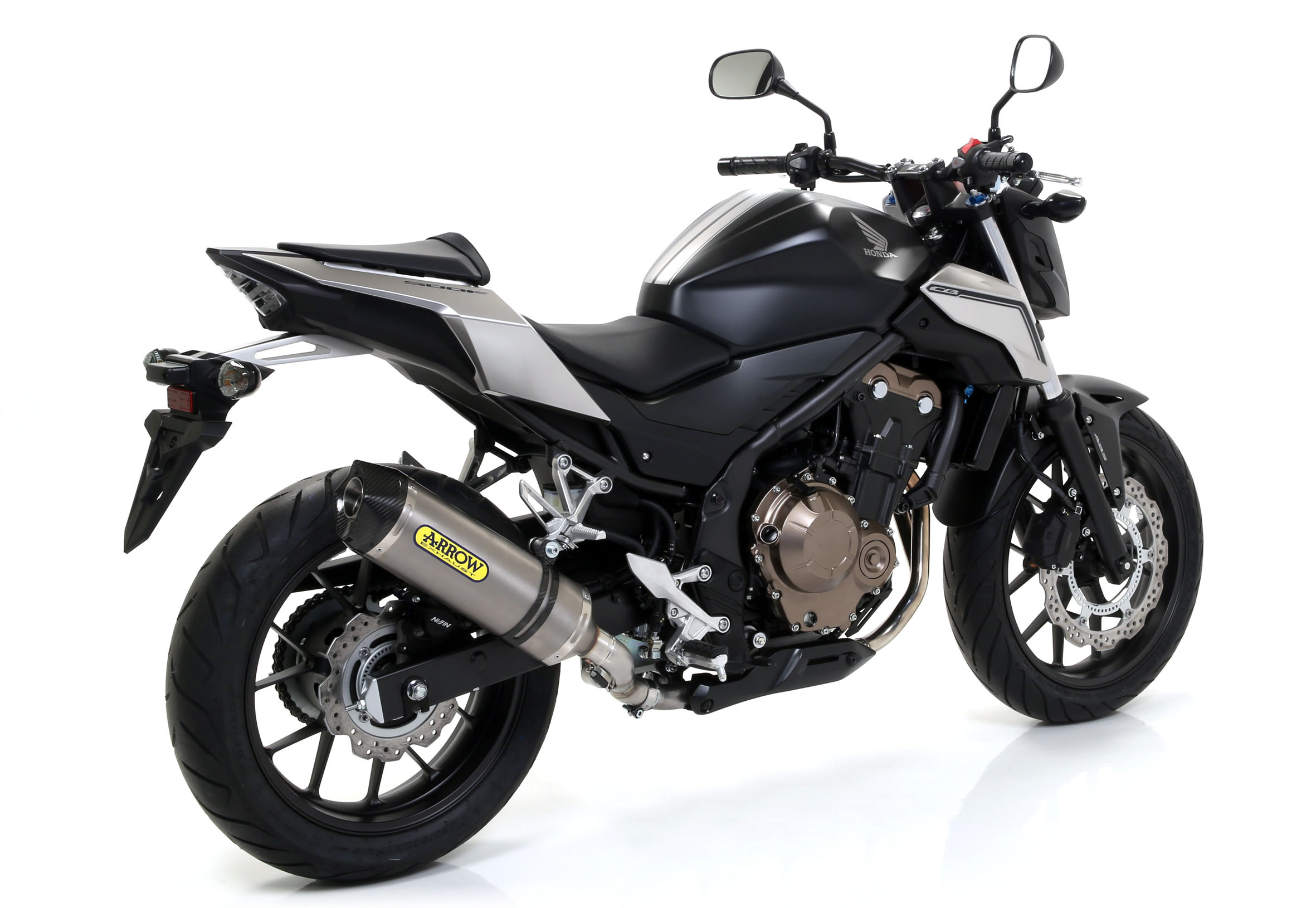

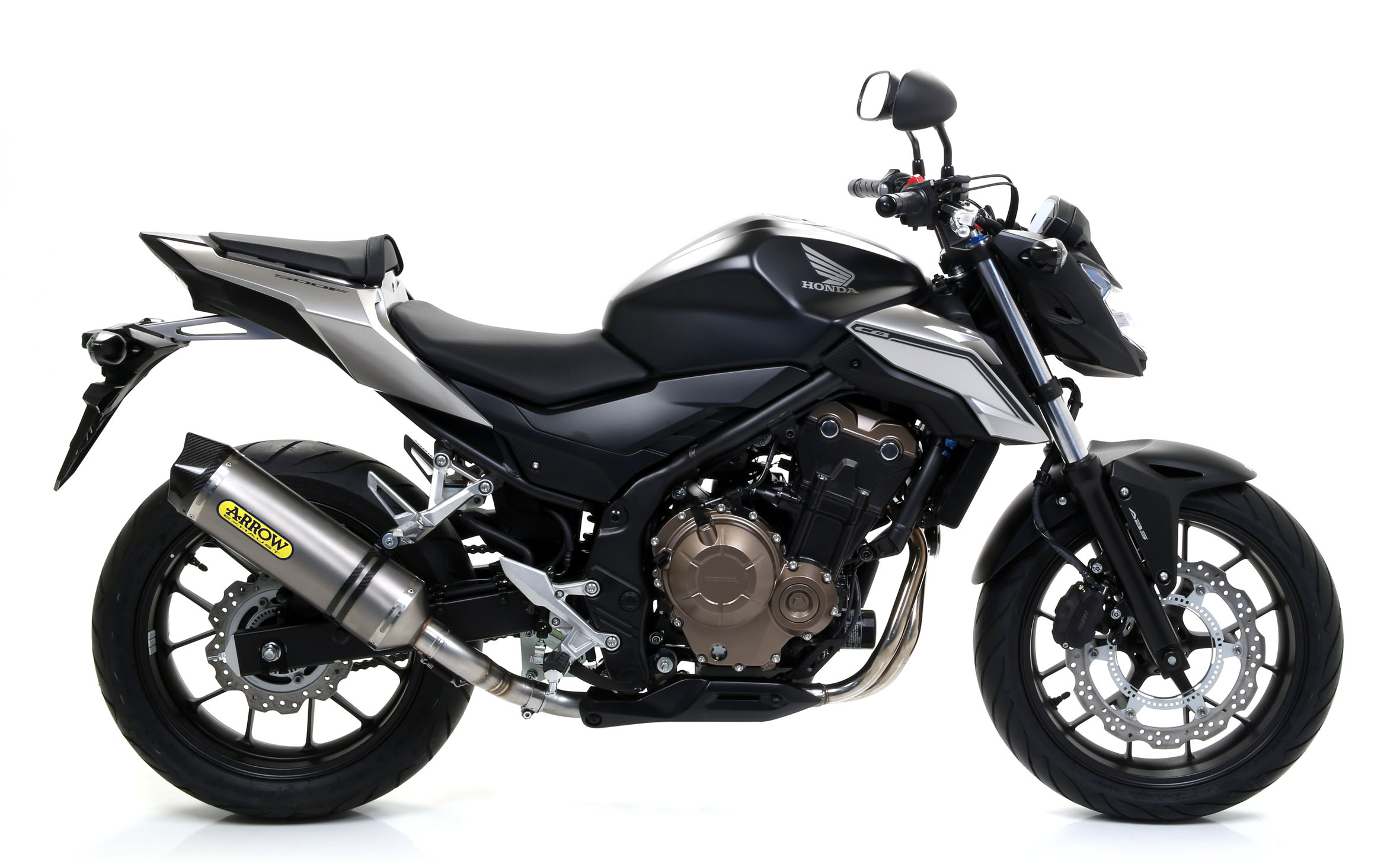

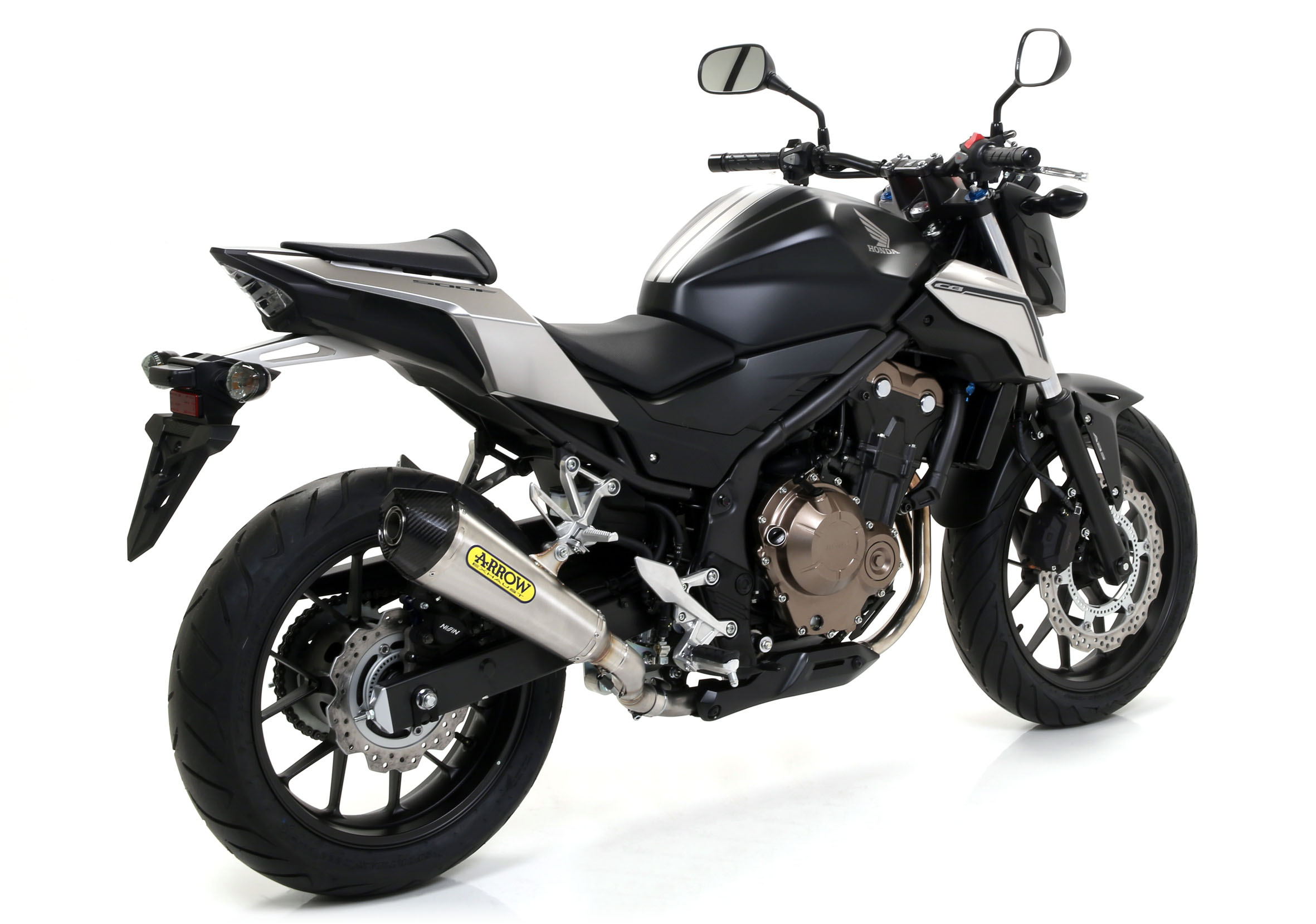

Arrow Exhausts For The Honda CB 500 F 2016/2018
- Brand: Arrow
- Product Code: 71029
- Availability: 2-3 Weeks
- Stock Quantity: 0
Silencers
| Features: | Values: |
|---|
| Silencer Material | Titanium |
| Rear Endcap Material | Titanium |
| Silencer Inner Parts Material | Titanium |
| Mid-Pipe Material | Stainless Steel |
| Silencer Mounting | Titanium Clamp
|
| Silencer Body Length (mm) | 200,00 |
| Junction (inlet) Diameter (mm) | 54,00 |
| Junction (outlet) Diameter (mm) | 58,00 |
| Oxygen Sensor Plug | No |
| CO Sensor Plug | No |
| dbKiller | No |
| Weight (Kg) | 1,37 |
| Features: | Values: |
|---|
| Silencer Material | Stainless Steel Dark |
| Rear Endcap Material | Stainless Steel |
| Silencer Inner Parts Material | Stainless Steel |
| Mid-Pipe Material | Stainless Steel |
| Silencer Mounting | Stainless Steel Clamp
|
| Silencer Body Length (mm) | 200,00 |
| Junction (inlet) Diameter (mm) | 54,00 |
| Junction (outlet) Diameter (mm) | 58,00 |
| Oxygen Sensor Plug | No |
| CO Sensor Plug | No |
| dbKiller | No |
| Weight (Kg) | 1,37 |
| Features: | Values: |
|---|
| Silencer Material | Titanium |
| Rear Endcap Material | Titanium |
| Silencer Inner Parts Material | Titanium |
| Mid-Pipe Material | Stainless Steel |
| Silencer Mounting | Welded Mount
|
| Silencer Body Length (mm) | 250,00 |
| Junction (inlet) Diameter (mm) | 54,00 |
| Junction (outlet) Diameter (mm) | 70,00 |
| Oxygen Sensor Plug | No |
| CO Sensor Plug | No |
| dbKiller | No |
| Weight (Kg) | 1,15 |
| Features: | Values: |
|---|
| Weight (Kg) | 1,65 |
| Features: | Values: |
|---|
| Weight (Kg) | 1,65 |
| Features: | Values: |
|---|
| Silencer Material | Aluminium |
| Rear Endcap Material | Carbon Fibre |
| Silencer Inner Parts Material | Stainless Steel |
| Silencer Mounting | Stainless Steel Clamp
|
| Silencer Body Length (mm) | 350,00 |
| Junction (inlet) Diameter (mm) | 50,00 |
| Junction (outlet) Diameter (mm) | 50,00 |
| dbKiller | SI |
| Weight (Kg) | 2,87 |
| Features: | Values: |
|---|
| Silencer Material | Aluminium White |
| Rear Endcap Material | Carbon Fibre |
| Silencer Inner Parts Material | Stainless Steel |
| Silencer Mounting | Stainless Steel Clamp
|
| Silencer Body Length (mm) | 350,00 |
| Junction (inlet) Diameter (mm) | 50,00 |
| Junction (outlet) Diameter (mm) | 50,00 |
| dbKiller | SI |
| Weight (Kg) | 2,67 |
| Features: | Values: |
|---|
| Silencer Material | Aluminium Dark |
| Rear Endcap Material | Carbon Fibre |
| Silencer Inner Parts Material | Stainless Steel |
| Silencer Mounting | Stainless Steel Clamp
|
| Silencer Body Length (mm) | 350,00 |
| Junction (inlet) Diameter (mm) | 50,00 |
| Junction (outlet) Diameter (mm) | 50,00 |
| dbKiller | SI |
| Weight (Kg) | 2,77 |
| Features: | Values: |
|---|
| Silencer Material | Aluminium |
| Rear Endcap Material | Stainless Steel |
| Silencer Inner Parts Material | Stainless Steel |
| Silencer Mounting | Stainless Steel Clamp
|
| Silencer Body Length (mm) | 350,00 |
| Junction (inlet) Diameter (mm) | 50,00 |
| Junction (outlet) Diameter (mm) | 50,00 |
| dbKiller | SI |
| Weight (Kg) | 2,77 |
| Features: | Values: |
|---|
| Silencer Material | Aluminium Dark |
| Rear Endcap Material | Stainless Steel |
| Silencer Inner Parts Material | Stainless Steel |
| Silencer Mounting | Stainless Steel Clamp
|
| Silencer Body Length (mm) | 350,00 |
| Junction (inlet) Diameter (mm) | 50,00 |
| Junction (outlet) Diameter (mm) | 50,00 |
| dbKiller | SI |
| Weight (Kg) | 2,77 |
| Features: | Values: |
|---|
| Silencer Material | Carbon Fibre |
| Rear Endcap Material | Carbon Fibre |
| Silencer Inner Parts Material | Stainless Steel |
| Silencer Mounting | Stainless Steel Clamp
|
| Silencer Body Length (mm) | 350,00 |
| Junction (inlet) Diameter (mm) | 50,00 |
| Junction (outlet) Diameter (mm) | 50,00 |
| CO Sensor Plug | SI |
| Weight (Kg) | 2,47 |
| Features: | Values: |
|---|
| Silencer Material | Titanium |
| Rear Endcap Material | Carbon Fibre |
| Silencer Inner Parts Material | Stainless Steel |
| Silencer Mounting | Carbon Fibre Clamp
|
| Silencer Body Length (mm) | 350,00 |
| Junction (inlet) Diameter (mm) | 50,00 |
| Junction (outlet) Diameter (mm) | 50,00 |
| CO Sensor Plug | SI |
| Weight (Kg) | 2,27 |
| Features: | Values: |
|---|
| Silencer Material | Stainless Steel |
| Rear Endcap Material | Carbon Fibre |
| Silencer Inner Parts Material | Stainless Steel |
| Silencer Mounting | Welded Mount
|
| Silencer Body Length (mm) | 300,00 |
| Junction (inlet) Diameter (mm) | 50,00 |
| Junction (outlet) Diameter (mm) | 50,00 |
| CO Sensor Plug | SI |
| Weight (Kg) | 1,97 |
Full Systems
| Features: | Values: |
|---|
| Silencer Material | Titanium |
| Rear Endcap Material | Carbon Fibre |
| Silencer Inner Parts Material | Titanium |
| Mid-Pipe Material | Titanium |
| Silencer Mounting | Carbon Fibre Clamp
|
| Headers Material | Stainless Steel
|
| Silencer Body Length (mm) | 220,00 |
| Junction (inlet) Diameter (mm) | 54,00 |
| Junction (outlet) Diameter (mm) | 50,00 |
| Oxygen Sensor Plug | No |
| CO Sensor Plug | SI |
| dbKiller | SI |
| Weight (Kg) | 4,90 |
| Features: | Values: |
|---|
| Silencer Material | Titanium |
| Rear Endcap Material | Carbon Fibre |
| Silencer Inner Parts Material | Titanium |
| Mid-Pipe Material | Titanium |
| Silencer Mounting | Carbon Fibre Clamp
|
| Headers Material | Titanium
|
| Silencer Body Length (mm) | 220,00 |
| Junction (inlet) Diameter (mm) | 54,00 |
| Junction (outlet) Diameter (mm) | 50,00 |
| Oxygen Sensor Plug | No |
| CO Sensor Plug | SI |
| dbKiller | SI |
| Weight (Kg) | 3,50 |
Collectors
| Features: | Values: |
|---|
| Silencer Mounting | Welded Mount
|
| Headers Material | Stainless Steel
|
| Junction (outlet) Diameter (mm) | 43,00 |
| Oxygen Sensor Plug | No |
| CO Sensor Plug | SI |
| Weight (Kg) | 1,97 |
Mid-Pipes
| Features: | Values: |
|---|
| Mid-Pipe Material | Stainless Steel |
| Junction (inlet) Diameter (mm) | 43,00 |
| Junction (outlet) Diameter (mm) | 50,00 |
| Oxygen Sensor Plug | No |
| CO Sensor Plug | No |
| Weight (Kg) | 0,60 |

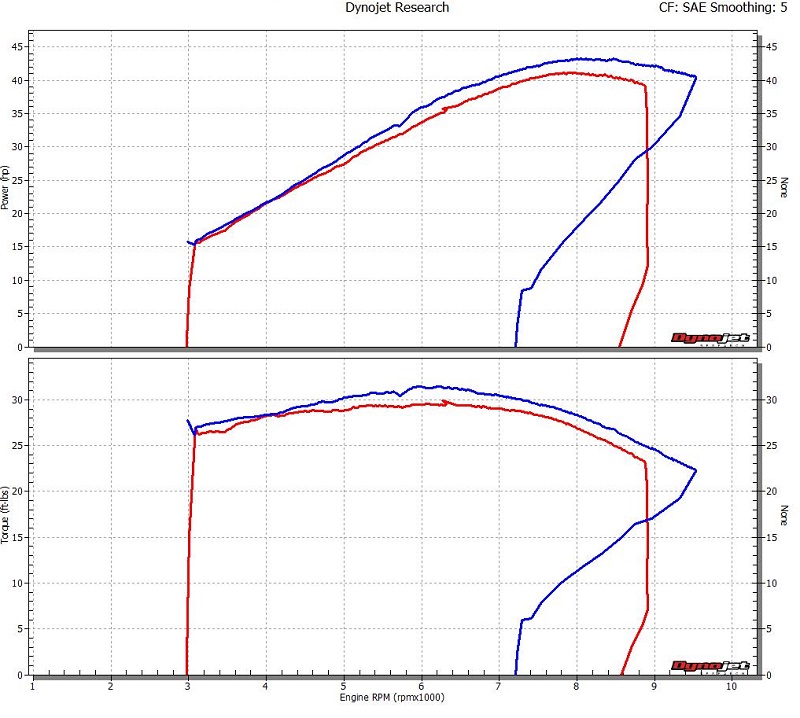

GRAPHS
Useful Link:
Spare Parts
Competition full system spare parts
| Make |
Model |
Years |
| honda |
cb500f |
2016 - 2018 |
