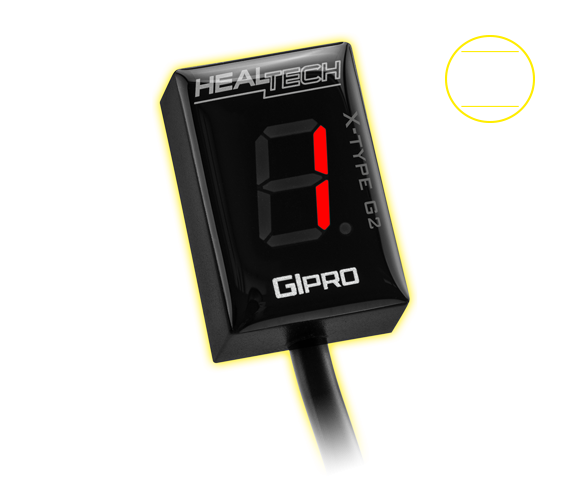

Healtech GIpro X-type G2 - Gear Position Indicator
- Brand: HealTech
- Product Code: GPXT
- Availability: 2-3 Weeks
- Stock Quantity: 0
NOTE: Choose this Kit if you cannot find one of the other GIpro's that are specific to your vehicle. To expedite your order, make sure you specify Year, Make and Model in the Notes section above!
Ultra fast response: Improved signal processing for fast response and flawless function. The best universal gear indicator just got better!
New functions: Touch control for effortless adjustments of various parameters. Updated High Speed Warning and Shift Light functions.
5 display color options: Simple and clear front face with Red, Blue, Green, Yellow or White display options. Auto dimming for night time use. -Note: Yellow is not recommended unless the display will be mounted in a shaded location, avoiding direct sunlight.
The GIpro X-type G2 model works on all motorcycles, ATVs, cars and other vehicles with 4, 5 or 6 gear positions. No matter what bike you own, we have a solution for your ride. To make the installation as simple as possible, we offer Plug ‘n Go harness kits for hundreds of different bikes. An universal harness kit is also available and there’s a kit for older bikes too having cable driven speedometer or no speedometer at all, such as off-road motorcycles / dirt bikes.
When you order, select the display color + the harness kit we list for your bike. If your bike is not listed, contact your distributor for advice which universal harness kit will work.Note: We do not list the X-type for motorcycles which the GIpro ATRE or GIpro DS models are compatible with.
Fast and accurate
Instant and accurate indication of the selected gear (right after
the clutch is released) for added control and safety. The sampling
period can be adjusted to make the response quicker or slower, depending
on shift speed and signal conditions.
Touch control
All settings can be done via the touch sensor so there’s no opening on
the housing, it is completely sealed and encapsulated in epoxy. The
touch sensitive area is on the TOP of the unit. However, after
programming, the unit can be mounted even with the top side stuck to the
dashboard (via the sticky pads supplied) and will function properly. It
can also be used with the optional GIpro Mount.
Quick installation
Plug ‘n Go wiring harness kits are available for most
motorcycles. Easy to mount display. Complete installation can be done
within 45 minutes on most motorcycles.
Bright and effective display
Extra bright LED display, housed in a compact box. Available in 5 colors.
Auto Brightness Control
The brightness of the display is adjusted automatically according to the
ambient light intensity. The sensitivity of the sensor can be
fine-tuned in the menu.
High Speed Warning and Shift Light function
If you wish, you may set the unit to warn you when the set road speed and/or the set engine speed is exceeded.
Auto Learning function
The unit learns the gear positions automatically, just start the learning function via the menu.
Compatibility
Compatible with all HealTech and most aftermarket products, including quick shifters.
Robust design
– Full SMT-design, encapsulated in epoxy
– Flash memory to store user settings even with the battery disconnected
– Only inspected, high quality components are built in
– Each unit is extensively tested prior to shipping, guaranteed to work
– 100% waterproof (IP68)
F.A.Q.
Yes, just use thin metal piece, at least 1cm (0.4″) wide. Hold the metal piece in your hand (without gloves) and use it as if it was an extension of your finger to operate the touch sensor.
How does the GIpro X-type work?
The unit reads the Speed and RPM signals to determine the gear position.
The firmware adaptively adjusts sensitivity and threshold levels to
work as good as possible on the specific bike it is installed on. For
this reason, it is more accurate and has much quicker response time than
competing products.
It shows a “-” sign when the clutch is pulled in, and shows the correct gear position as soon as the clutch is released.
Incorrect gear is never shown, except when the clutch slips (for a split
second when the clutch is released slowly after a backshift).
How does the GIpro X-type compare to similar products?
We guarantee that you will love the GIpro! Sold in very large numbers
over the last decade and we get lots of good feedback from our
customers. There’s a reason HealTech is the most popular brand when it
comes to gear indicators and the G2 version is the best universal gear
indicator to date.
Which display color would you recommend?
The Red and Green colors are the best in strong daylight. Second choice
is Blue, then White. Yellow is not recommended unless the
display will be mounted in a shaded location.
Is it compatible with other products, like the SpeedoHealer, Power Commander, Bazzaz, etc.?
Yes. It won’t interfere with other products. Works perfectly with quick shifters too.
What does it take to install the GPX?
› with Plug ‘n Go harness kits: Connect one connector and tap 1 or 2
wires with the wire-tap quick connectors supplied. On most bikes, all
connections are done under the fuel tank.
› with Universal (U01 or U02) harness kits: Tap 4 wires with the
wire-tap quick connectors supplied. No need to cut or solder any wires.
› if the bike has a cable driven speedometer (or no speedometer), our
GPX-WSS wheel speed sensor kit is needed. Mount the sensor at the front
or rear wheel and tap 3 wires with the wire-tap quick connectors
supplied. No need to cut or solder any wires.
What is the difference between the DS and X-type models?
The display size and available colors are exactly the same, but the way it determines the gear position is very different.
The DS works on SPECIFIC bike models with factory diagnostic system
built-in, while the X-type works on ALL bikes with 4, 5 or 6 speed
gearbox.
Both models are easy to install but it takes less time to install a DS
as you just plug it into the diagnostic socket on the bike.
Basically, the choice is simple. Get the DS if it is listed for your bike, otherwise get the X-type.
Our Product Advisor shows the available products for your bike.
I have installed an X-type on my bike earlier, can I switch to the new version?
Yes, you need to order the X-type G2 display unit only. Your harness kit installed does not need to be changed.
