Spears Racing Wet Slipper Clutch w/ Basket For Suzuki SV650 / Gladius / DL 650 V-Strom - Extra Plate Version
- Brand: Spears Racing
- Product Code: SP20-650-RACE
- Availability: 2-3 Days
- Stock Quantity: 0
Spears Racing New Suzuki SV650 / Gladius / DL 650 V-Strom Slipper Clutch Extra Plate Design is computer-aided design/computer-aided manufacturing billet Slipper Clutch and is produced from EN AW 7075 aerospace aluminum alloy which has excellent mechanical properties, exhibits good ductility, high strength, toughness and good resistance to fatigue. Each unit is hard anodized which is Type III which is done under more exacting process conditions resulting in a harder, denser, thicker, and more abrasion resistant coating for increase durability and longevity. Made in the Good ole' US of A!

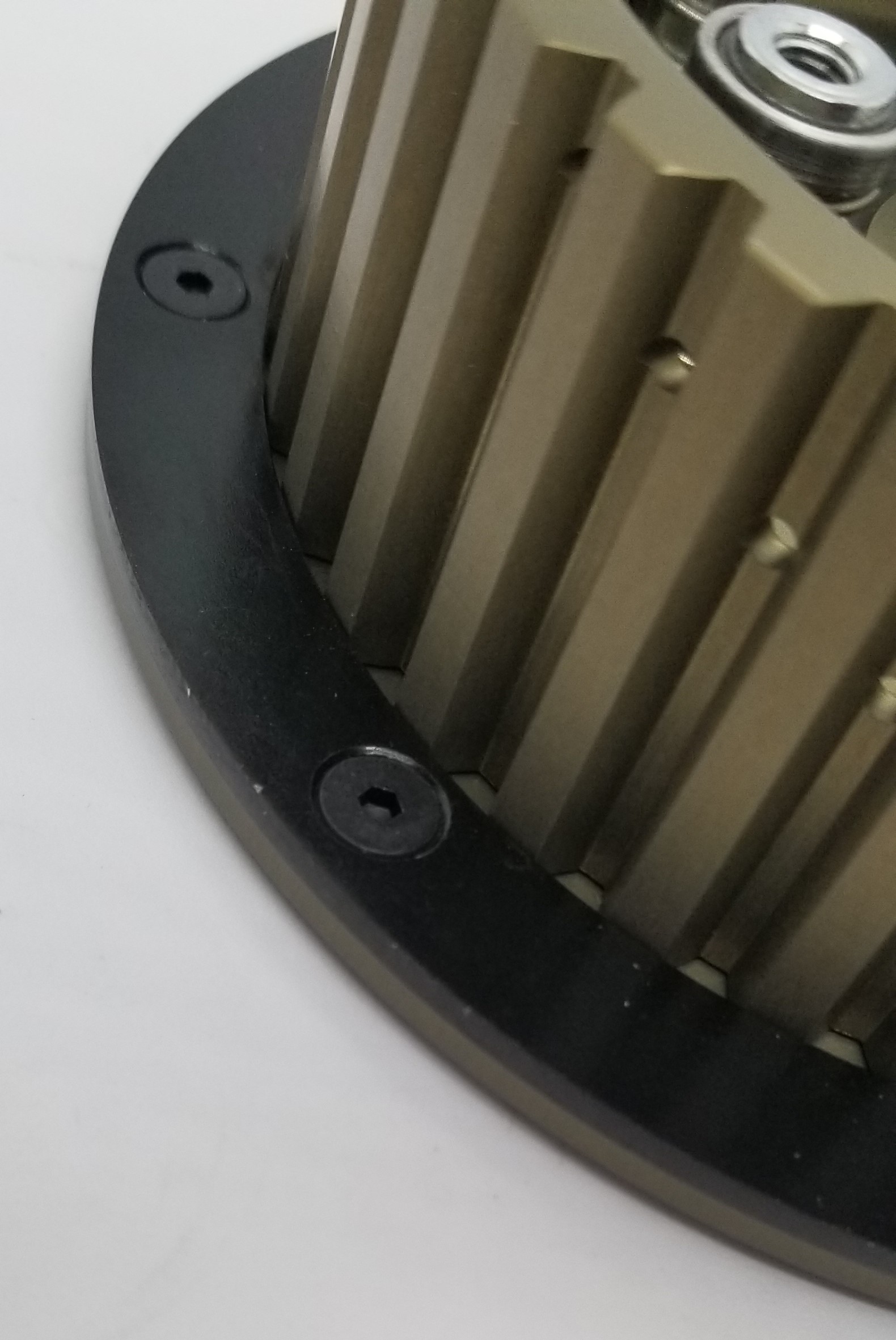

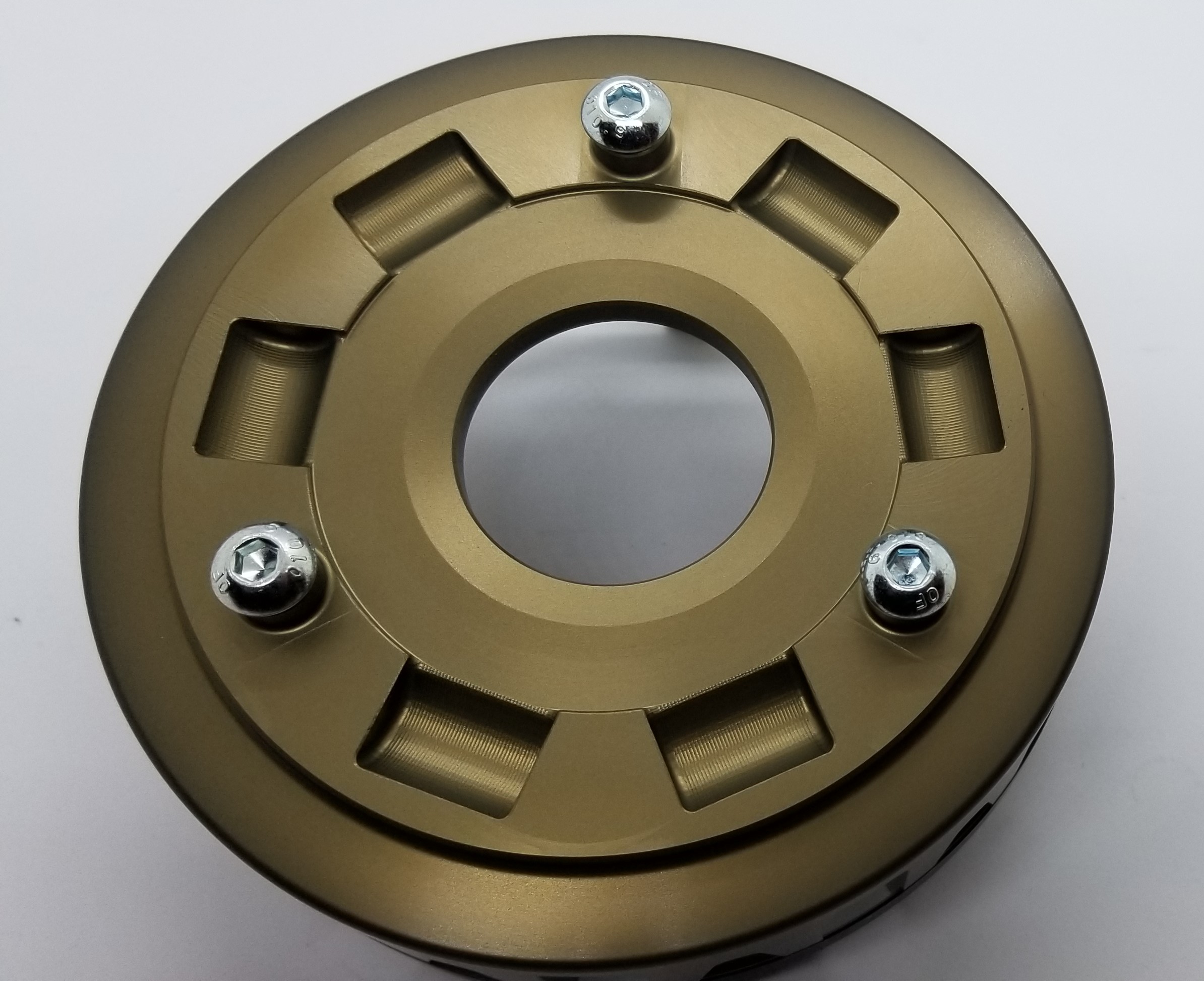

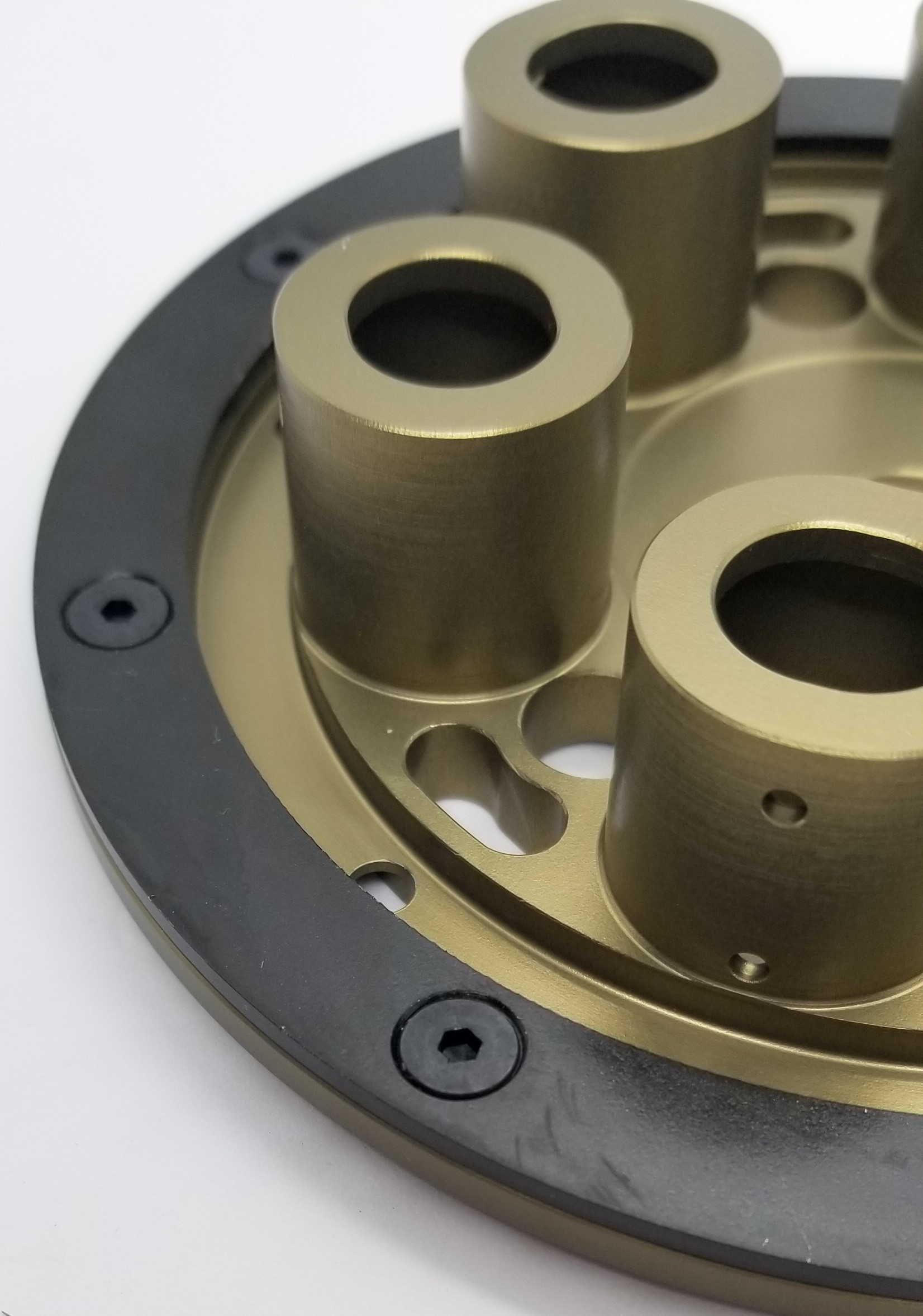

Spears Racing newest SV650 Slipper Racing clutch is one of the newest version of the race clutch for high HP high torque SV650 race engines. For several years the SV650 has been making more and more RWHP and Torque, the Standard slipper will take some of the abuse but it will not last or compare to this new design. Both the pressure plate (Outer) and the base of the inner hub are lined with steel coated plates that have been machined and are attached by counter sunk machine screws for more wear resistance and longevity, because of this you will be able to add an extra steel and friction plates to the slipper (This is a big deal adding more surface area to the slipper plates) and the hub is taller also.
NOTE: You or your installer need to understand that all clearances
need to be checked and double checked (aftermarket clutch covers for the
first gen ) and also you need to lay some clay inside of the second and
third gen clutch covers and install to see if there is any issues with
the slipper clutch assemble contacting the cover.
Why do you need a slipper clutch?
The reason is simple – the slipper clutch reduces rear wheel chatter
on downshifting, allowing better chassis stability under braking and
corner entry thus reducing the chances of crashing.This designed will
allow the rider to reduce lap times as a result of better grip and more
confidence. One of the greatest features of this slipper is reducing
over-torquing of the engine and will assist the engine by shifting
incorrect gear is nearly impossible.
Slipper Clutch Design will prevent damage to the engine and gearbox by
reducing the mechanical stress caused by the back-torque of the engine
and reducing the chance of over-revving on down shifts.
Spears Racing’s slipper clutch reduces sudden forces on the inside of
the transmission and will reduce wear and tear on the transmission.
Positives of a Slipper Clutch on your Bike:
It can prevent disastrous rear wheel lock up in case of engine seizure or transmission failure.
It also reduces work of suspension by absorbing engine braking force hence less bumpy ride while cornering.
Provides better clutch feel and smoother action
The rider does not need to concentrate on clutch operation which allows
him to concentrate on other things such as body posture, braking etc
while cornering.
Greatly reduces stress on your chain, increasing its life
Suitable for Racing, Track, and Street riding
Uses original friction plates, drive plates, and basket (Some kits replace the OEM basket with a billet basket).

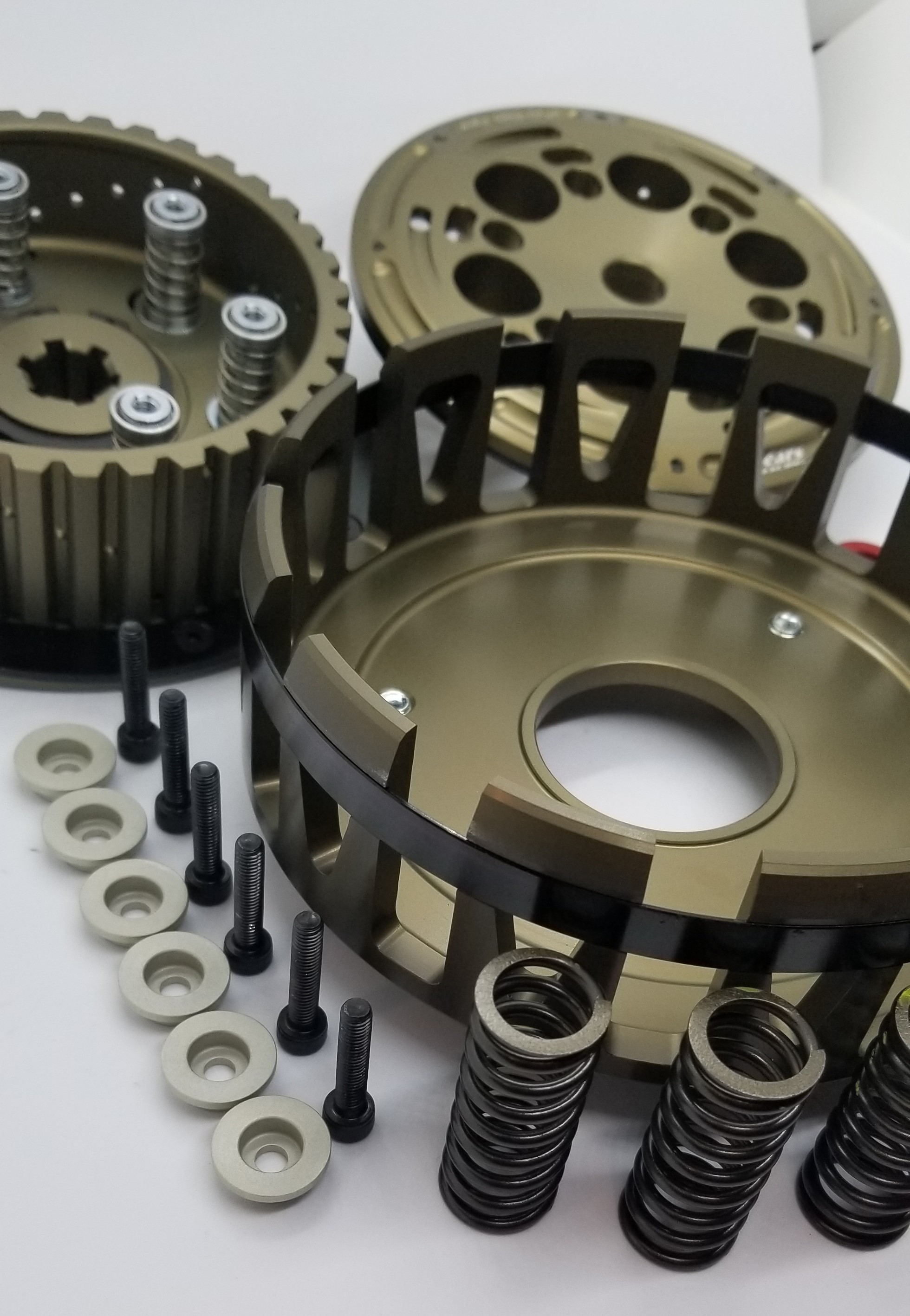

Kit consists of:
1 pc. Spears Racing Slipper
1 pc. Clutch Basket Racing
1 pc. pressure plate
3 pc. Starter Ring Gear Bolts
6 pcs. spring Tops set
6 pcs. spring Tops set for more preload ( more engine back torque )
6 pcs. bolt M6
6 pcs SP20-650 Springs
1 tube Red Loctite
Make | Model | Years |
---|---|---|
suzuki | gladius | 2009 - 2016 |
suzuki | sv650 | 1999 - 2012 |
suzuki | sv650 | 2016 - 2024 |
suzuki | sv650s | 1999 - 2012 |
suzuki | sv650x | 2017 - 2020 |
suzuki | v-strom 650 | 2004 - 2024 |
Tags: Spears, Racing, Wet, Slipper, Basket, Clutch, Suzuki, SV650, Gladius, DL, 650, V-Strom, Extra, Plate
