AELLA Aluminum EVO Clutch Slave Cylinder - 28 or 30mm Diameter
- Brand: AELLA
- Product Code: AE-38017
- Availability: 1
- Stock Quantity: 1
Evolved further - EVO

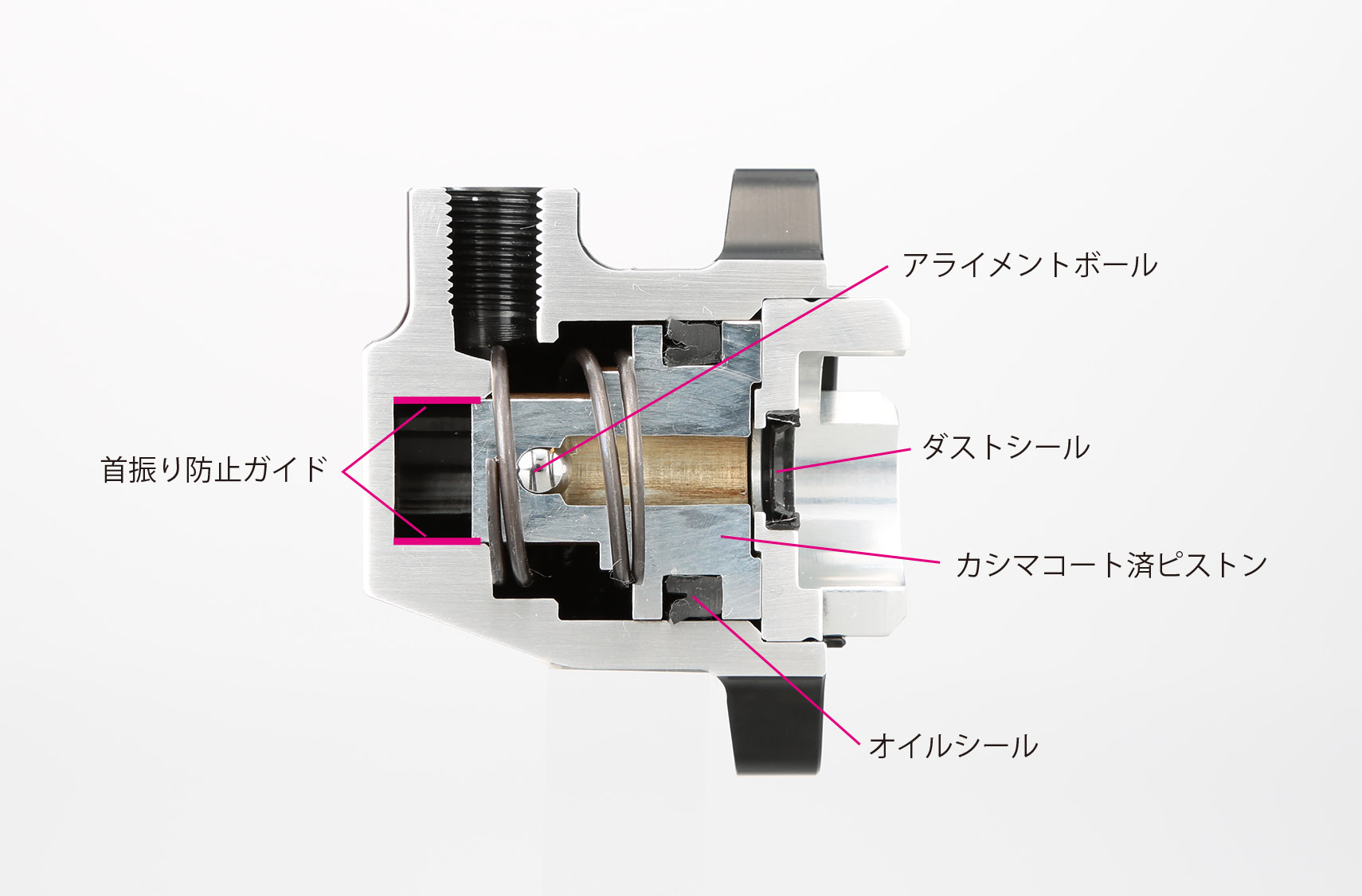

Weight has been reduced to the limit - a compact smart body with no rivals! In addition to changing the body, They feature a newly designed clutch piston shape, the adoption of an alignment ball further improves the function and feeling by bringing the contact point with the push rod into a point from the surface.
- Further Improvement of Seal
- Piston with Kashima Coat (Hard Lubrication Alumite) → Improved Usability
- Logo Engraved by Laser Marking
- Updated for 2011+ models with Push Rod Anti - Rotation Specification
- It is possible to reduce the grip strength by about 25% compared to the normal φ 26 release cylinder.
On Models before 2000, You can only use this clutch salve if
you source a Pushrod From 2001+ models (about 330mm long - varying from
model to model) we do have one Linked below in the related items
Banjo Bolt: P1.0
Please Note
There are two kinds (φ13 or φ12) of the piston diameters on the OE
master cylinder side depending on the model, so depending on the master,
Especially in a horn-tank type clutch master cylinder equipped vehicle
OR a clutch master cylinder equipped vehicle without a lever adjuster
mechanism, The piston stroke is reduced by exchanging the Slave
cylinder, which can cause premature clutch wear, so:
- Even if it is slightly bad, the operation should be light anyway us the 30 mm size
- It is lighter than genuine and it is better not to wear out use 28 mm size
Especially
- 28 mm recommended · vehicle · horn Tank type Clutch master cylinder mounted vehicle
- Clutch master cylinder not equipped with lever adjuster mechanism
- Super bike series
- Brembo RCS clutch master radial When using φ 16.
There are models in the above vehicles that can improve the badness of the clutch's disconnection by exchanging the lever with the adjuster depending on the model.
Make | Model | Years |
---|---|---|
bimota | db 10 bimotard | 2011 - 2011 |
bimota | db11 | 2013 - 2013 |
bimota | db4 | 1999 - 2001 |
bimota | db5 | 2005 - 2011 |
bimota | db5r | 2006 - 2011 |
bimota | db5s | 2006 - 2006 |
bimota | db6 delirio | 2005 - 2011 |
bimota | db6r | 2007 - 2011 |
bimota | db7 | 2007 - 2009 |
bimota | db8 | 2010 - 2013 |
bimota | db9 | 2011 - 2013 |
bimota | dbx | 2013 - 2013 |
bimota | tesi | 1990 - 1994 |
bimota | tesi 2d | 2005 - 2006 |
bimota | tesi 3d | 2007 - 2009 |
ducati | 1098 | 2007 - 2008 |
ducati | 1098r | 2008 - 2009 |
ducati | 1098s | 2007 - 2008 |
ducati | 1198 | 2009 - 2011 |
ducati | 1198r | 2010 - 2010 |
ducati | 1198s | 2009 - 2010 |
ducati | 1198sp | 2011 - 2011 |
ducati | 748 | 1994 - 2002 |
ducati | 748r | 1999 - 2003 |
ducati | 748s | 1994 - 2002 |
ducati | 749 | 2003 - 2006 |
ducati | 749 dark | 2004 - 2006 |
ducati | 749r | 2004 - 2006 |
ducati | 749s | 2003 - 2006 |
ducati | 848 | 2008 - 2010 |
ducati | 848 evo | 2011 - 2013 |
ducati | 851 | 1988 - 1991 |
ducati | 888 | 1992 - 1993 |
ducati | 907 i.e. | 1991 - 1992 |
ducati | 916 | 1994 - 1998 |
ducati | 916s | 1994 - 1998 |
ducati | 996 | 1999 - 2002 |
ducati | 996r | 2001 - 2001 |
ducati | 996s | 1999 - 2002 |
ducati | 998 | 2002 - 2004 |
ducati | 998r | 2002 - 2004 |
ducati | 998s | 2002 - 2004 |
ducati | 999 | 2003 - 2006 |
ducati | 999r | 2003 - 2006 |
ducati | 999s | 2003 - 2007 |
ducati | diavel | 2011 - 2018 |
ducati | diavel amg | 2012 - 2013 |
ducati | diavel carbon | 2011 - 2018 |
ducati | diavel cromo | 2012 - 2012 |
ducati | diavel strada | 2013 - 2014 |
ducati | gt1000 | 2007 - 2010 |
ducati | gt1000 touring | 2009 - 2009 |
ducati | hypermotard 1100 | 2008 - 2009 |
ducati | hypermotard 1100 evo | 2010 - 2011 |
ducati | hypermotard 1100 evo sp | 2010 - 2012 |
ducati | hypermotard 1100s | 2008 - 2009 |
ducati | hypermotard 796 | 2010 - 2012 |
ducati | mh900e | 2002 - 2002 |
ducati | monster 1000 | 2003 - 2005 |
ducati | monster 1100 | 2009 - 2011 |
ducati | monster 1100 diesel | 2013 - 2013 |
ducati | monster 1100 evo | 2012 - 2013 |
ducati | monster 1100s | 2009 - 2011 |
ducati | monster 1200 | 2014 - 2022 |
ducati | monster 1200r | 2016 - 2019 |
ducati | monster 1200s | 2014 - 2022 |
ducati | monster 600 | 1994 - 2001 |
ducati | monster 620 | 2002 - 2005 |
ducati | monster 695 | 2007 - 2008 |
ducati | monster 696 | 2008 - 2014 |
ducati | monster 750 | 1996 - 2001 |
ducati | monster 795 | 2009 - 2014 |
ducati | monster 796 | 2009 - 2014 |
ducati | monster 800 | 2003 - 2005 |
ducati | monster 900 | 1993 - 2002 |
ducati | monster s2r 1000 | 2006 - 2008 |
ducati | monster s2r 800 | 2005 - 2007 |
ducati | monster s4 | 2001 - 2003 |
ducati | monster s4r | 2004 - 2006 |
ducati | monster s4rs | 2006 - 2008 |
ducati | monster s4rt | 2007 - 2008 |
ducati | multistrada 1000 | 2003 - 2006 |
ducati | multistrada 1100 | 2007 - 2009 |
ducati | multistrada 1100s | 2007 - 2009 |
ducati | multistrada 1200 | 2010 - 2017 |
ducati | multistrada 1200 enduro | 2016 - 2018 |
ducati | Multistrada 1200 enduro Pro | 2018 - 2018 |
ducati | multistrada 1200 granturismo | 2013 - 2014 |
ducati | multistrada 1200 pikes peak | 2012 - 2017 |
ducati | multistrada 1200s | 2010 - 2017 |
ducati | multistrada 1200s d air | 2015 - 2017 |
ducati | multistrada 1200s sport | 2011 - 2012 |
ducati | multistrada 1200s touring | 2011 - 2014 |
ducati | multistrada 620 | 2005 - 2006 |
ducati | paso 906 | 1988 - 1990 |
ducati | paul smart 1000le | 2006 - 2006 |
ducati | sport 1000 | 2006 - 2008 |
ducati | sport 1000s | 2007 - 2009 |
ducati | st2 | 1997 - 2003 |
ducati | st3 | 2004 - 2007 |
ducati | st3s | 2006 - 2007 |
ducati | st4 | 1999 - 2003 |
ducati | st4s | 2002 - 2005 |
ducati | streetfighter 1098 | 2009 - 2012 |
ducati | streetfighter 1098s | 2009 - 2012 |
ducati | streetfighter 848 | 2012 - 2015 |
ducati | supermono | 1993 - 1995 |
ducati | supersport 1000 / 1000ss | 2003 - 2006 |
ducati | supersport 600 / 600ss | 1989 - 1999 |
ducati | supersport 620 / 620ss | 2003 - 2003 |
ducati | supersport 750 / 750ss | 1999 - 2002 |
ducati | supersport 800 / 800ss | 2003 - 2007 |
ducati | supersport 900 / 900ss | 1988 - 2002 |
ducati | xdiavel | 2016 - 2020 |
ducati | xdiavel s | 2016 - 2020 |
Tags: AELLA, Aluminum, Clutch, slave, Cylinder, Evo, 28, 30, Diameter
