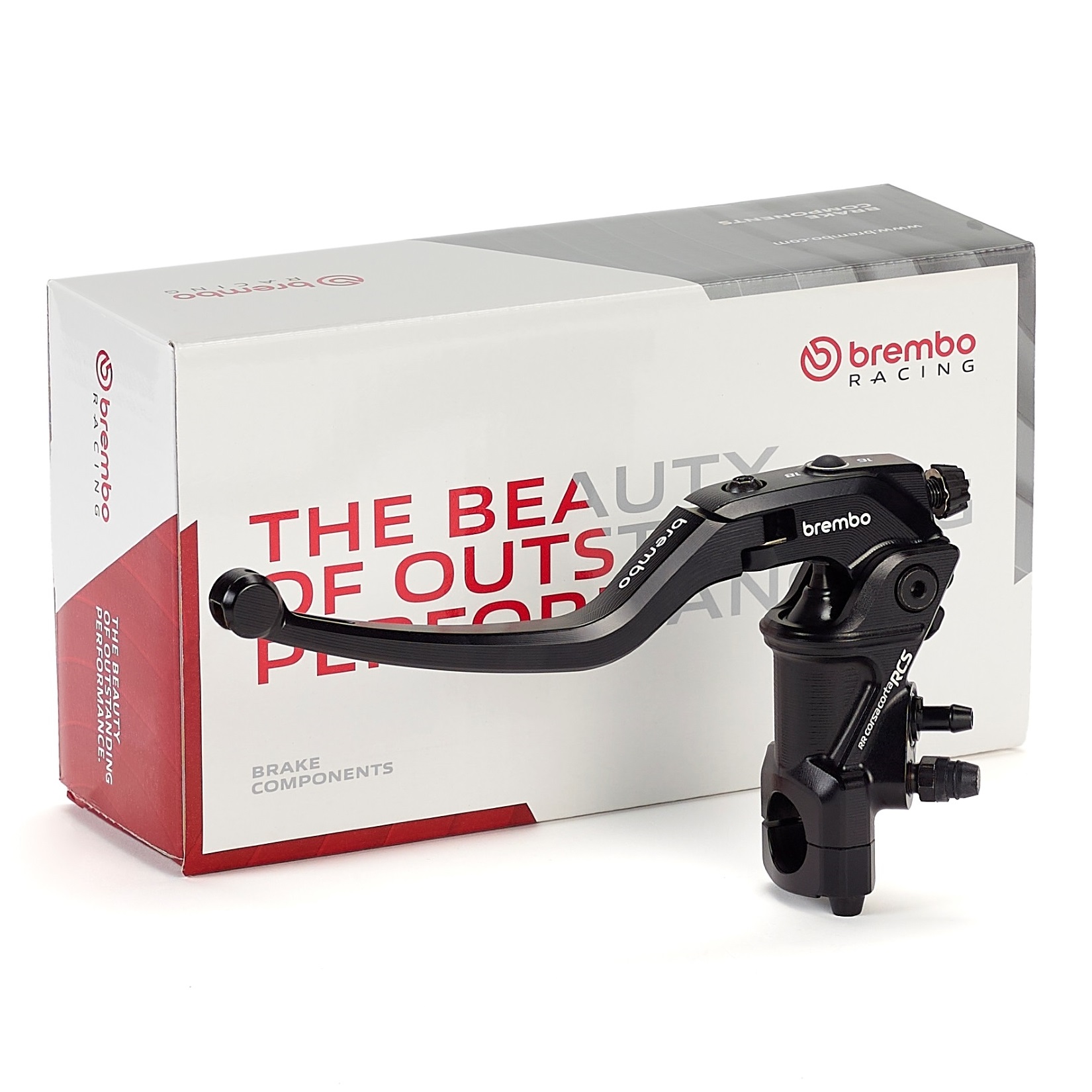

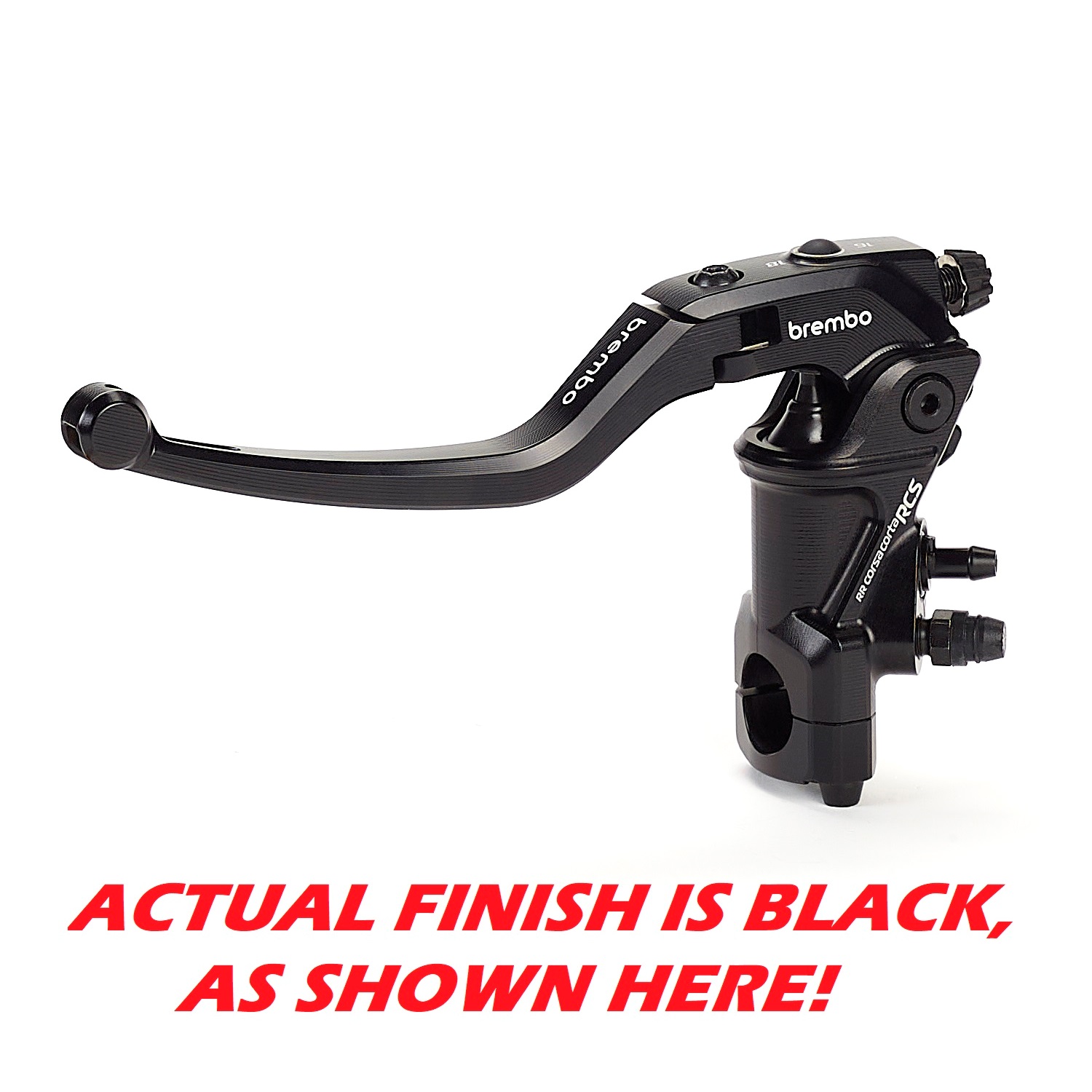

Brembo RCS Corsa Corta RR Radial Brake and Clutch Master Cylinders - Race Replica

Available June 2024!!!

Pre-orders OPEN NOW!!!

Brembo rethinks the iconic radial master cylinder, now in pure racing style

If your bike has the M50, Stylema, or GP4-MS calipers from Brembo, (like A Panigale or Streetfighter V4) you need to use the RCS 17, otherwise Choose the RCS 19

The 19mm version is designed for motorcycles with dual front calipers that have a 32mm+ diameter piston size.

The 17mm version is designed for motorcycles with dual front calipers that have a 30mm diameter piston size.

The 15mm version is designed for motorcycles with single front caliper that have a 30mm diameter piston size.

The Clutch (Left) position available in 16mm piston size.  The clutch side retains the RCS system allowing the rider to switch between 16x16 or 16x18.  The hard anodized titanium grey finish offers an identical match in style to the RCS Corsa Corta RR Brake.

There is NO provision for a switch on the clutch -If you need a switch, you can use a banjo bolt pressure switch - M10x1.0 -link below.

The floating piston and gaskets are the same as the components used in MotoGP, as are the bleed and brake fluid delivery circuit couplings. These are inclined by over 30° to facilitate bleeding of the master cylinder.

The lever, modified in shape, retains its characteristic feature that has made it famous among enthusiasts: it allows the riders to tailor the ?bite point? exactly where they want it, with an easily accessible selector on the top of the master cylinder itself. The selector operates a cam mechanism to let the user choose between three different responsiveness settings:

In the Normal setting, indicated on the master cylinder with the letter N, the bite point starts more gradually, making it suitable for city riding or braking in poor grip conditions.

In the Sport setting, indicated on the master cylinder with the letter S, the beginning of the bite point is shorter than that of the N setting. This setting produces a more dynamic response suitable for sportier riding.

Lastly, in the Race setting, indicated on the master cylinder with the letter R, the position of the cam mechanism shortens the initial stage of the bite point even further to produce the same immediate response of the master cylinders used in MotoGP, letting the rider reach the bite point of the brakes instantaneously. This setting is ideal for use on the racetrack, where every hundredth of a second shaved off a lap time counts.

By simply changing from one setting to another, the rider can configure the braking response and feel of the bike immediately and predictably.

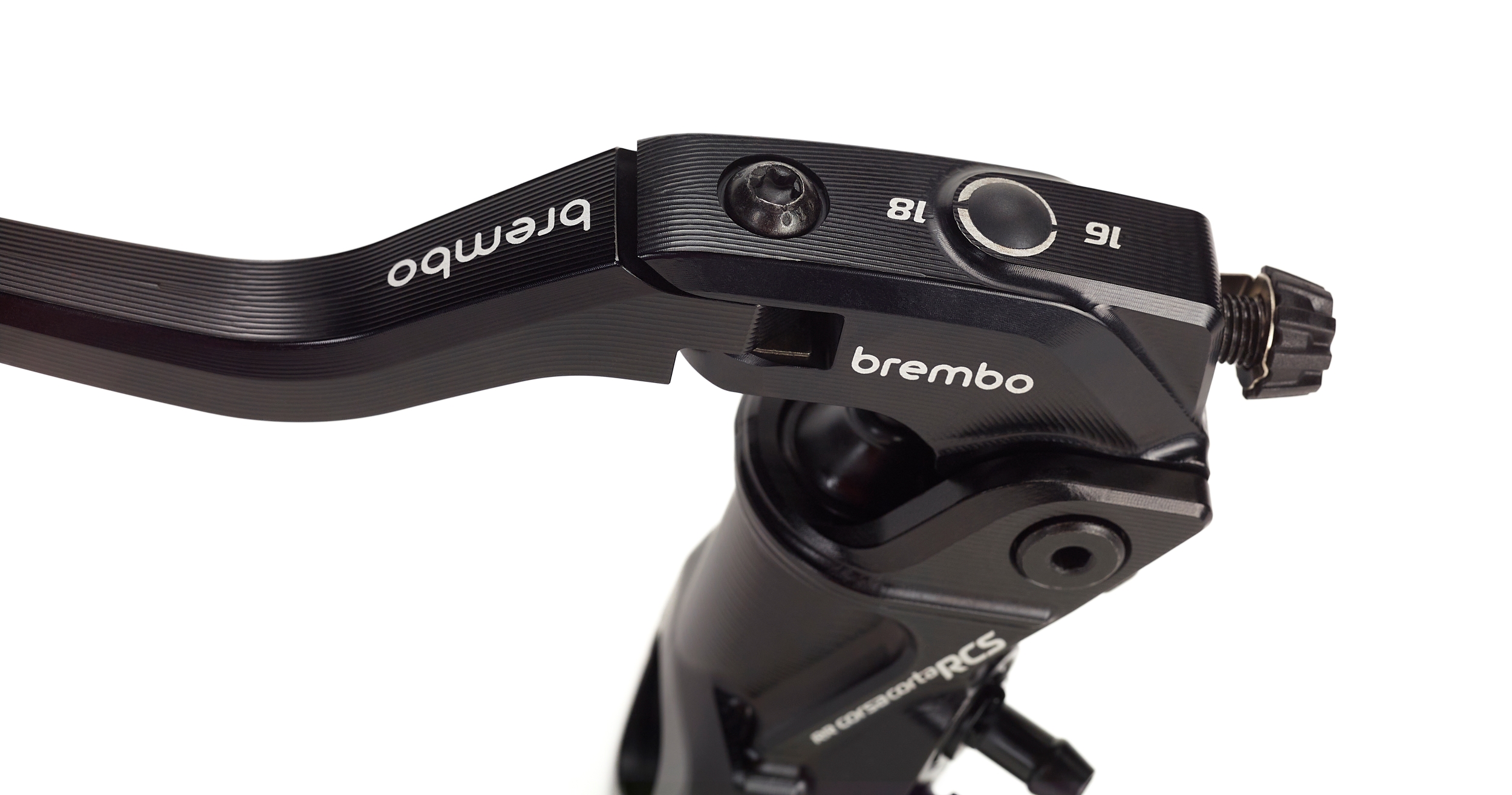

 The new Brembo RCS CORSA CORTA RR also features the RCS (Ratio Click System) system introduced 15 years ago on the Brembo 19RCS radial master cylinder. This lets the rider select a fulcrum-to-piston distance of 18 or 20 mm by simply turning the adjuster screw on the front of the guide lever by 180° with a screwdriver. The system uses a cam (on the RCS 19, red when set to 18 mm, black when set to 20 mm), which adjusts the distance between the fulcrum point and the contact point with the master cylinder push rod by 2 millimeters. This changes the distribution of the braking force without altering the performance of the system in terms of pure power.   The adjustment system allows the rider to achieve complete feeling with their bike and adapt braking performance to their riding style, the bike, the weather and road conditions, relying on three different master cylinders in one, bringing the performance of the braking system as a whole to another level. In fact, the choice of two fulcrum-to-piston measurements (18 and 20 mm) and three bite-point settings (R, S and N) offer a total of six different settings.?

The lever assembly can be replaced without removing the RCS (Ratio Click System) system from the master cylinder and, therefore, without altering the settings made during assembly of the master cylinder in the Brembo Racing workshop.    The RCS CORSA CORTA RR showcases the new Brembo logo, recently introduced and characterized by a simple and modern soul, with softer and more rounded shapes.

The Brembo radial master cylinder has revolutionized braking systems over the past few decades. Conceived originally for racing use, it has over the years become an increasingly sought-after solution for Supersports and Naked bikes. Despite its appearance on production models, the radial master cylinder is still a thoroughbred racing solution and continues to be used in MotoGP.    Now every rider can drastically improve the braking performance of their mid or large size motorcycle and benefit from the many advantages of Brembo's decades of experience in braking systems simply by replacing the original equipment radial master cylinder with a Brembo radial product.
