Staubli Dry Brake Quick Disconnect Socket with Banjo Fitting
- Brand: Spiegler
- Product Code: SPH03.DB
- Availability: 2-3 Days
- Stock Quantity: 0
GP Style Quick Disconnects from Staubli
Don't jeopardize your health with cheap knock offs! The Staubli connectors have a Swiss design and are made in France. Tested and proven in Motorsport.

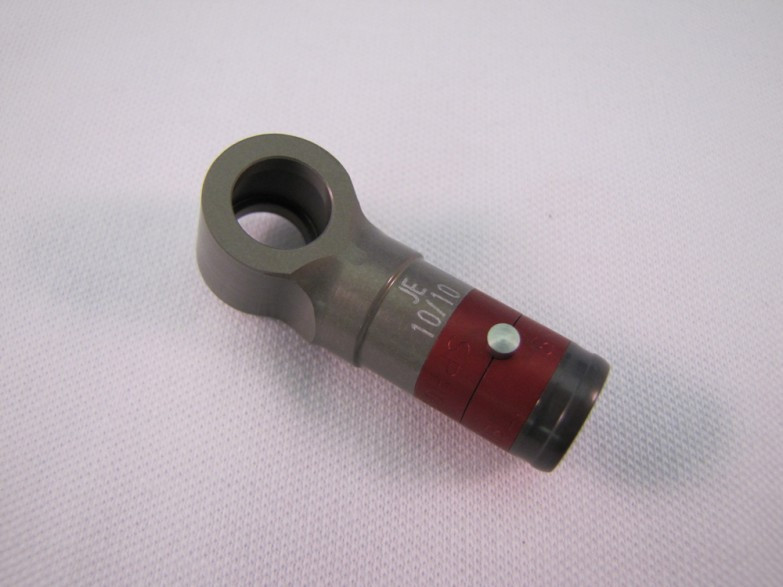

Dry Brake Socket / quick disconnect, with 20 degree banjo fitting, billet aluminum, anodized.
This banjo fitting (10mm, 3/8") quick disconnect can be bolted to the caliper directly; a longer banjo bolt is required. Ducati OE has this Part code which will work (you have to order it from Ducati) - 77910201A - it is M10x1.0

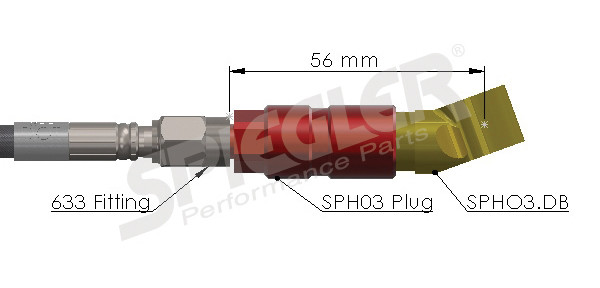

The external thread-end connecting to the brake line needs Spiegler fitting type 633.
As the connecting counterpart you would need dry brake plug part number SP03 PLUG.
Swiss design, made in France.
Don't settle for the cheap knock-offs which are flooding the market. We had professional race teams replacing those knock-offs after they started leaking with our Staubli products. Peace on mind.
VERY COMPACT AND LIGHT DESIGN

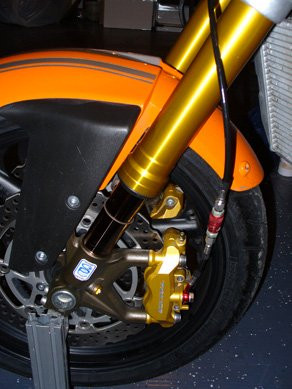

The Staubli quick coupling features a very compact and light weight plug. It is especially designed for applications where the plug stays on the motorcycle/car during racing, the socket being mounted on the pit tools. Used in such high end applications such as MotoGP.
NO SPILL DESIGN
The flush face design ensures that no air can get into the system when connecting as well as no leakage when disconnecting. This eliminates the need to purge the system and permits the use of pre-filled hoses. Don’t lose any time in the pits during an Endurance race when you have to change your Master Cylinder or calipers in case of a crash or even a pad change.
BAYONET LOCKING SYSTEM
Quick and easy to connect, just push and twist, no tools required. Durable and reliable, the bayonet locking system is also suitable for high vibration applications.
CLEAN-BREAK BLEED COUPLINGS
New from Staubli: The clean-break coupling dedicated to brake line bleeding. Clean-break, non spill design for a maximum safety. Prevents any loss of brake fluid and ingress of air on connection and disconnection. A screw cap protects the flat face in the uncoupled position.
