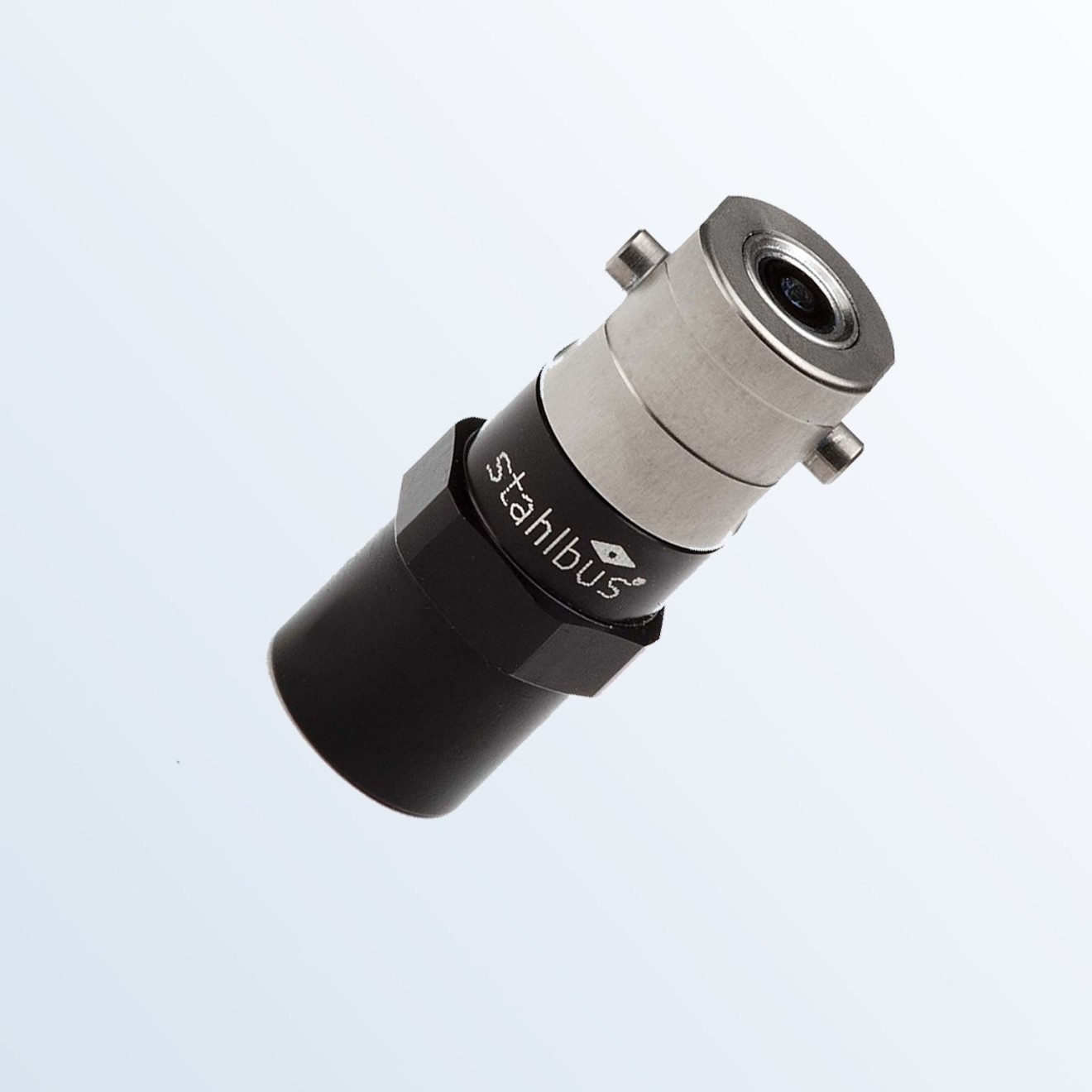

Stahlbus Dry Brake Quick Disconnect Socket - Female Thread

Designed for racing Stahlbus quick disconnect couplings offer maximum comfort with maximum internal cross-section of 3.5 mm and minimum size. In combination with its counterpart the quick disconnect coupling is absolutely tight without spilling any fluid and  no air can get in.

Delivery:
S-Link Type

The complete quick disconnect coupling is always a combination of one Plug and one Socket -  Please order for a complete quick disconnect coupling the matching coupler separately (links below)

Also available are Male Threaded Banjo Bolt Ends

Technical Data:

•  Nominal diameter: 3,5mm (for Dash 3)
•  Seal: EPDM (resistant against brake fluid)
•  Connecting thread: 3/8" 24 UNF female
•  Material: Aluminum
•  Coupling type: Bayonet
•  max. Operating pressure: 220 bar
•  Length in the coupled state: 63 mm
•  max. Outer diameter: 15 mm
•  Weight complete coupling: 18 g:
•  Operating temperature: -50 C° bis +150 C°
