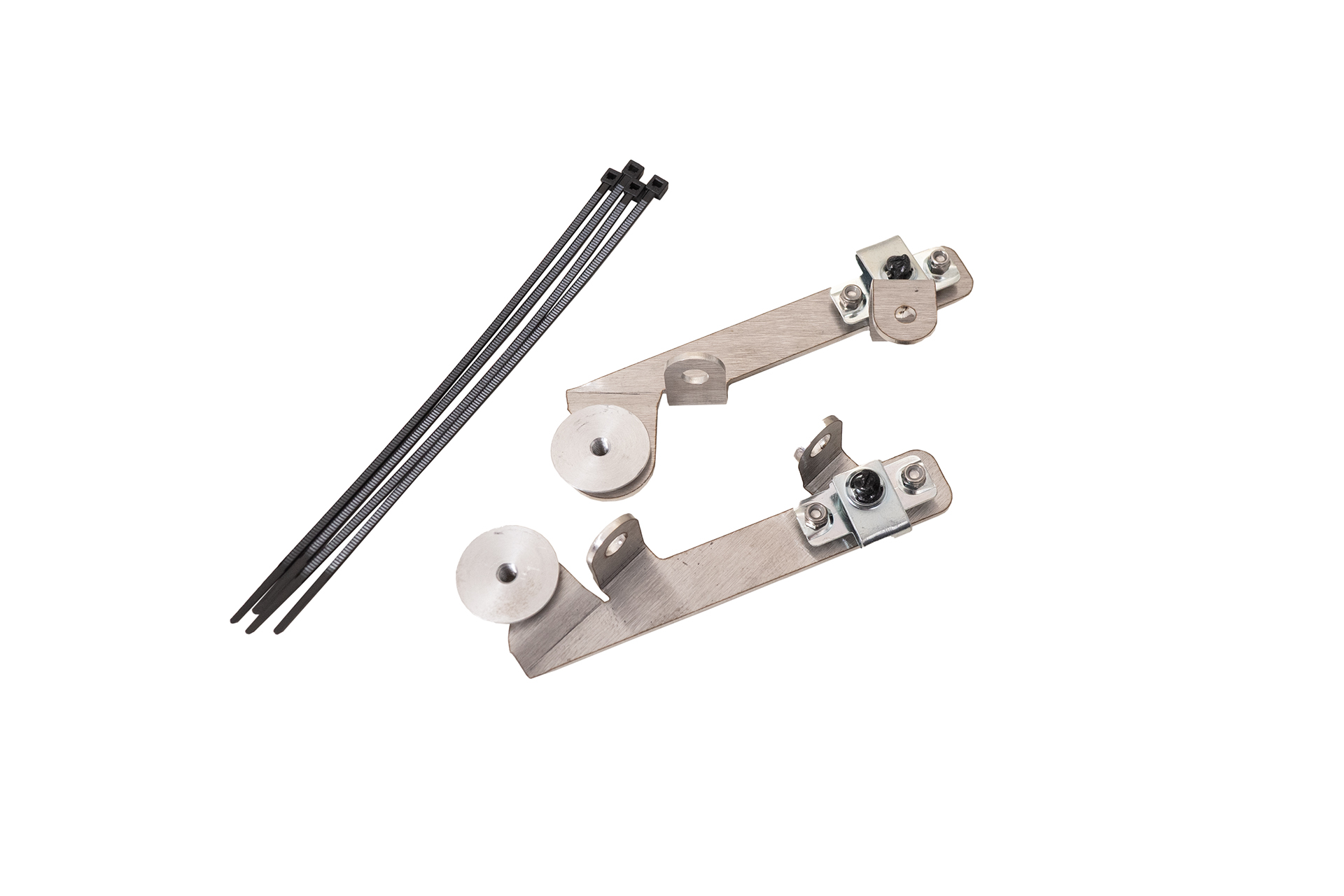

Evotech Srl Front Fender (Mudgaurd) Quick Release Kit for the Ducati Panigale V4 (2025+)
- Brand: Desmo Veloce
- Product Code: CT-016
- Availability: 2-3 Weeks
- Stock Quantity: 0
Allows quick removal of the front mudguard. Specifically designed for racing applications, this fixing system optimises fork removal operations and routine bike maintenance procedures, significantly reducing intervention times.
MOUNTING
LEFT SIDE:
- Remove the original bracket that supports the phonic wheel sensor.
- Re-fix the phonic wheel sensor to the Evotech bracket using the clamp included in the kit.
RIGHT SIDE:
- Remove the original bracket and replace it with the Evotech bracket supplied.
NOTE FOR BOTH SIDES: For fixing both brackets, use the original screws.
MUDGUARD:
- Remove the brake pipe bracket from the mudguard and invert its position.
Fasten the cables securely to the inverted bracket using cable ties. This operation maintains the functionality of the quick release even on the “'street”' version of the bike. (Usually, on the race version, the brake hose system is modified, making it unnecessary to attach it to the mudguard).
To attach the bushing supplied in the CT-016 kit, use the original screw and bushing.
| Make | Model | Years |
|---|---|---|
| ducati | panigale v4 | 2025 - 2026 |
| ducati | panigale v4 r | 2026 - 2026 |
| ducati | panigale v4 s | 2025 - 2026 |
