Kendon Stand-Up™ Dirt Bike Trailer, Sport Bike & Scooter Trailer
- Brand: Kendon Stand-Up Motocycle Trailers
- Product Code: DB507
- Availability: 1-2 Weeks
- Stock Quantity: 0
3-Rail Folding Combo Off Road Trailer and Dual Sport Trailer for Dirt Bikes and Adventure Touring Applications.
Loading Capacity: 1,500 lbs
Standing Height: 88 inches
Max Width: 84 inches
Max Length: 110 inches
Depth: 27 inches
Three-Rail Dirt Bike Trailer Features at a Glance
- Patented independent torsion bar suspension
- Integrated casters for easy maneuverability in storage
- Lightweight design and construction for simple, one-person operation
- 13-inch alloy wheels with radial tires; select from four different styles!
- 3-year and 5-year Factory Extended Warranty available
- Three Rails with integrated wheel chock system for up to three full size dirt bikes, two sport bikes, or one heavyweight cruiser
- Full 1,500 lb. carrying capacity for up to three bikes and/or cargo
- Removable center rail for additional cargo room
- Included push-on operation loading ramp (stored under trailer)
- Industrial-grade powder coating finish
- Kendon’s legendary towing performance
- Handcrafted in California; Made in USA
Tow in Style!
Fully customize your trailer the way you want it at NO extra cost.** Select from a range of color options and four alloy wheel styles. Can’t choose just one color? Choose two! You can select a one or two-tone color option to make your trailer stand out from the crowd.
Superior design, exceptional performance
Exceptional performance doesn’t just happen by accident, it’s a product of superior design and years of testing and refinement. Kendon’s round steel tube construction and triangulated frame geometry is inspired by racecar design and engineering. The result is a trailer that is incredibly easy to use and even easier to tow. Our years of testing and refining our frame geometry helped us develop an amazingly lightweight, incredibly strong trailer. That means a great ride for your bike and an easy tow for your vehicle. And for you that means a trailer that’s easy to stand up and maneuver in the garage.
Three’s not a crowd
The Three-Rail trailer loves company. So go ahead, load three dirt bikes, sport bikes, scooters, adventure bikes, or lightweight standard bikes and hit the road. You can even load two heavier bikes or a combination of bikes as long as you have the space and you stay below the 1,500-lbs. capacity limit. Take the family. Take some friends. Go. Ride.
Whether your heading to the track to spin laps, heading to the hills for some single track, or heading out of town for a new destination, the Three-Rail Folding Stand-Up Motorcycle Trailer is perfect for almost any adventure. And when that adventure ends, stand your Kendon trailer up, roll it away in the garage, and wait for next weekend’s fun.
Standard Features on Kendon Folding Trailers
- Patented independent torsion bar suspension
- Integrated casters for easy maneuverability in storage
- Lightweight design and construction for simple, one-person operation
- 13-inch alloy wheels with radial tires; choose from four rim styles!
- Industrial-grade powder coating finish; select your color for a unique trailer to match your style**
- Kendon’s legendary towing performance
- Handcrafted in California; Made in USA
- 3-year and 5-year Factory Extended Warranty available
Ship Weight
Dimensions

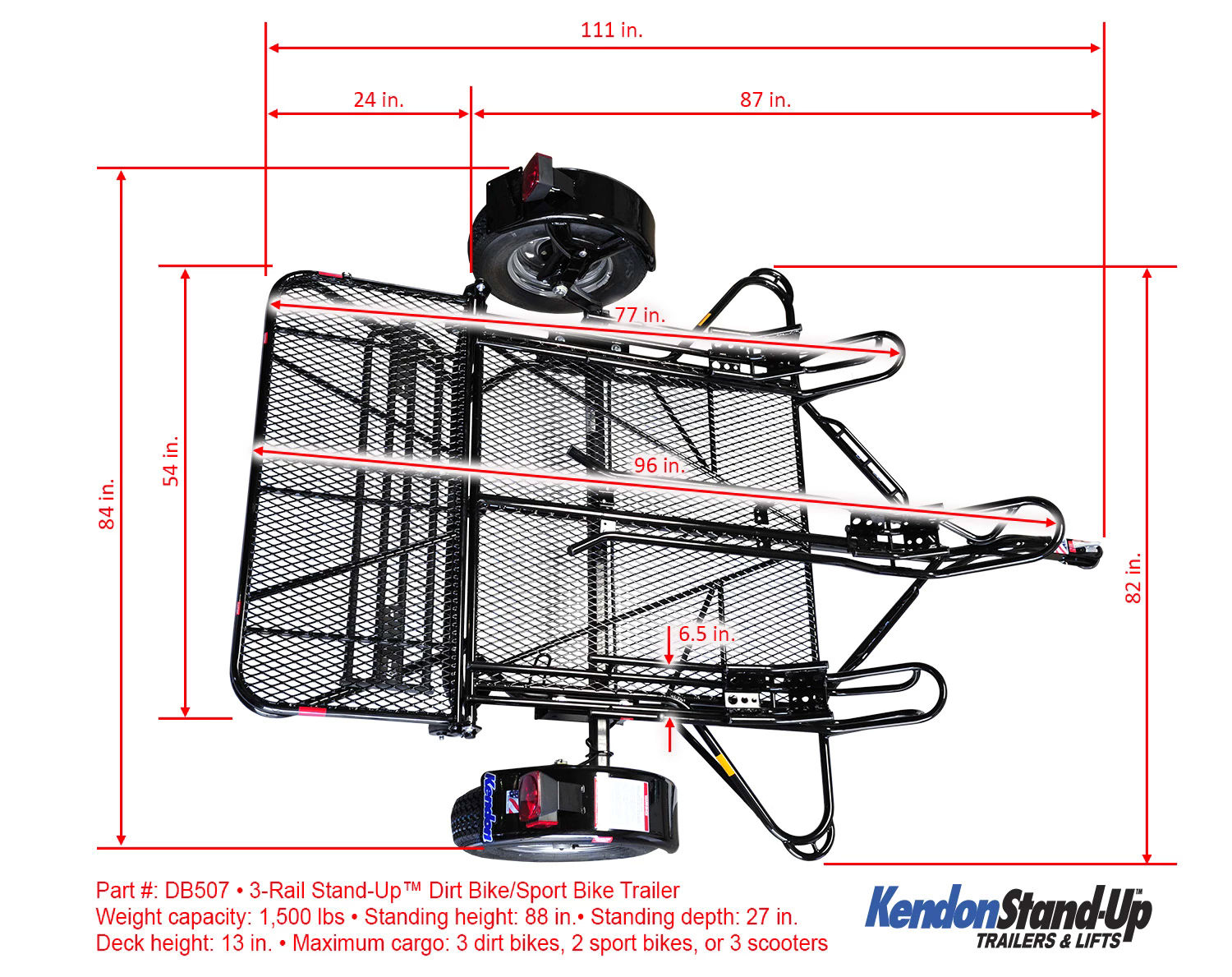

SPECS
Model: Three-Rail Dirt Bike/Sport Bike/Scooter Combo Trailer
Part Number: DB507
UPC: 608415711520
Standard Color: Black
Paint/Coating: Powder Coated
Frame Material: Steel Tubing
Deck Area: Diamond shape, 52″ x 70″
Deck/Platform Type: Expanded Metal
Deck/Platform Height: 13″
Weight: 380 lbs.
Load Capacity: 1,500 lbs.
Maximum Length: 110″
Width: 84″
Standing Depth: 27″
Standing Height: 88″
Length from Front Tire to Rear Axle: 76” side rails, 96″ center rail (Max Bike Measurement)
Width Between Fenders: 67″
Width Between Rails: Center to Outside 23″ – Outside to Outside 46″
Ramp: 1 ramp, 45″ x 10½” (included)
Wheel/Tire Size: ST175/80R13 – 13″/Radial
Wheel/Rim Type: 8-Spoke Chrome/Steel
Wheel Bolt Pattern: 5-on-4½”
Hitch Class: Class 2 or Higher (recommended)
Hitch Height: 19″ – 21″
Coupler/Ball Size: 2″
Coupler: Requires 2″ Ball
Electrical Connector: 4-Pin Flat
Suspension Type: Independent Torsion Suspension
Suspension Mounts: Double Mounting Brackets
End-Units/Hubs: Removable Spindle – SuperLube
Tongue Weight: 10% – 15% of Total Load Weight (approximate)
Transportation Capabilities: Up to three (3) Dirt Bikes, two (2) Sport Bikes, three (3) Scooters, one Cruiser style Bike, and/or Cargo
Disclosures
Note:
1.) Manufacturer’s Suggested Retail Price (MSRP) excludes destination freight charges, tax, title, license, handling, dealer fees and optional equipment.
2.) Maximum Length refers to the unfolded/open trailer length measured from the front of the coupler to the back of the rear folding section.
3.) Max bike measurement is measured from the front of the motorcycle’s front tire to the center of the rear axle.
4.) 5-Spoke Aluminum Wheel with Radial Tire upgrade is available for all Kendon trailers.
5.) Hitch Height refers to the standard hitch height, which may vary with vehicle, trailer, and load. Trailer should be level in tow. Check carefully before towing.
6.) Due to the vast number of different vehicles, trailer applications, capabilities and functions may vary. Please contact Kendon with your specific application to ensure the product fits your needs.
Photos shown are representational photos only. Kendon reserves the right to technical changes and model changes. Models shown equipped with standard equipment only. Optional equipment not included. Accessories are optional. This Site and all the information it contains is provided for information purposes only on an “as is” basis and could include technical, typographical or other errors. In certain areas, the information provided may represent an opinion or judgment. Kendon, information providers and their agents make no warranties, representations, or guarantees of any kind, express or implied, including but not limited to, accuracy, currency, or completeness, the operation of the Site, the information, materials, content, availability, and products. To the extent permitted by applicable law, Kendon disclaims all warranties, expressed or implied, including but not limited to, implied warranties of merchantability and fitness for a particular purpose.

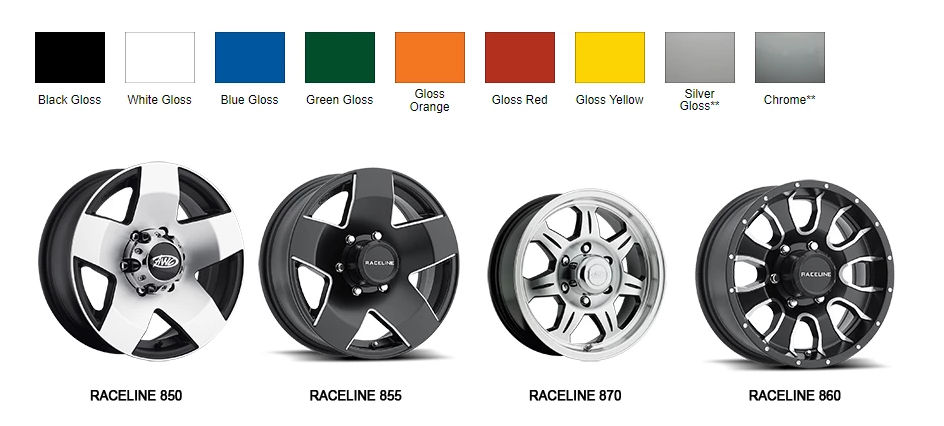

Color
Gloss Black, Gloss White, Gloss Blue, Gloss Orange, Gloss Red, Gloss Yellow, Gloss Green, Silver**, Chrome**
Rim Style
Chrome Steel, Aluminum Raceline 850, Aluminum Raceline 855, Aluminum Raceline 870, Aluminum Raceline 860
Note:
*Free freight to contiguous 48 USA states via standard LTL ground freight with delivery to a residence (liftgate included), local freight terminal or business only (must specify if business has forklift access or requires liftgate). Home delivery may not be available/not guaranteed to all locations. Home deliveries, where possible, are curb-side-only; inside delivery or additional requests may incurr additional charges.
**Additional cost may apply to non-standard and custom colors. Kendon does not guarantee 100% color match on/to vehicles.
All products are shipped FOB (Freight On Board) Placentia, California. Kendon does not guarantee shipping and/or transit times. Customer is responsible for any additional freight charges. Residential deliveries, where possible, are curb-side-only. Due to the large size and height of Kendon trailers, Kendon cannot guarantee that a trailer can be shipped and delivered to all business and residential locations throughout the United States. Due to equipment and area limitations, residential deliveries with a lift gate cannot be guaranteed to all locations. If unsure, please contact Kendon for a freight quote and to verify that a trailer can be delivered to your location. Kendon does not accept returns without an RGA (Return Goods Authorization) number. Customer is responsible for return freight. Returns may be subject to 20% restocking fee.
Product Videos
Tags: 3-Rail Trailer, Dirt Bike Trailer, Folding Trailer, made_in_usa, Motorcycle Trailer, premium-series, Scooter Trailer, Sport Bike Trailer, Stand Up Trailers
