Kendon Dual Ride-Up SRL Folding Motorcycle Trailer
- Brand: Kendon Stand-Up Motocycle Trailers
- Product Code: BB207RU
- Availability: 1-2 Weeks
- Stock Quantity: 0
Dual Rail Ride-Up SRL Stand-Up™ Motorcycle Trailer for Cruisers, incl. Harley, Goldwings and Sport Bikes.
Two-Bike Ride-Up SRL Folding Stand-Up™ Motorcycle Trailer Features at a Glance
- Suspension Reactive Loading frame geometry technology
- Extra-wide, three-piece, folding loading ramp
- Rear section extension and over-the-axle foot extensions for foot placement throughout loading/unloading
- Two removable rails with integrated front wheel chocks
- Full 2,000 lb. carrying capacity for up to two full size bikes or cargo use
Kendon Patented Trailer Chassis Design
Fully customize your trailer the way you want it at NO extra cost.** Select from a range of color options and four alloy wheel styles. Can’t choose just one color? Choose two! You can select a one or two-tone color option to make your trailer stand out from the crowd.
Thanks to our Suspension Reactive Loading (SRL) frame geometry and suspension design you can ride your bikes onto the trailer, making it much easier to load heavy, full-size bikes. As you ride your bike onto the trailer the suspension compresses under the weight of the bike, virtually eliminating the ramp-to-trailer apex. Once the bike is loaded, the suspension springs back up and levels the trailer.
Our Ride-Up models feature wider loading ramps, wider rear sections, and foot extensions to provide safe foot placement when you ride the bike onto or back the bike off of the trailer.
Room for two
Standard Features on Kendon Folding Stand-Up™ Trailers
- Patented Independent torsion bar suspension
- Integrated swivel casters for easy maneuverability in storage; allow for full 360-degree movement when on casters
- Lightweight design and construction for simple, one-person operation
- 13-inch aluminum wheels with radial tires; your choice of rim style!
- Industrial-grade powder coating finish; choose your color for a truly unique trailer to match your style and vehicles**
- Kendon’s legendary towing performance
- Handcrafted in California; Made in USA
- 3-year and 5-year Factory Extended Warranty available
Model: Dual Rail Ride-Up SRL Trailer
Part Number: BB207RU
Standard Color: Black
Paint/Coating: Powder Coated
Frame Material: Steel Tubing

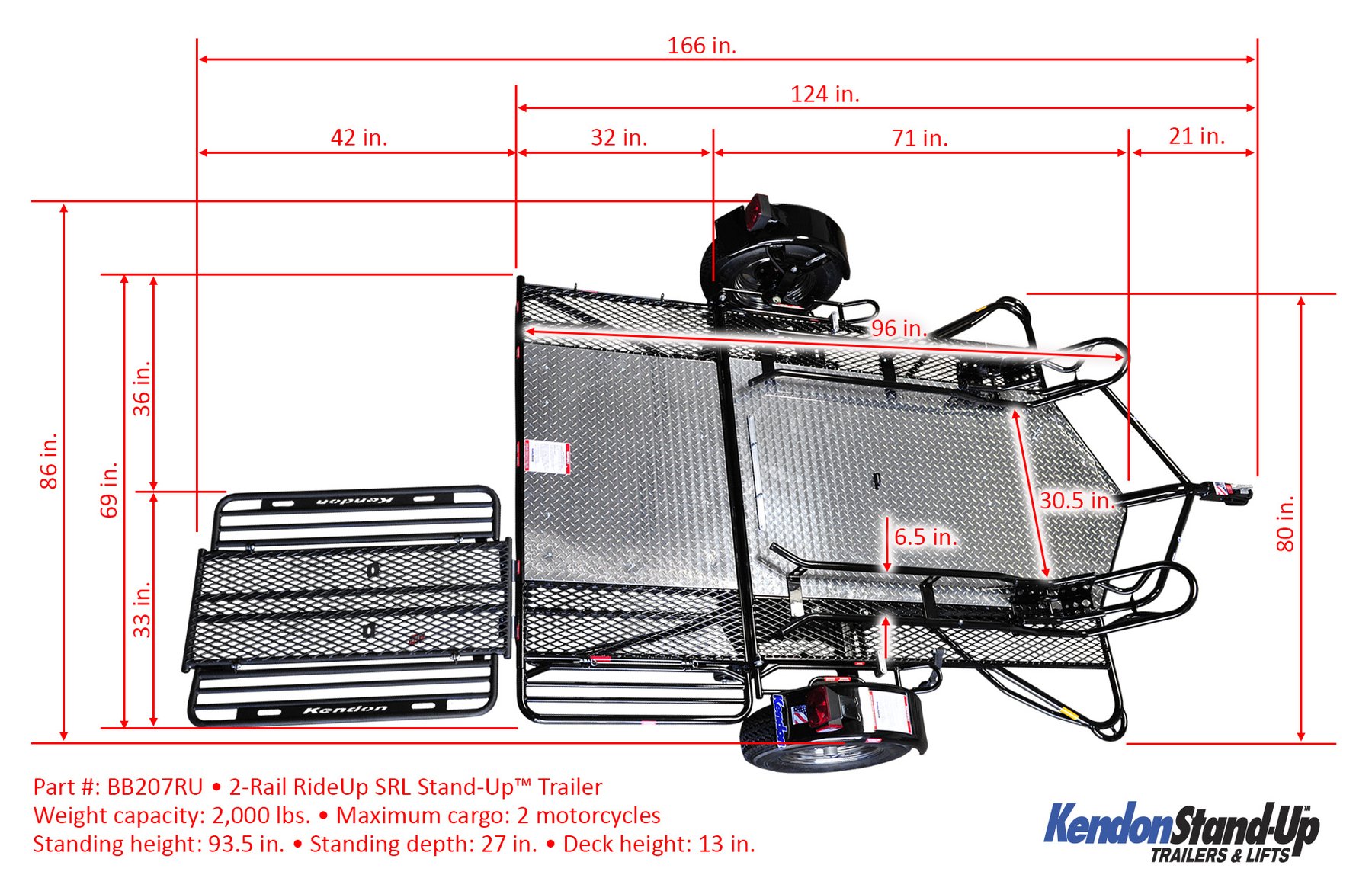

Deck Area: 60″ x 84″
Deck/Platform Type: Aluminum Diamond Plate (.063 Gage)/Expanded Metal
Deck/Platform Height: 13″
Weight: 450 lbs.
Load Capacity: 2,000 lbs.
Maximum Length: 123″
Standing Depth: 27″
Standing Height: 93½”
Length from Front Tire to Rear Axle: 95-98″ (Max Bike Measurement)
Width Between Fenders: 71″
Width Between Rails: 40″ center-to-center (removable)
Ramp: 1 ramp, 42″ x 33″ (included)
Wheel/Tire Size: ST175/80R13 – 13″/Radial
Wheel/Rim Type: 8-Spoke Chrome/Steel
Wheel Bolt Pattern: 5-on-4½”
Hitch Class: Class 2 or Higher (recommended)
Hitch Height: 19″ – 21″
Coupler/Ball Size: 2″
Coupler: Requires 2″ Ball
Electrical Connector: 4-Pin Flat
Suspension Type: Independent Torsion Suspension
Suspension Mounts: Double Mounting Brackets
End-Units/Hubs: Removable Spindle – SuperLube
Tongue Weight: 10% – 15% of Total Load Weight (approximate)
Transportation Capabilities: Up to two (2) Cruiser, Sport, Adventure Touring, Dual Sport and/or Dirt Bikes and/or Cargo
1.) Manufacturer’s Suggested Retail Price (MSRP) excludes destination freight charges, tax, title, license, handling, dealer fees and optional equipment.
2.) Maximum Length refers to the unfolded/open trailer length measured from the front of the coupler to the back of the rear folding section.
3.) Max bike measurement is measured from the front of the motorcycle’s front tire to the center of the rear axle.
4.) 5-Spoke Aluminum Wheel with Radial Tire upgrade is available for all Kendon trailers.
5.) Hitch Height refers to the standard hitch height, which may vary with vehicle, trailer, and load. Trailer should be level in tow. Check carefully before towing.
6.) Due to the vast number of different vehicles, trailer applications, capabilities and functions may vary. Please contact Kendon with your specific application to ensure the product fits your needs.
