Moto Parilla Tricolore MX E-Bike
"One of the BEST E-Bikes in the World"
Custom Graphics Available!!!
(shown with custom graphics that would cost approximately $2500 extra)
Moto Parilla Tricolore MX E-Bike
$15,499.95
+Oversize Shipping Fee of $250.00 (USA) or $850.00 (international)
- Brand: Moto Parilla
- Product Code: MP-TRICOLORE-MX
- Availability: 2-3 Days
- Stock Quantity: 0
Design vs functionality
The innovative and avant-garde curves make Tricolore a versatile vehicle for any occasion.
It is ideal for long rides through any terrain and in any weather conditions.
The suspension system, the excellent weight balance and the compactness of the vehicle make the Tricolore easy to handle even in the most technical and difficult single tracks, while the autonomy, power and torque of the powertrain system will allow you to pedal even the steepest and longest climbs.

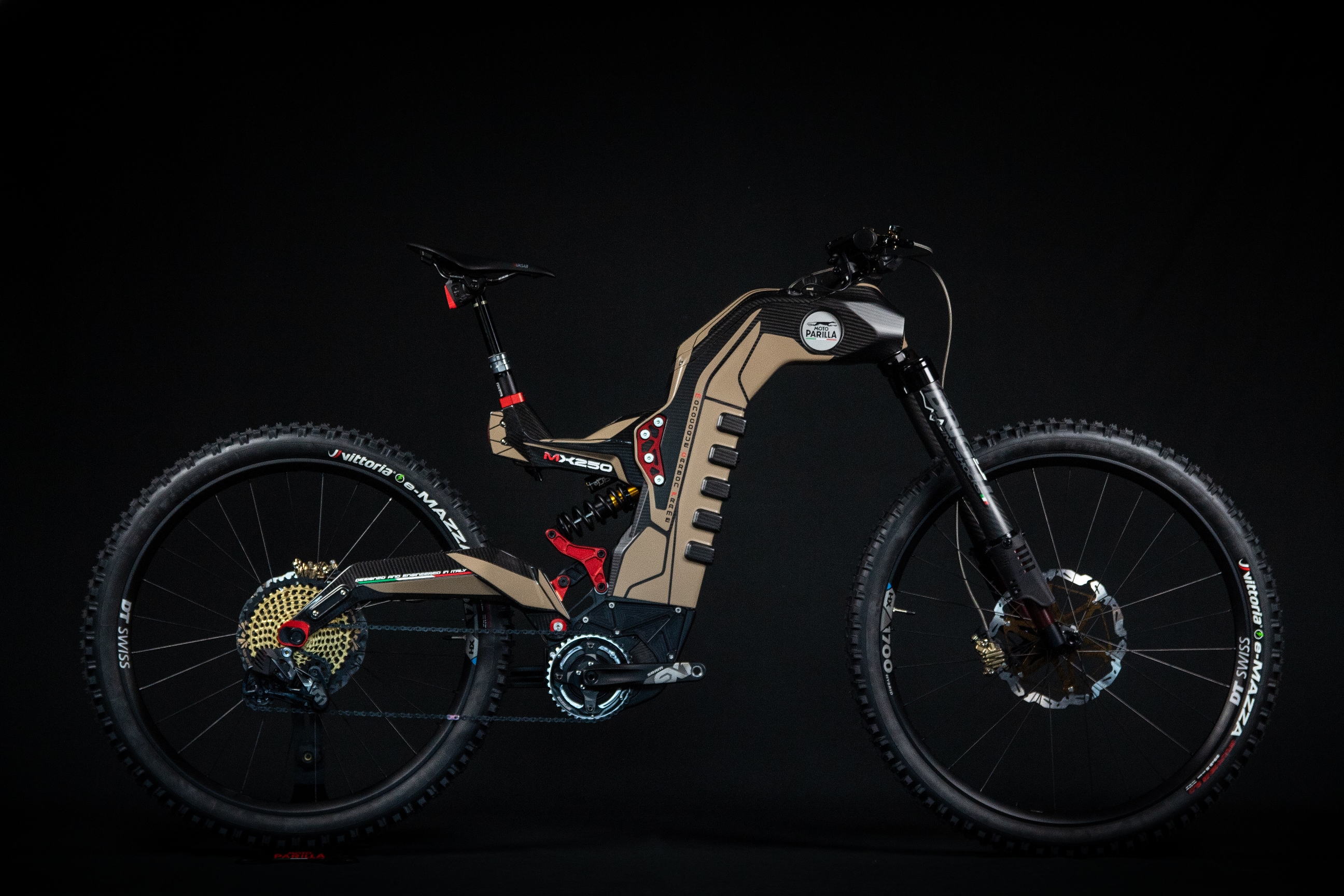

Tricolore MX Carbon Fiber Moto Parilla e-bike
(shown above with custom paint (available for additional expense))
Tricolore MX
Tricolore MX is innovation made by bike. Built for industry experts and anyone who wants the most out of their vehicle, it combines the best systems and the most important innovations in the MTB world. The distinctive Bright upside-down fork, built specifically for racing, and the billet BCA brakes ensure performance never seen before. In addition, DT-Swiss rims and SRAM XX1 electronic shifting complete the configuration taking the Tricolore MX to the next level.
TECHNICAL DATA SHEET
| FRAME | |
| Frame | Carbon fibre monocoque |

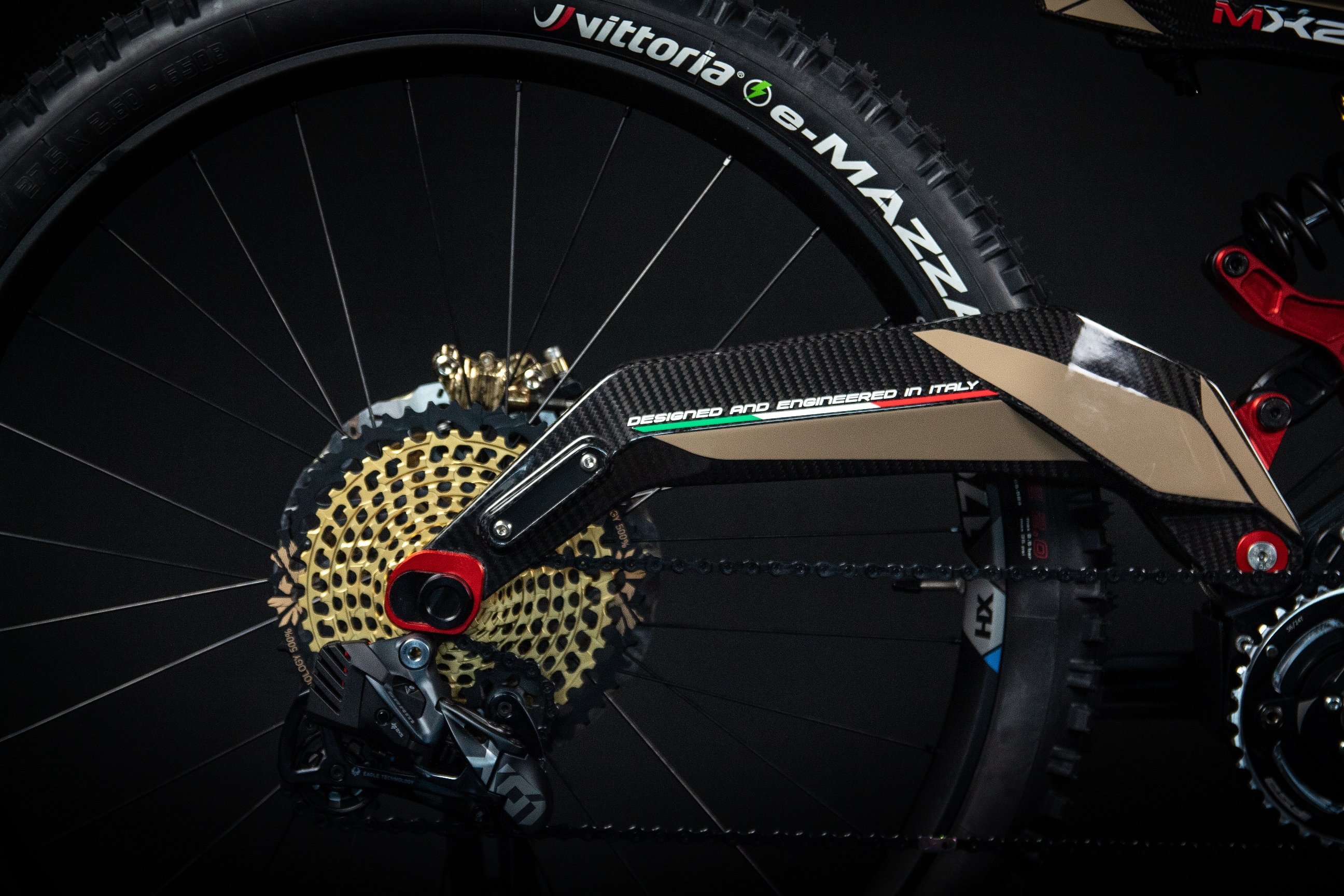

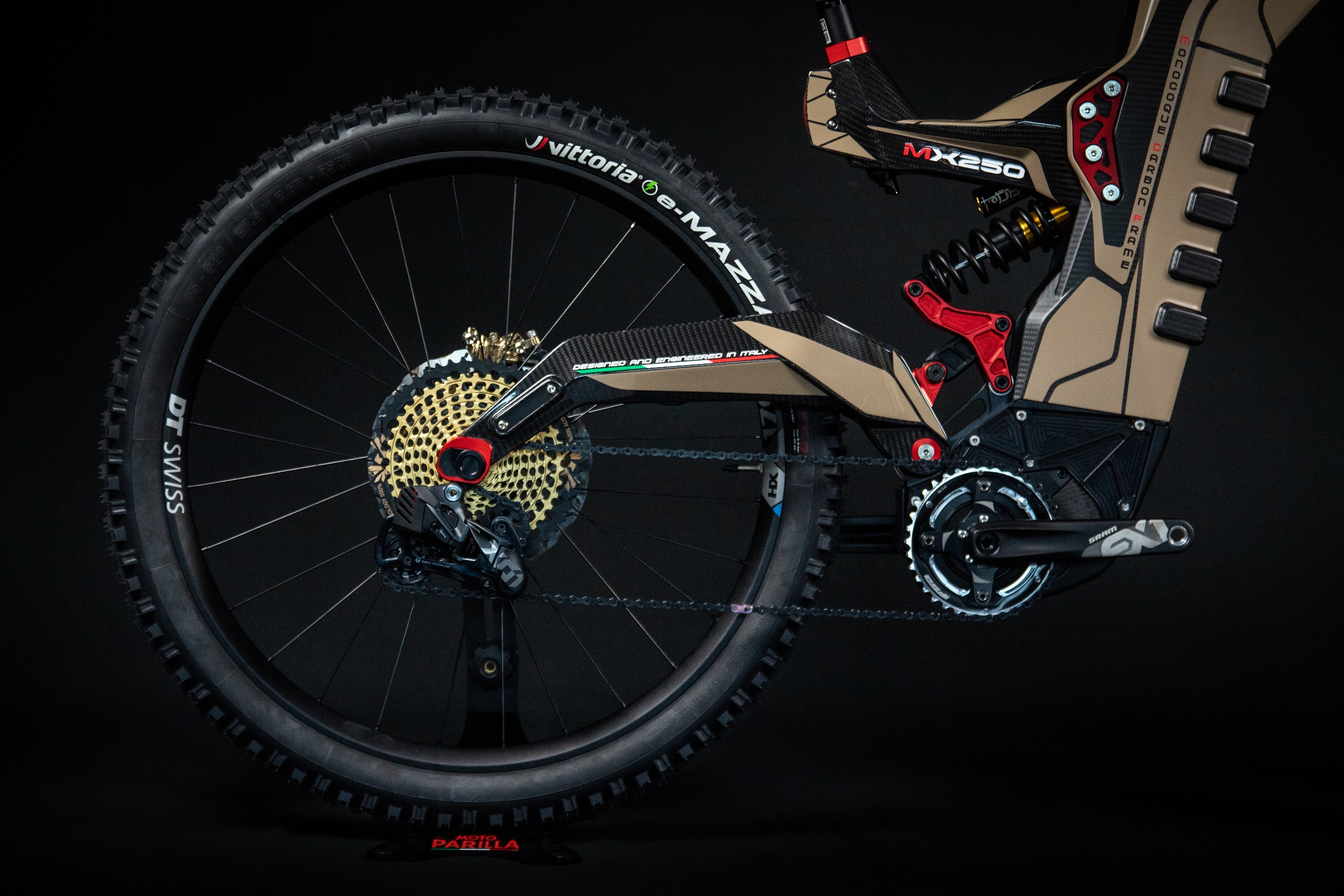

| Swingarm | Carbon fibre monocoque with aluminium reinforcements |
| Seat post frame | Carbon fibre monocoque |
| Fixed cover | Made of carbon fibre or linen fibre |
| Mobile cover | Made of carbon fibre or linen fibre |
| SUSPENSION and SADDLE | |

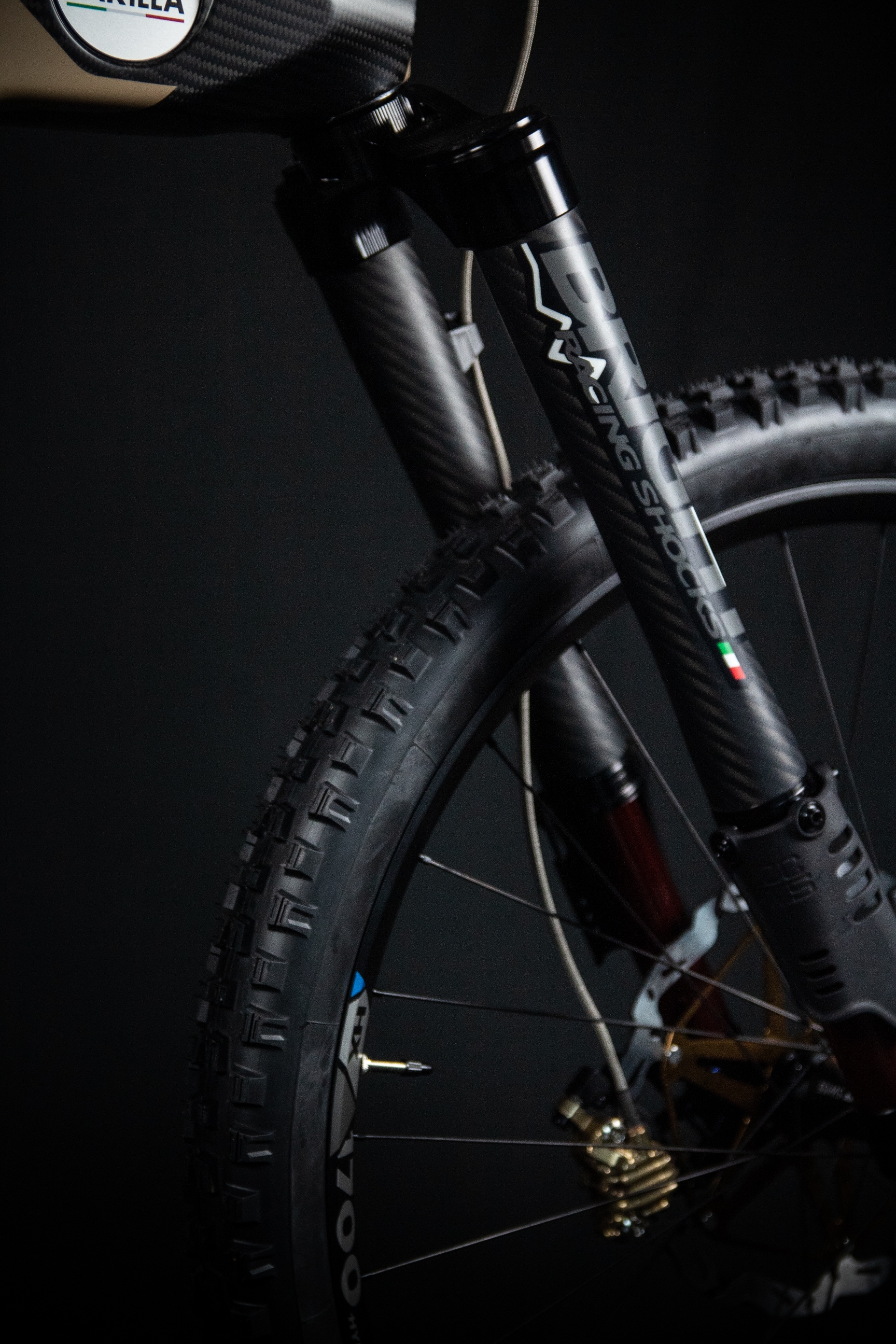

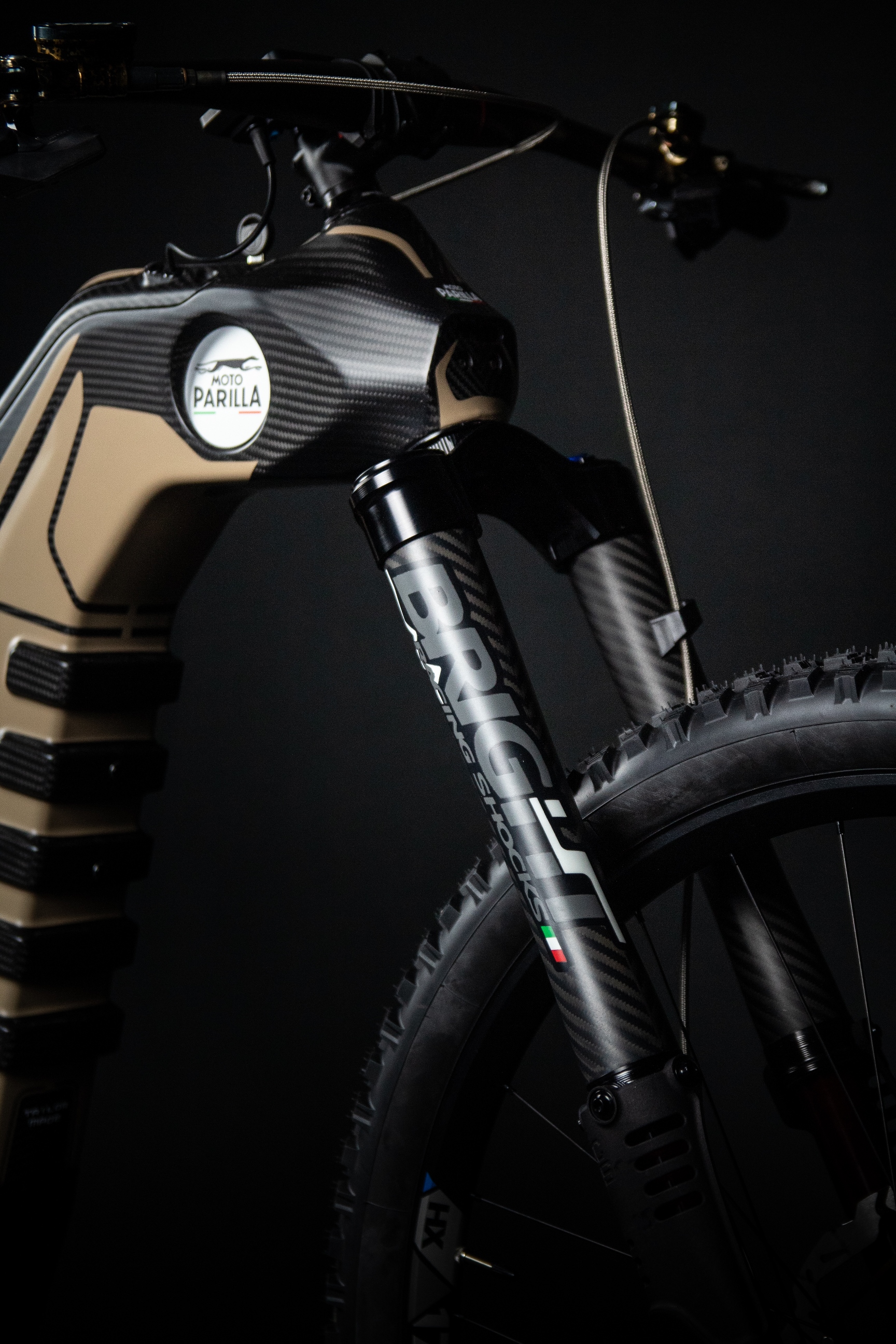

| Fork | Bright NEXT 29″ – upside-down stems |

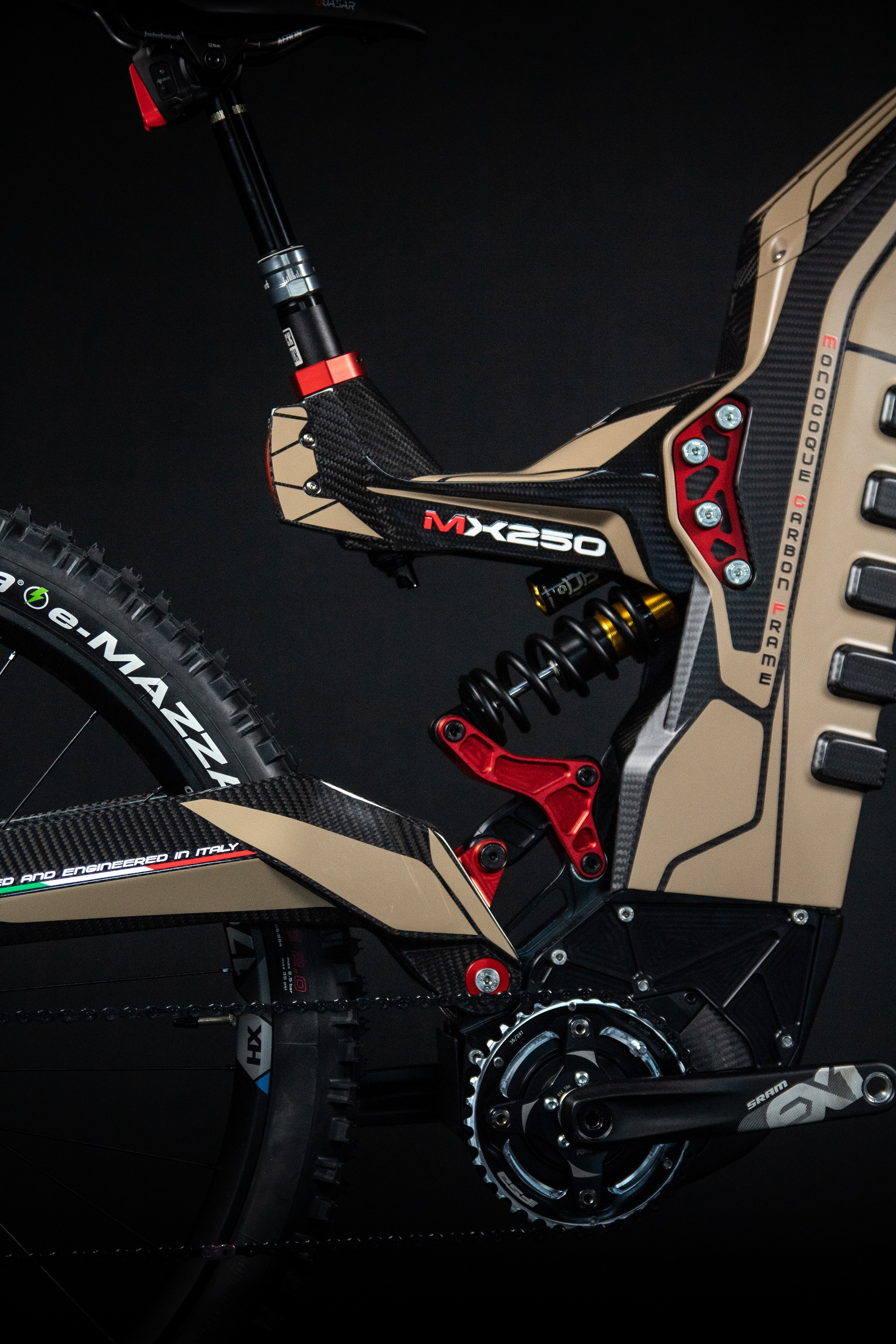

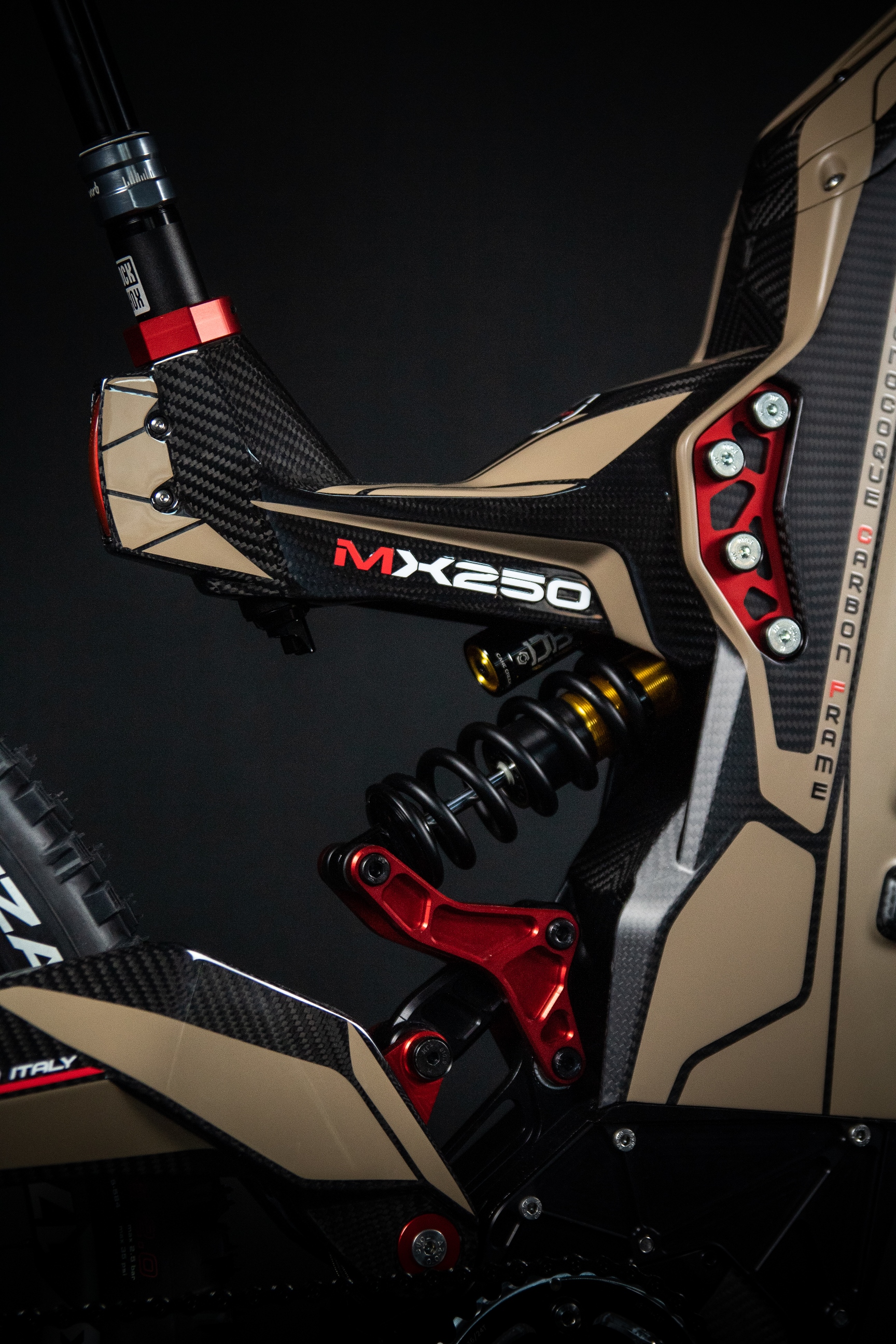

| Rear Shock | FOX Float X 210×55 Kashima – 2 pos. |
| Telescopic seat post | FOX Transfer 100 mm Kashima |
| Saddle | Rapente |
| POWERTRAIN GROUP | |
| Motor | Polini E-P3+ MX (250 Watt nominal – 600 Watt peak – 90 Nm – 36V – 5 mappings) |
| Battery | Polini 880Wh – 36V |
| Display | Polini TFT – colour – 2.5″ |
| Front light | Custom white led 12V – integrated in the frame |
| Rear light | Spanninga Pimento Red Led 12V – integrated in the seatpost frame |
| BRAKES AND DRIVETRAIN | |

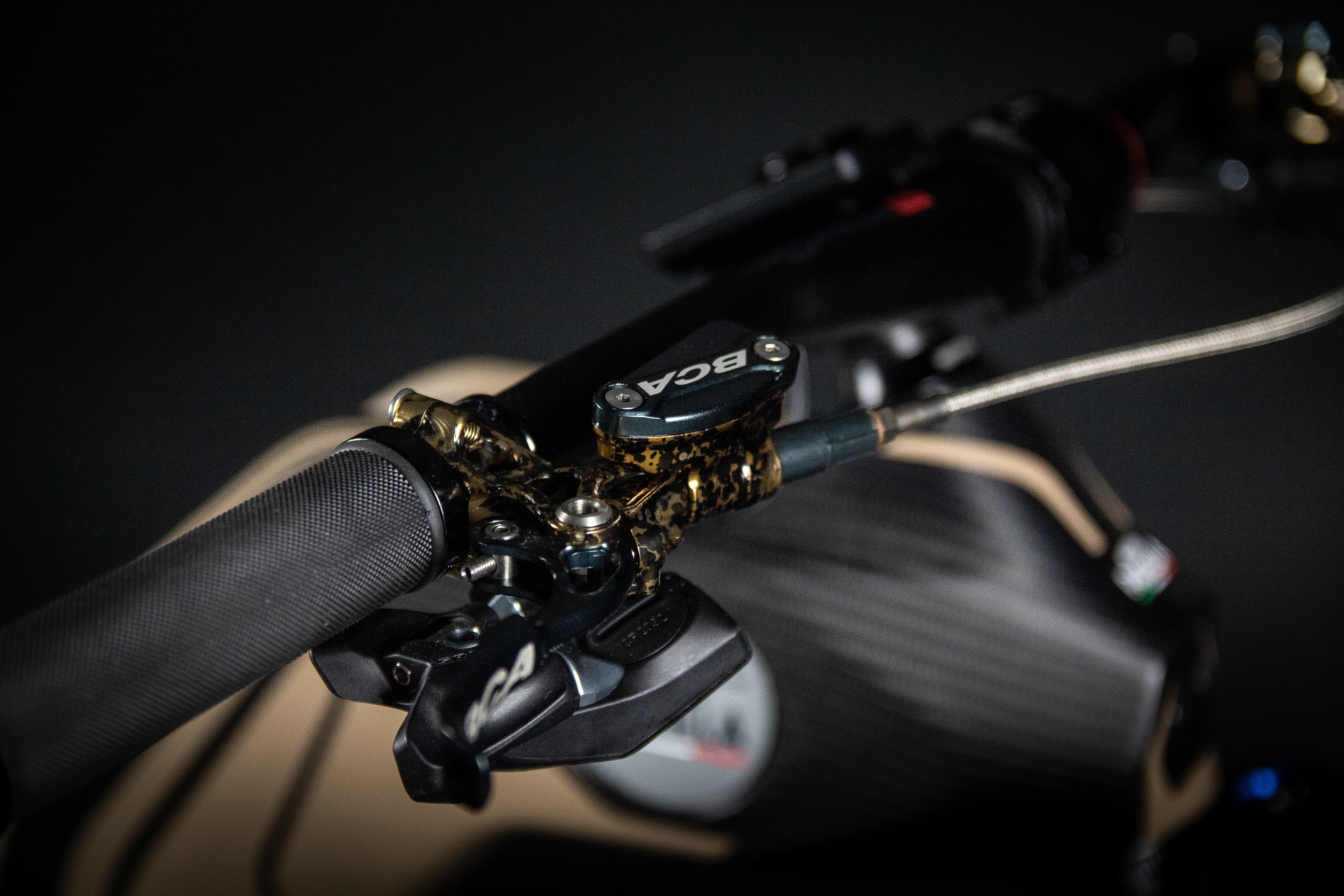

| Brakes | BCA |

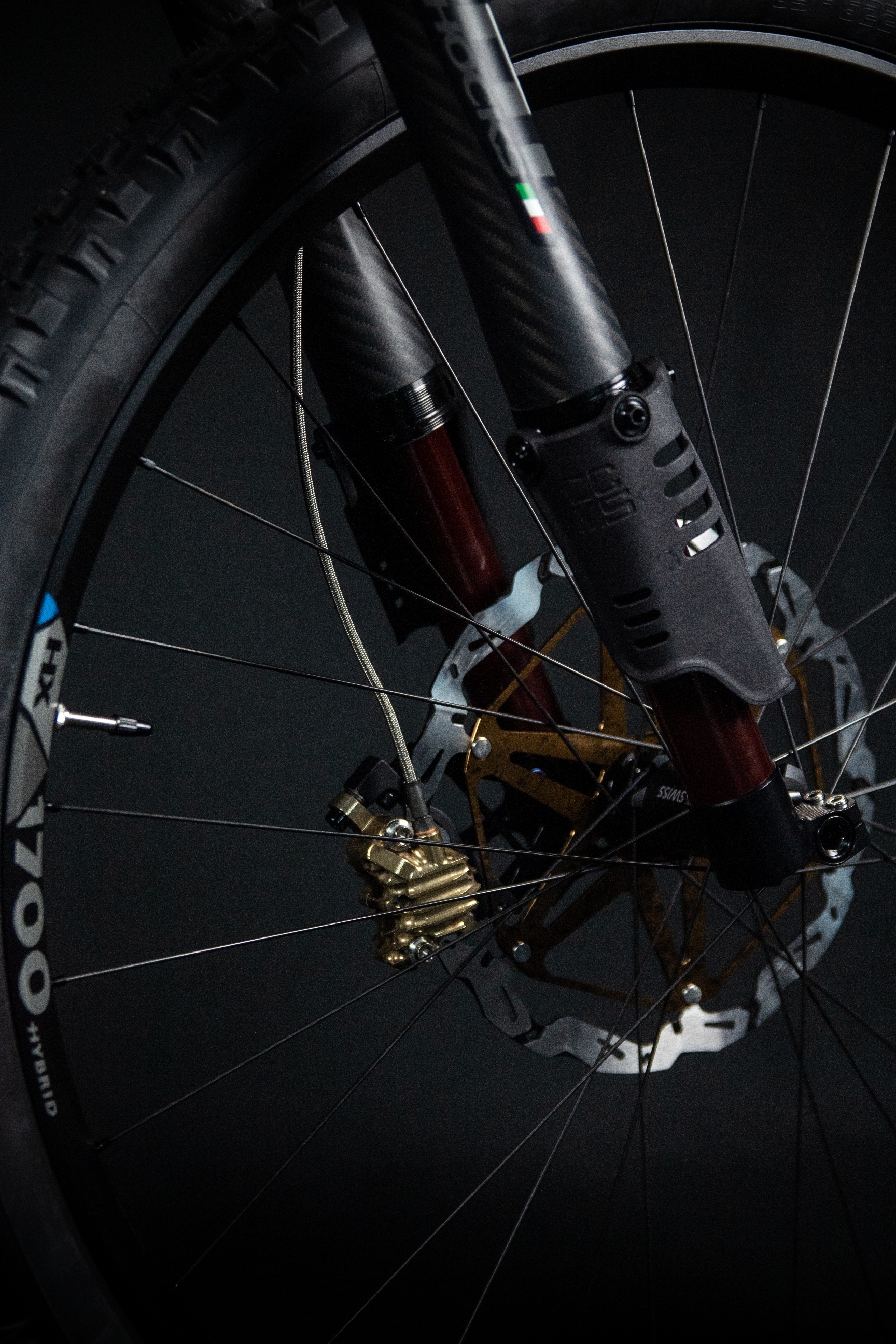

| Front brake disc | BCA 240 mm |
| Rear brake disc | BCA 270 mm |
| Shifter | Sram GX 1×12 electronic |
| Shift lever | Sram GX electronic |
| Crank brackets | FSA 170 mm – 15 mm offset |
| Sprocket | FSA Steel 34T – 4 bolts |

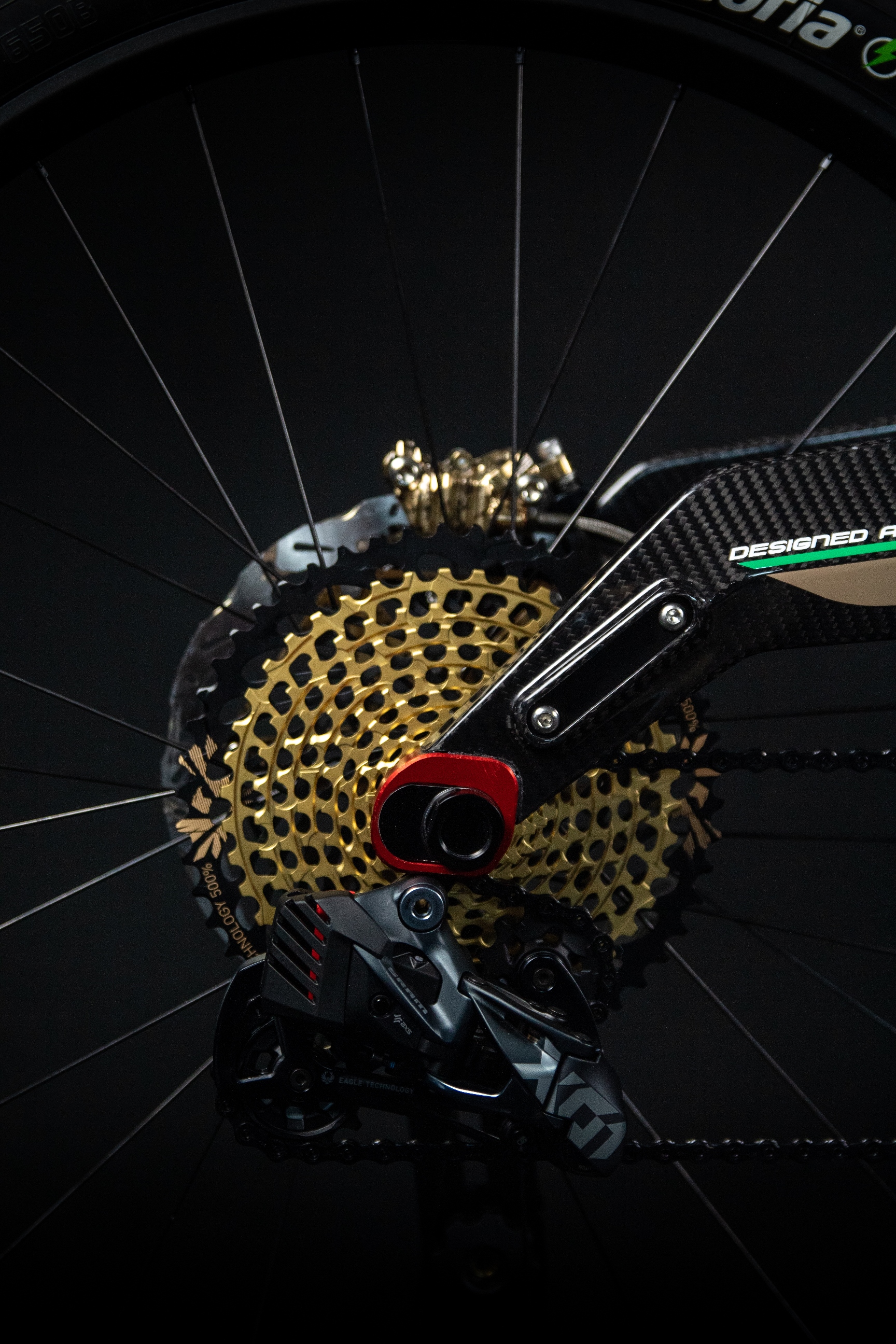

| Sprocket set | Sram X01 12 speed |
| Chain | Sram X01 12 |
| COCKPIT | |
| Handlebar | FSA COMET – 780 mm – 35mm |
| Handlebar stem | FSA COMET – 40/50/60 mm – 35mm |
| Grips | Herrmans locking black |
| Headset | Semi-integrated conical 1-1/8″ – 1.5″ |
| WHEELS | |
| Wheels | DT-SWISS HT SPLINE 29″-27.5″/29″ |
| Front tyre | Vittoria E-Mazza 29″x2.6″ / 27.5″x2.6″ |
| Rear tyre | Vittoria E-Mazza 29″x2.6″ / 27.5″x2.6″ |
Geometry
| M | L | |
| A [mm] | 640 | 666 |
| Al [mm] | 185 | 185 |
| A2[mm] | 460 | 481 |
| C [mm] | 138 | 138 |
| Cl [mm] | 595 | 595 |
| C2[mm] | 65° | 65° |
| Pl [mm] | 1289 | 1305 |
| P2[mm] | 472 | 488 |
| B[mm] | 642 | 669 |
| E [mm] | 470 | 482 |
