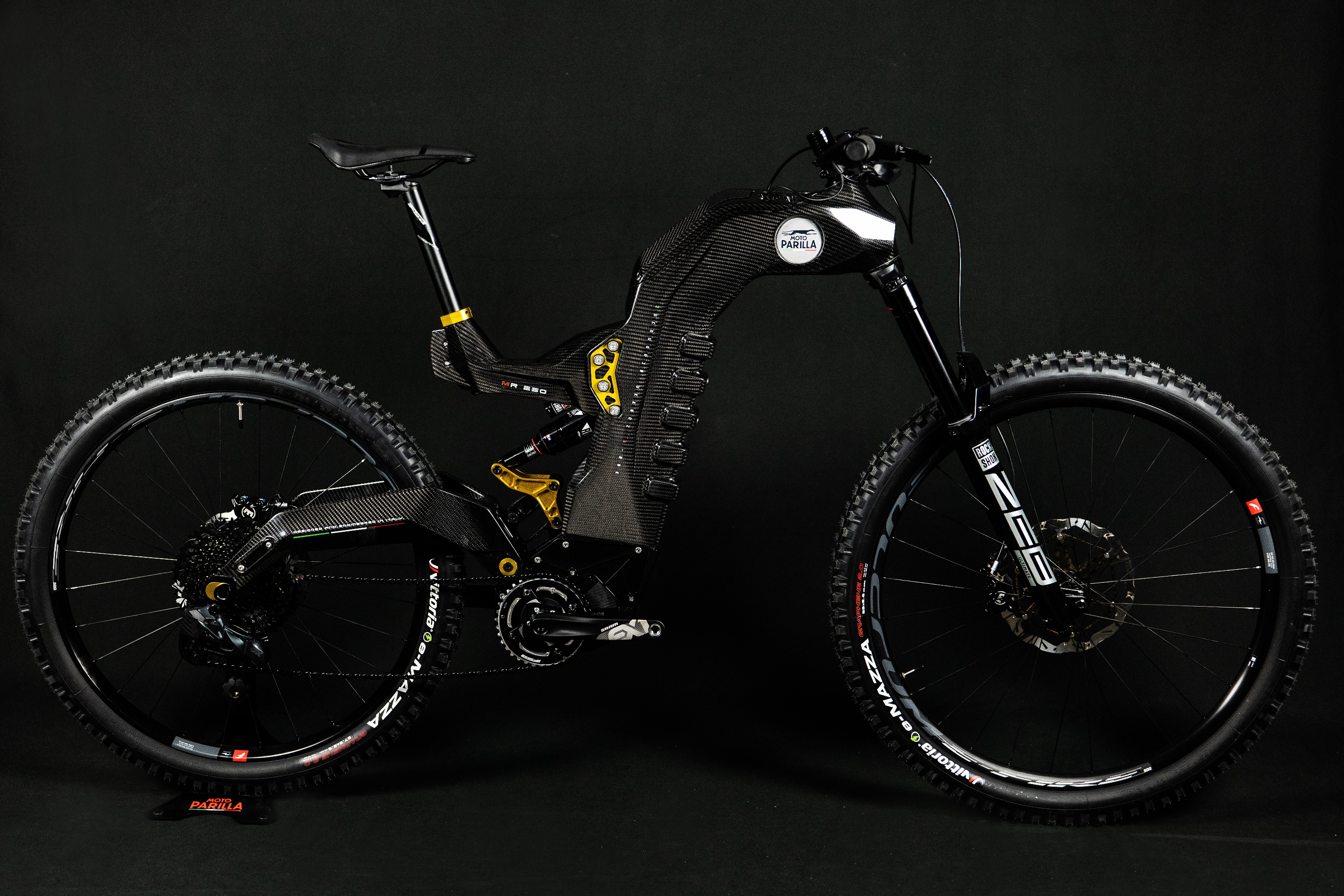

Tricolore M is the most racing expression of Moto Parilla. Created for long distances, thanks to the assistance levels of the Polini E-P3 + MX engine and the large 880 Wh battery, it is perfect for facing everyday challenges. To get the best riding feeling, the fork chosen is the 38mm ZEB SELECT with 180mm travel while the shock absorber is always Rock-Shox brand, the proven MONARCH PLUS. The integrated lights allow you to go out even in the darkest nights.
| FRAME | |

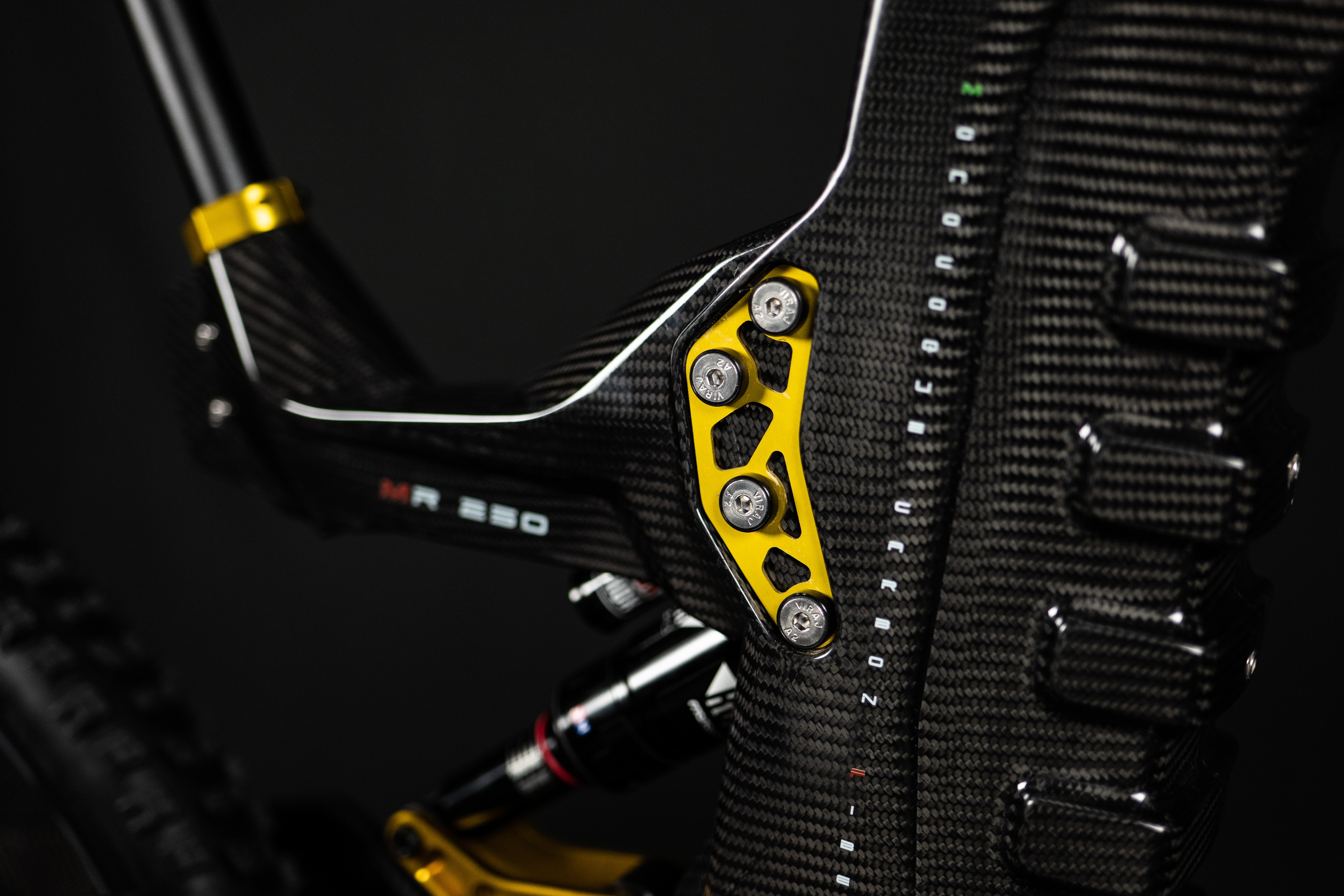

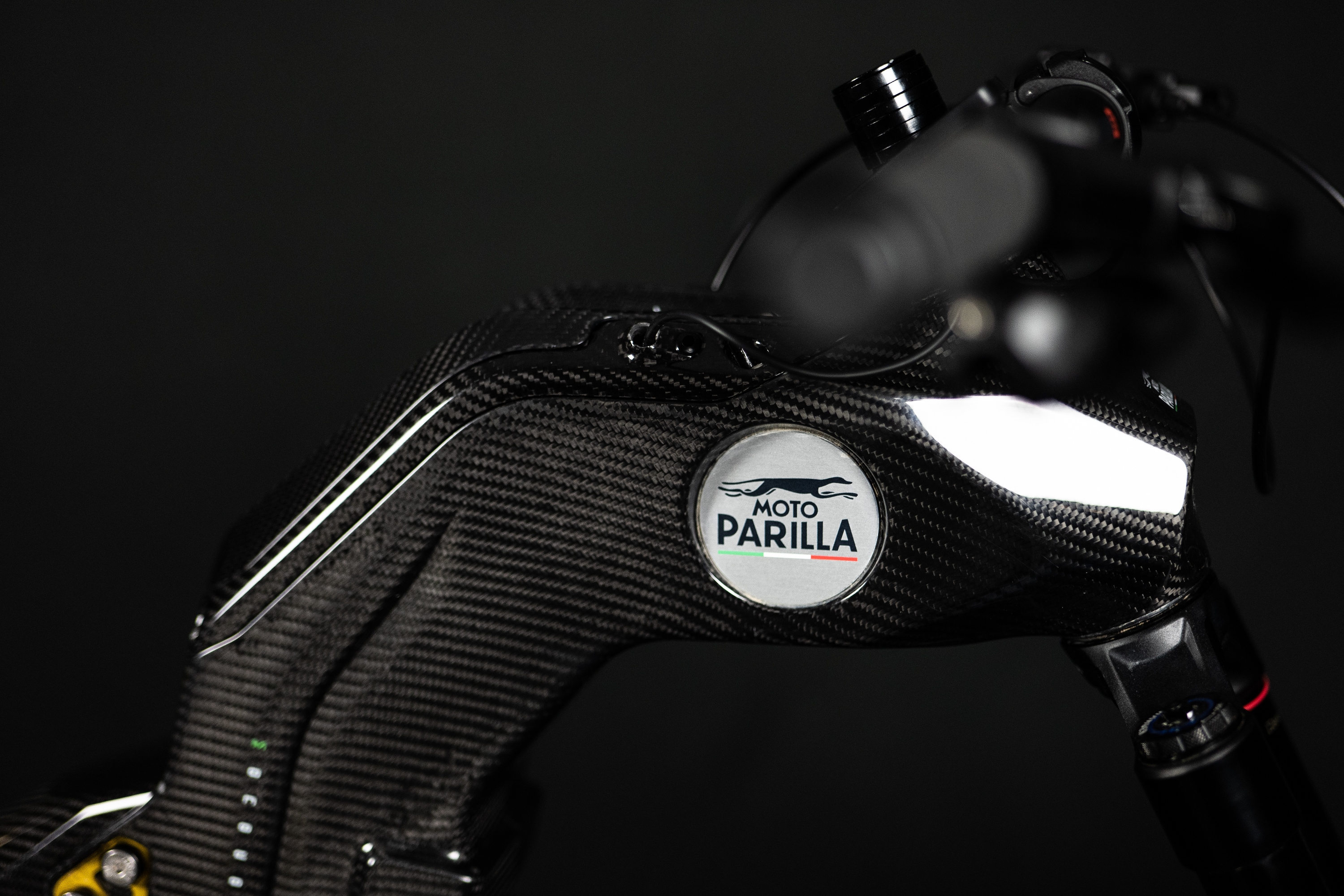

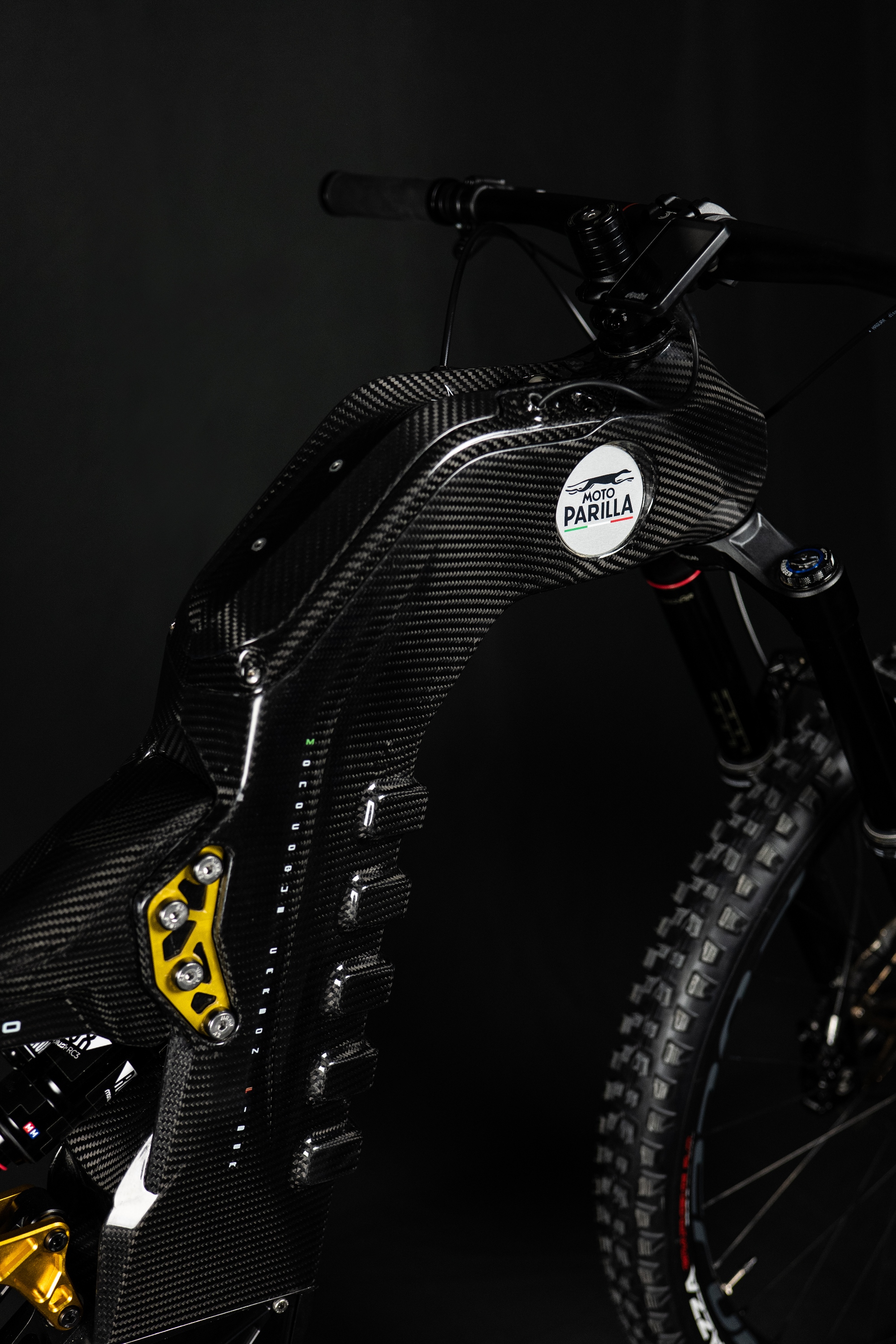

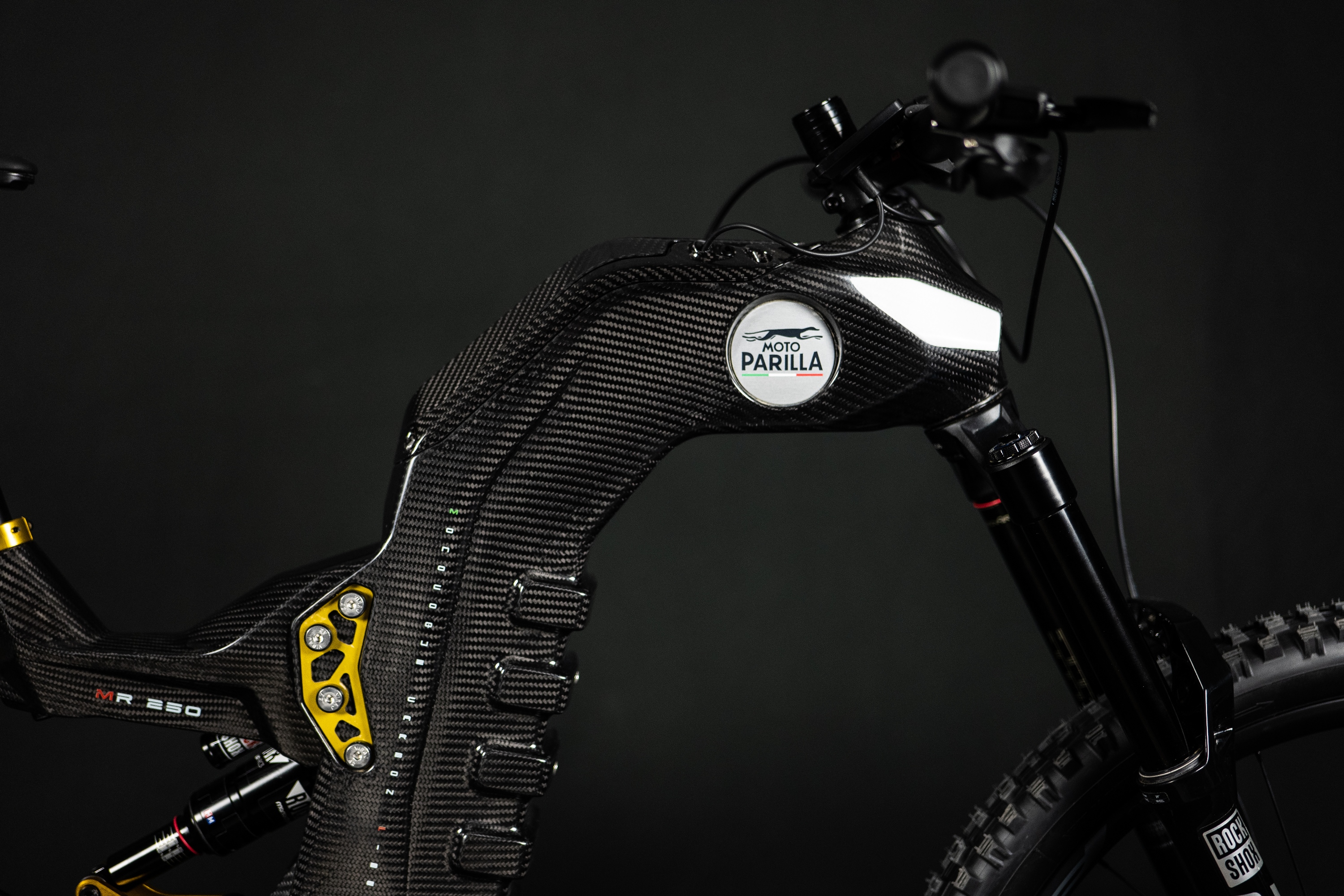

| Frame | Carbon fibre monocoque |

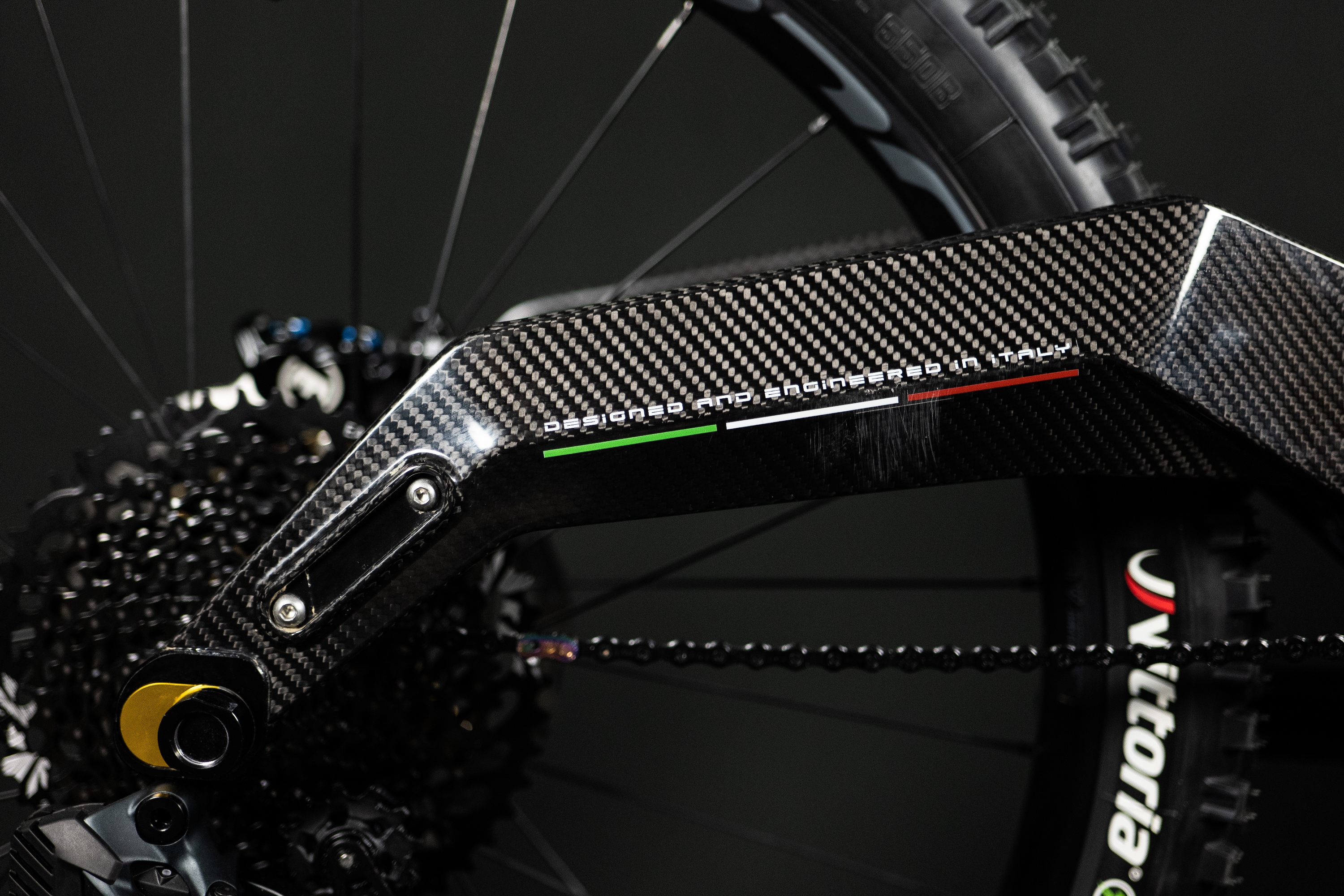

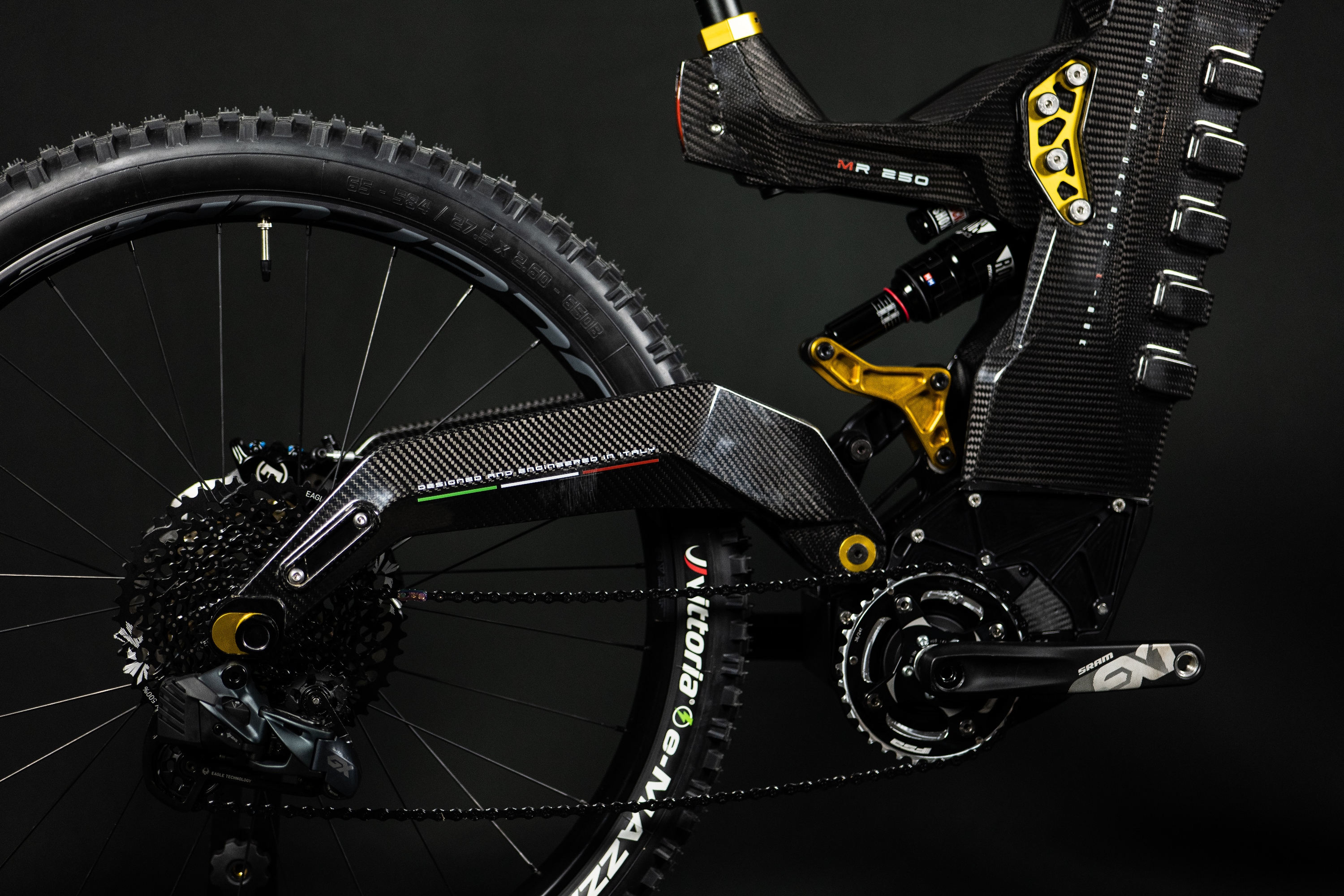

| Swingarm | Carbon fibre monocoque with aluminium reinforcements |

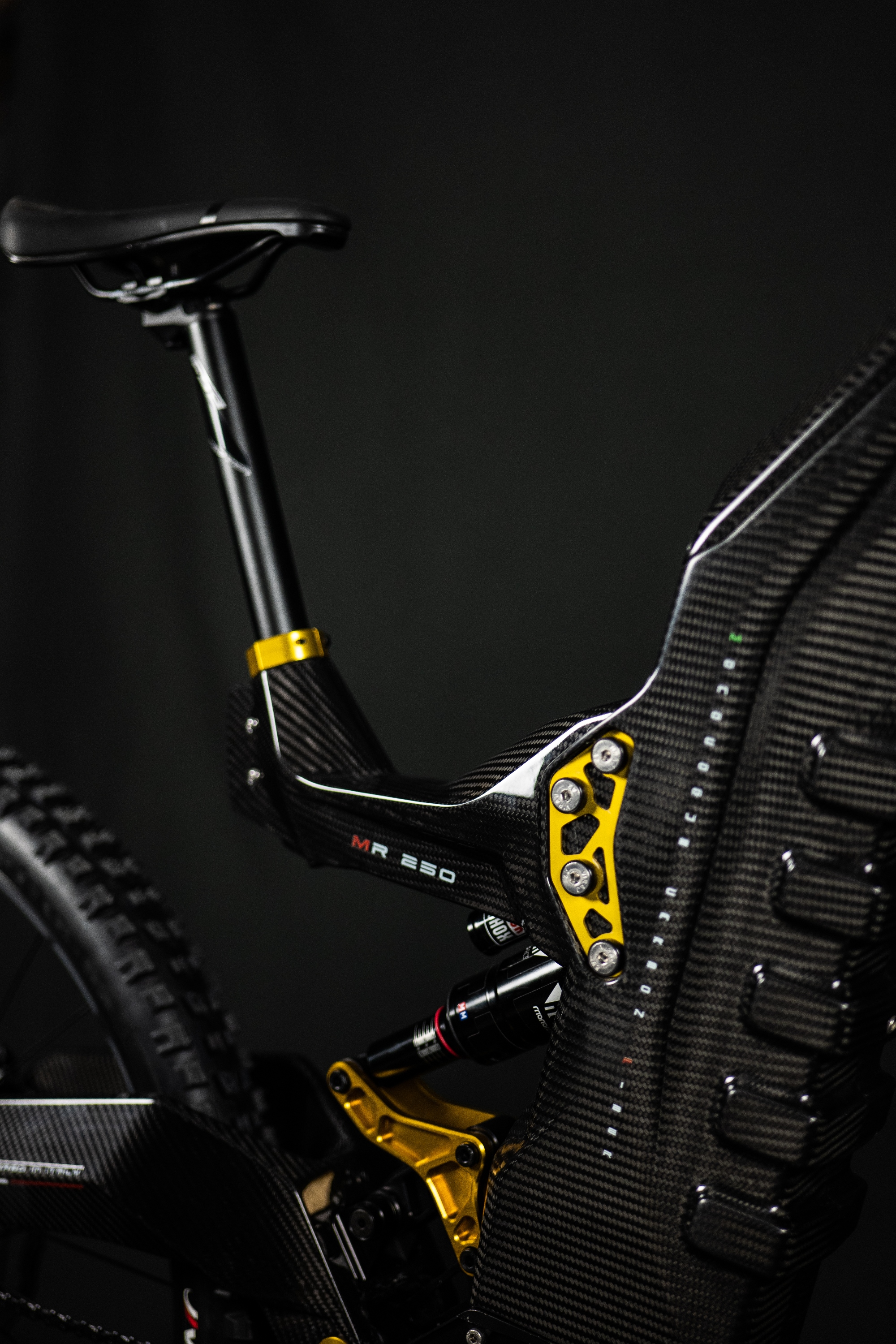

| Seat post frame | Carbon fibre monocoque |
| Fixed cover | Made of carbon fibre or linen fibre |
| Mobile cover | Made of carbon fibre or linen fibre |
| SUSPENSION and SADDLE | |

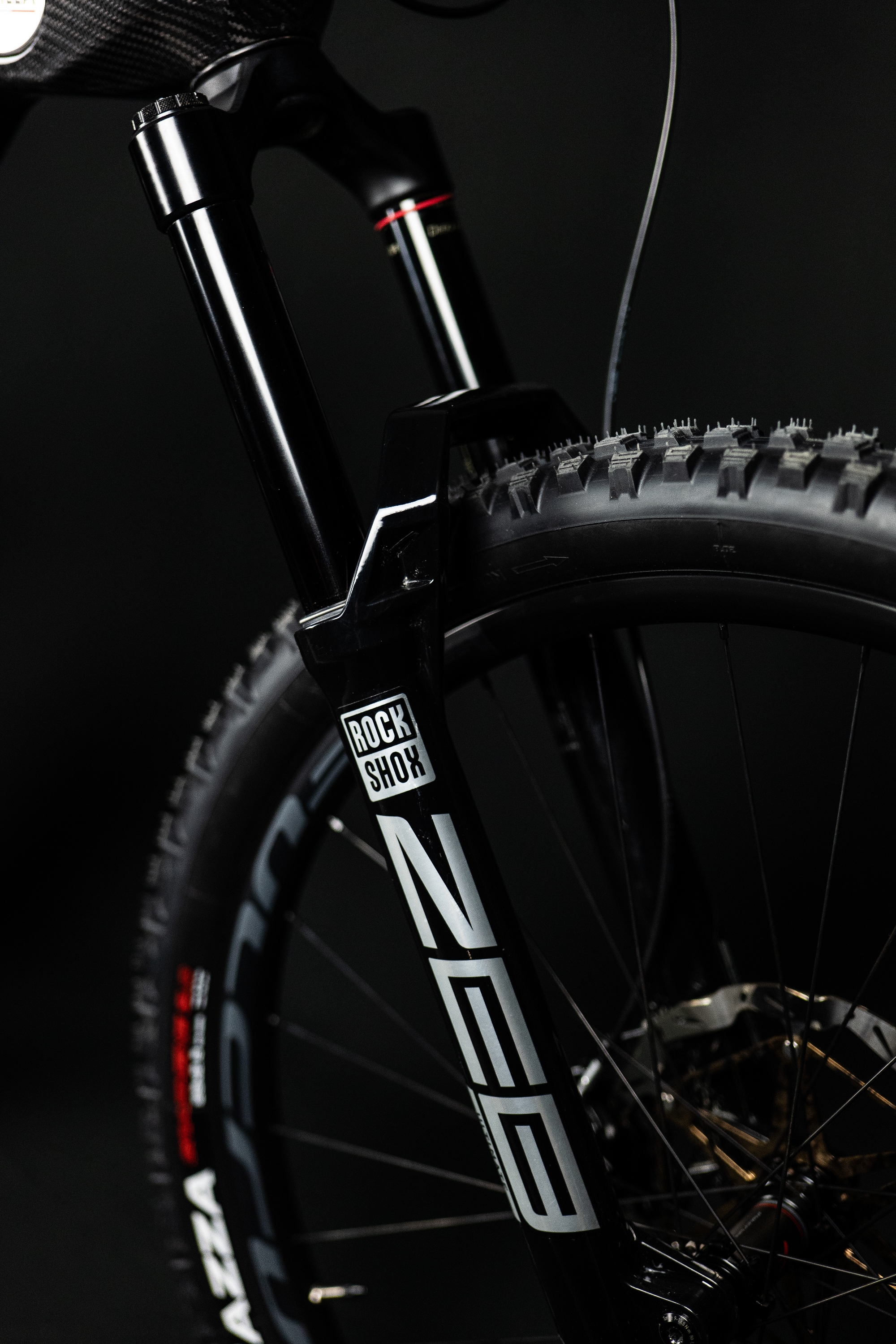

| Fork | Rock-Shox ZEB SELECT – 38mm – 180 mm |
| Rear Shock | Rock-Shox MONARCH PLUS – 210mmx55mm |

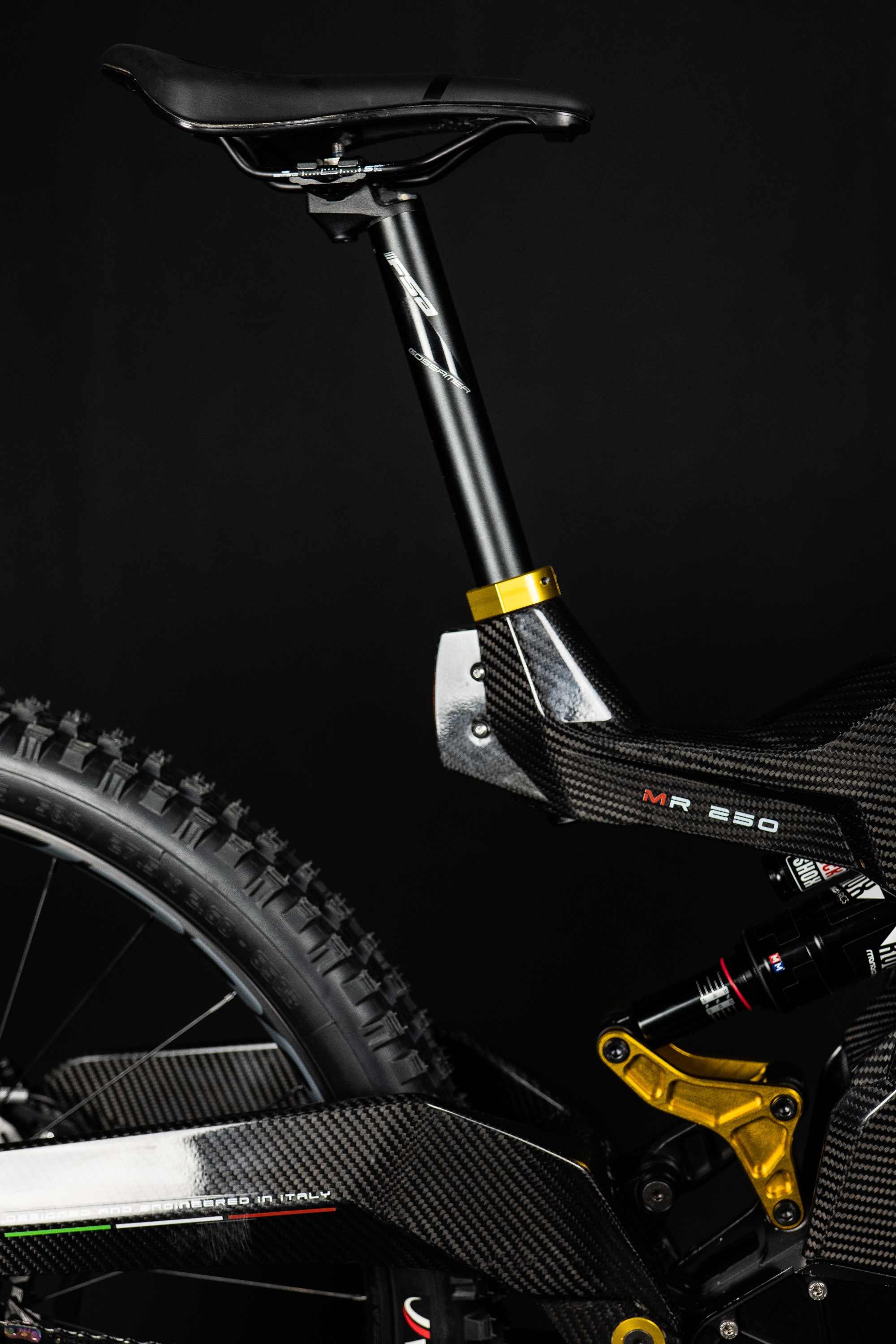

| Telescopic seat post | Ergotec Rigid – 31.6mm – 300 mm |
| Saddle | San Marco Ground Carbon Steel |
| POWERTRAIN GROUP | |

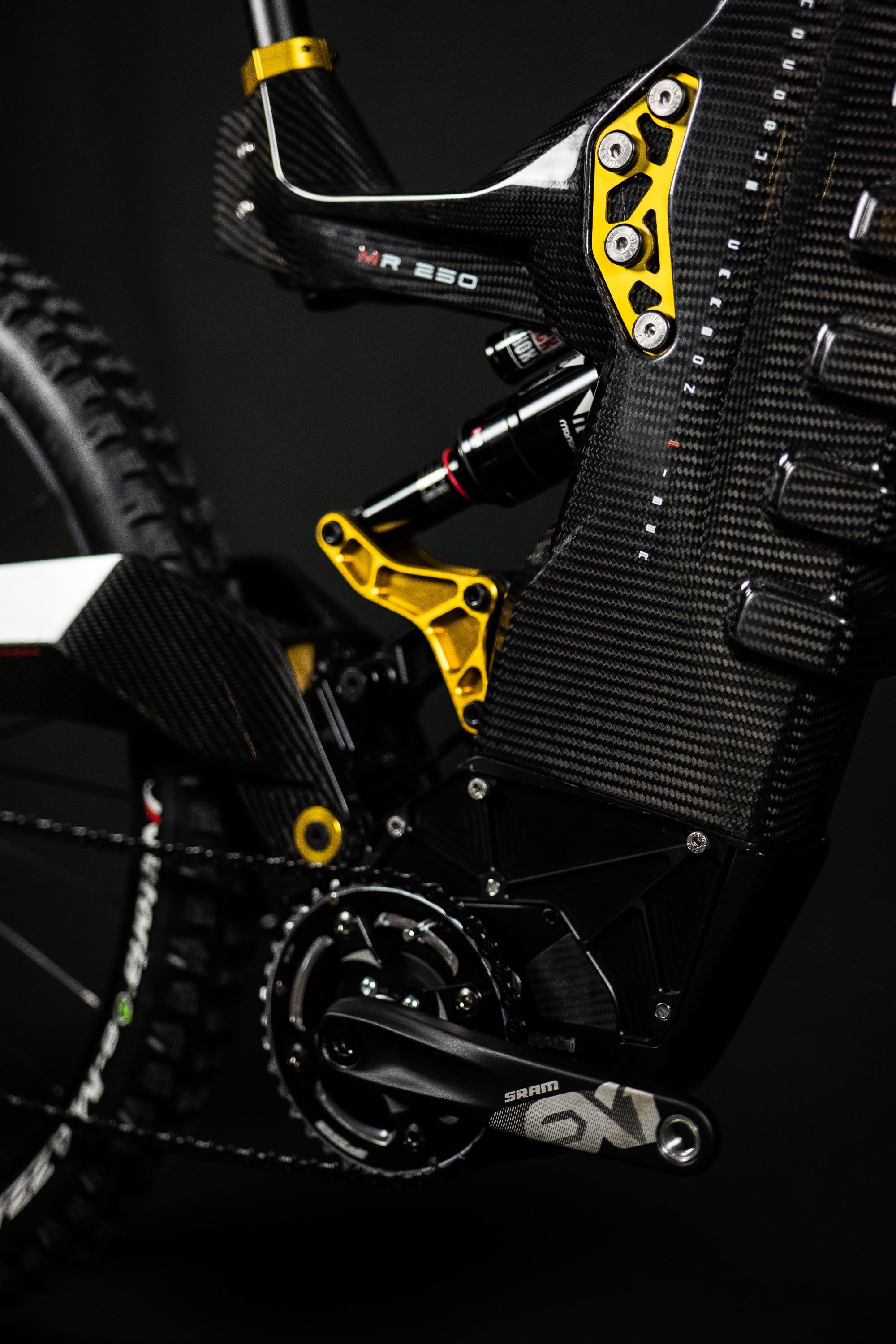

| Motor | Polini E-P3+ MX (250 Watt nominal – 600 Watt peak – 90 Nm – 36V – 5 mappings) |
| Battery | Polini 880Wh – 36V |
| Display | Polini TFT – colour – 2.5″ |
| Front light | Custom white led 12V – integrated in the frame |
| Rear light | Spanninga Pimento Red Led 12V – integrated in the seatpost frame |
| BRAKES AND DRIVETRAIN | |
| Brakes | Magura MT5 / MT7 Pro |
| Front brake disc | Magura 220 mm |

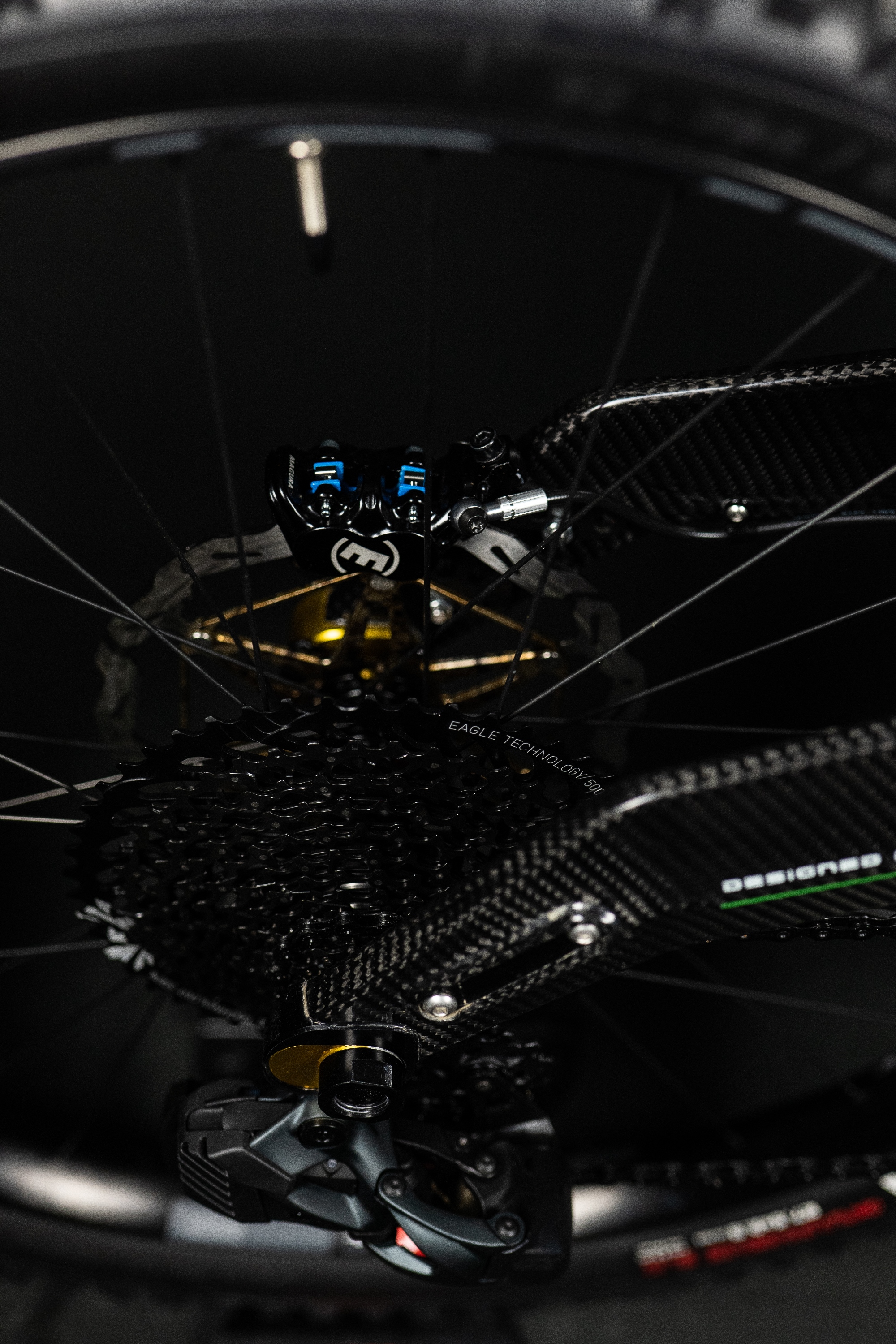

| Rear brake disc | Magura 203 mm |
| Shifter | Sram GX 1×12 electronic |
| Shift lever | Sram GX electronic |
| Crank brackets | FSA 170 mm – 15 mm offset |
| Sprocket | FSA Steel 34T – 4 bolts |
| Sprocket set | Sram GX 12 speed |
| Chain | Sram GX |
| COCKPIT | |

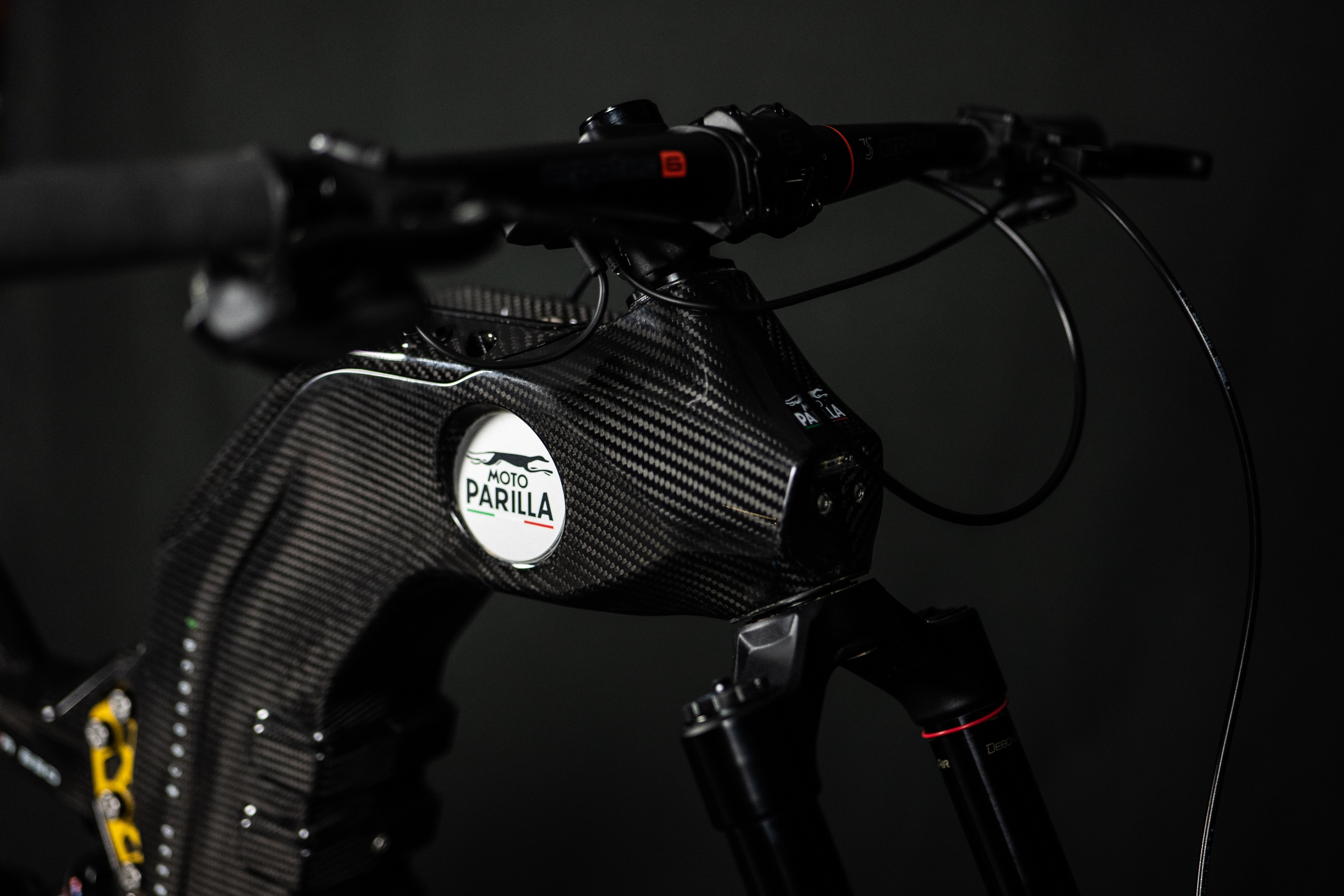

| Handlebar | Ergotec 6 Series – 800 mm – 35mm |
| Handlebar stem | Ergotec Series 6 – 60 mm – 35 mm |
| Grips | Herrmans locking black |
| Headset | Semi-integrated taper 1-1/8″ – 1.5″ |
| WHEELS | |
| Wheels | Fulcrum E-Fire 700 29″-27.5″/29″ |
| Front tyre | Vittoria E-Mazza 29″x2.6″ / 27.5″x2.6″ |
| Rear tyre | Vittoria E-Mazza 29″x2.6″ / 27.5″x2.6″ |
| M | L | |
| A [mm] | 640 | 666 |
| Al [mm] | 185 | 185 |
| A2[mm] | 460 | 481 |
| C [mm] | 138 | 138 |
| Cl [mm] | 595 | 595 |
| C2[mm] | 65° | 65° |
| Pl [mm] | 1289 | 1305 |
| P2[mm] | 472 | 488 |
| B[mm] | 642 | 669 |
| E [mm] | 470 | 482 |
